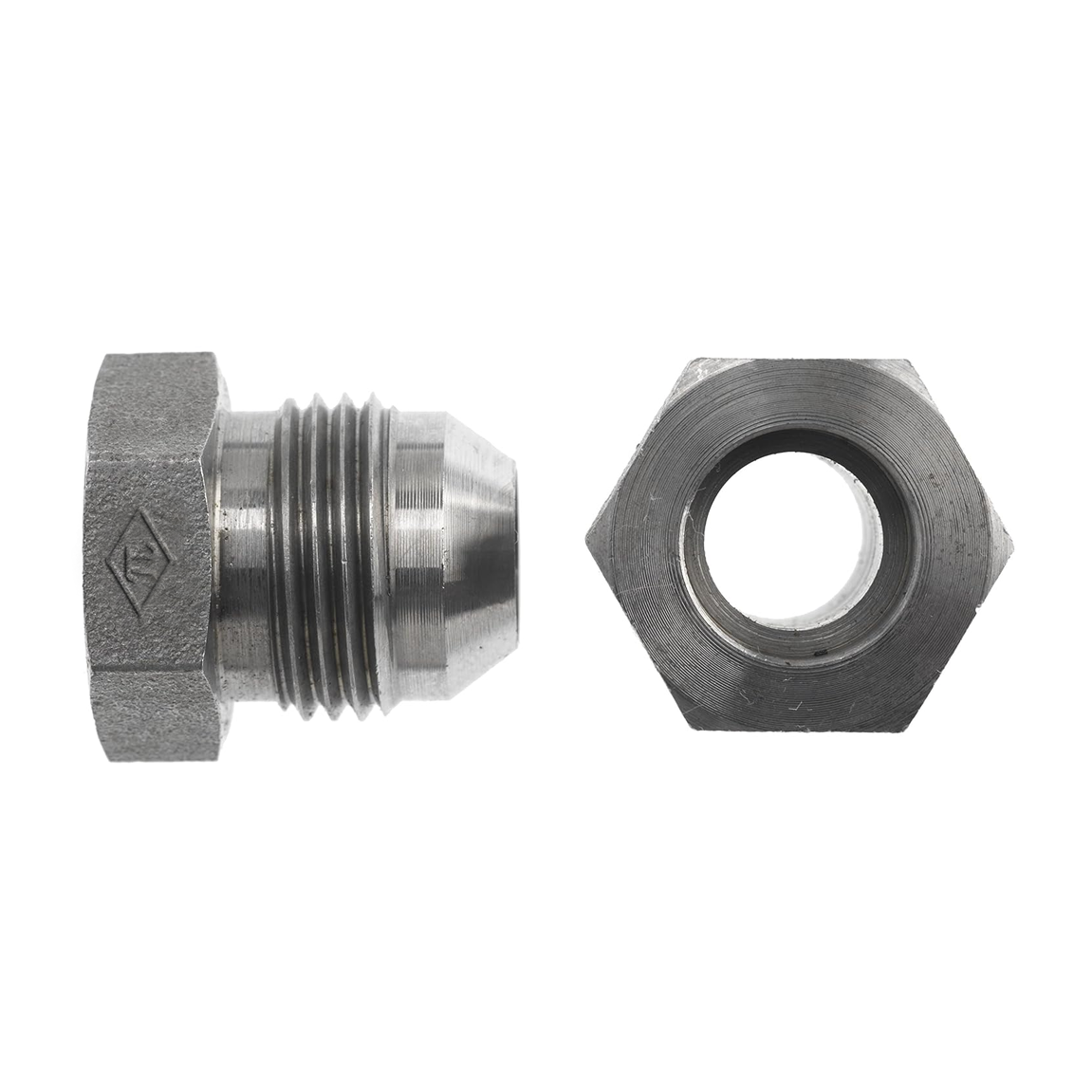

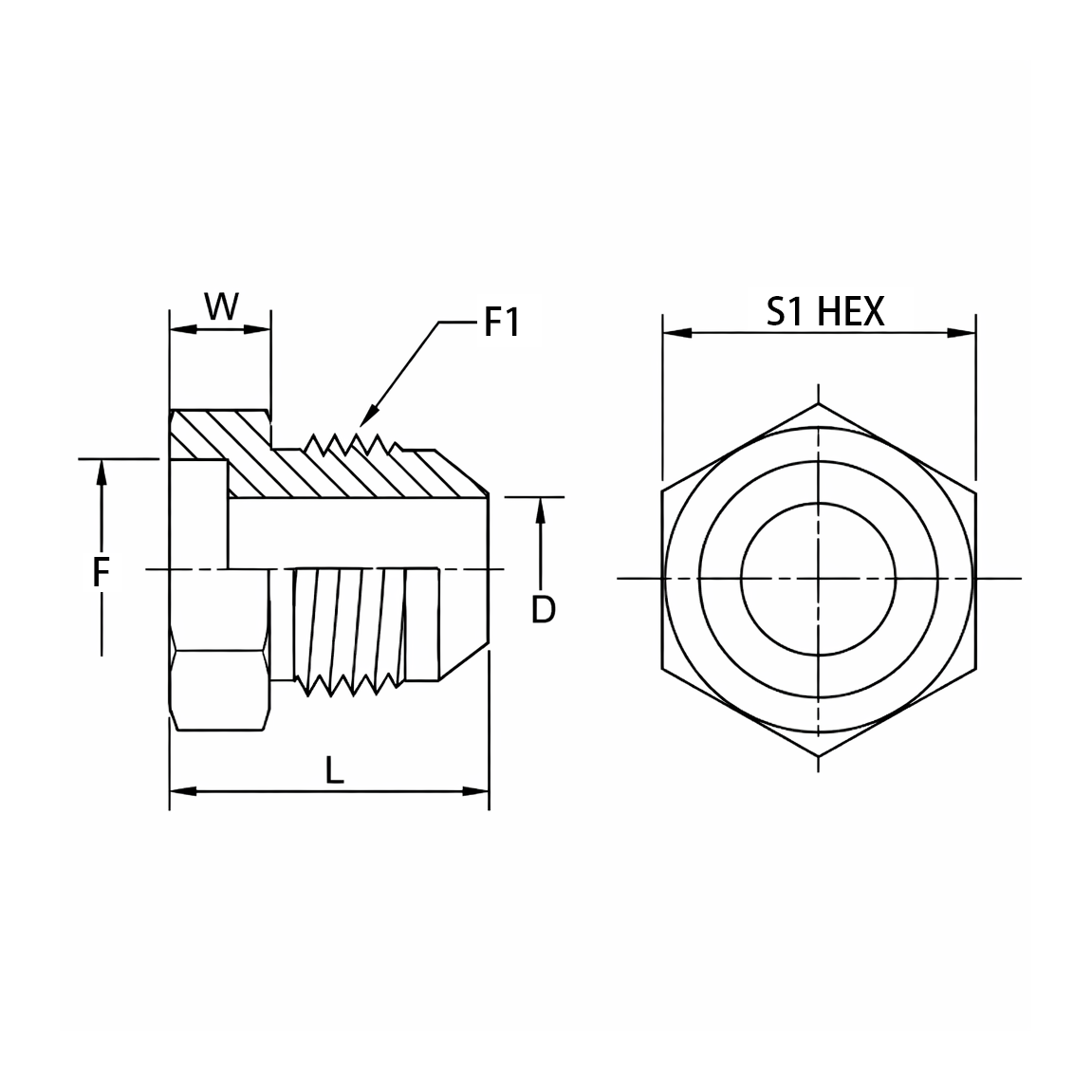

0403 Tube Bore x Male JIC
SAE J514 Tube Bore Male Flared Connector | Tube Bore x Male JIC
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 TUBE OD | PRIMARY MATERIAL |
|---|---|---|---|
| 0403-04-03-SS | 1/4" | 3/16" | Stainless Steel |
| 0403-04-04 | 1/4" | 1/4" | Steel |
| 0403-04-04-SS | 1/4" | 1/4" | Stainless Steel |
| 0403-05-04 | 5/16" | 1/4" | Steel |
| 0403-05-05 | 5/16" | 5/16" | Steel |
| 0403-05-05-SS | 5/16" | 5/16" | Stainless Steel |
| 0403-06-06 | 3/8" | 3/8" | Steel |
| 0403-06-06-SS | 3/8" | 3/8" | Stainless Steel |
| 0403-06-08 | 3/8" | 1/2" | Steel |
| 0403-06-08-SS | 3/8" | 1/2" | Stainless Steel |
| 0403-08-06 | 1/2" | 3/8" | Steel |
| 0403-08-08 | 1/2" | 1/2" | Steel |
| 0403-08-08-SS | 1/2" | 1/2" | Stainless Steel |
| 0403-08-10 | 1/2" | 5/8" | Steel |
| 0403-10-08 | 5/8" | 1/2" | Steel |
| 0403-10-10 | 5/8" | 5/8" | Steel |
| 0403-10-10-SS | 5/8" | 5/8" | Stainless Steel |
| 0403-10-12 | 5/8" | 3/4" | Steel |
| 0403-12-08 | 3/4" | 1/2" | Steel |
| 0403-12-10 | 3/4" | 5/8" | Steel |
| 0403-12-12 | 3/4" | 3/4" | Steel |
| 0403-12-12-SS | 3/4" | 3/4" | Stainless Steel |
| 0403-12-14-SS | 3/4" | 7/8" | Stainless Steel |
| 0403-14-12-SS | 7/8" | 3/4" | Stainless Steel |
| 0403-14-14 | 7/8" | 7/8" | Steel |
| 0403-16-12 | 1" | 3/4" | Steel |
| 0403-16-16 | 1" | 1" | Steel |
| 0403-16-16-SS | 1" | 1" | Stainless Steel |
| 0403-16-20 | 1" | 1-1/4" | Steel |
| 0403-20-16 | 1-1/4" | 1" | Steel |
| 0403-20-16-SS | 1-1/4" | 1" | Stainless Steel |
| 0403-20-20 | 1-1/4" | 1-1/4" | Steel |
| 0403-20-20-SS | 1-1/4" | 1-1/4" | Stainless Steel |
| 0403-20-24 | 1-1/4" | 1-1/2" | Steel |
| 0403-20-24-SS | 1-1/4" | 1-1/2" | Stainless Steel |
| 0403-24-20 | 1-1/2" | 1-1/4" | Steel |
| 0403-24-20-SS | 1-1/2" | 1-1/4" | Stainless Steel |
| 0403-24-24 | 1-1/2" | 1-1/2" | Steel |
| 0403-24-24-SS | 1-1/2" | 1-1/2" | Stainless Steel |
| 0403-32-24-SS | 2" | 1-1/2" | Stainless Steel |
| 0403-32-32 | 2" | 2" | Steel |
| 0403-32-32-SS | 2" | 2" | Stainless Steel |
| 0403-40-40-SS | 2-1/2" | 2-1/2" | Stainless Steel |
Description
SAE J514 Tube Bore Male Flared Connector | Tube Bore x Male JIC
Additional information
| Shape | Straight |
| Side 1 Connection Type | Bore |
| Side 2 Connection Type | MetaobjectDrop |
