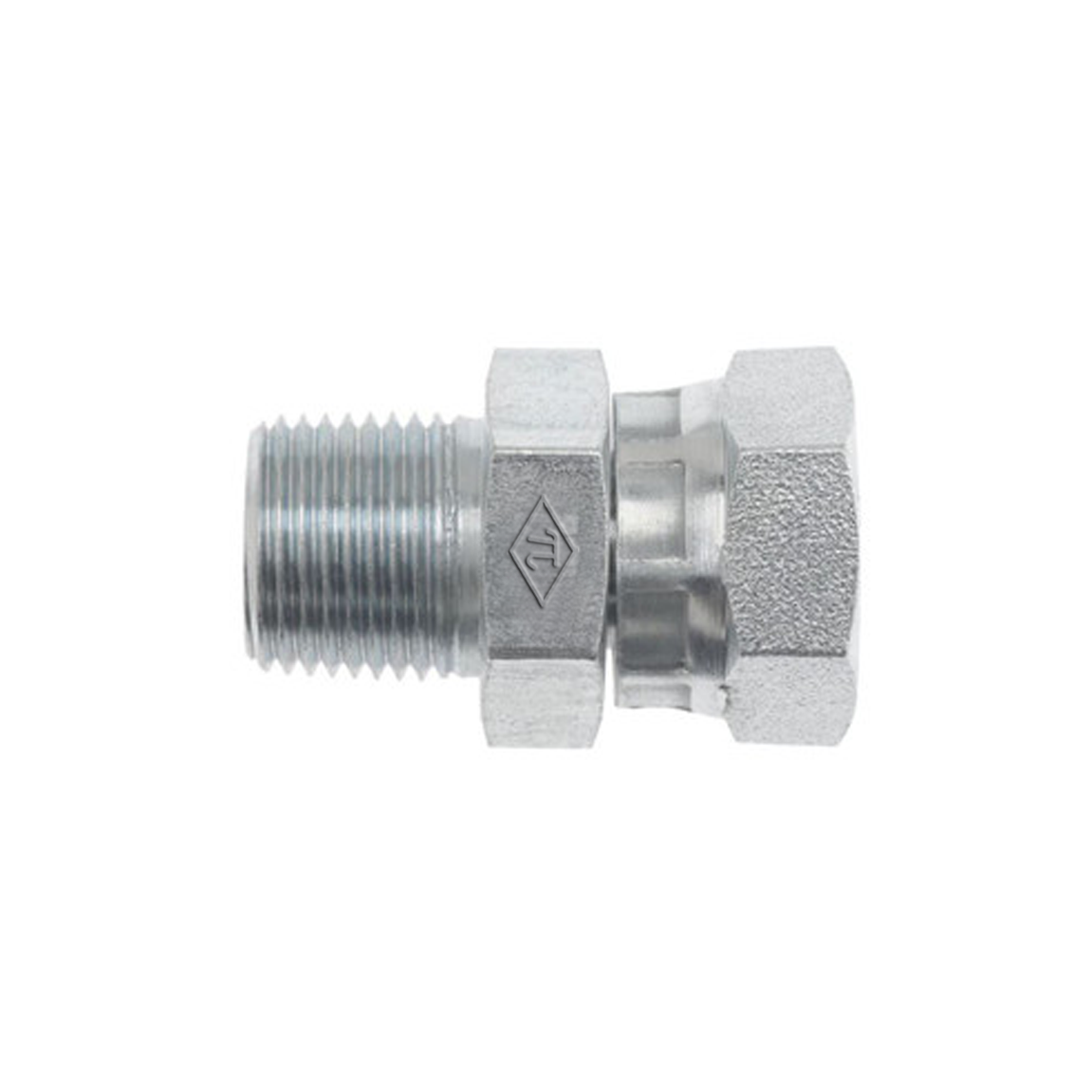

1404-RESTRICTED Male Pipe x Female Pipe Swivel
SAE J514 NPSM Swivel Restricted Male Connector | Male Pipe x Female Pipe Swivel
For limiting flow and connecting pipe to an NPSM straight-thread using a swivel for alignment and without requiring pipe sealant.
Connection Details
| PART NUMBER ↑ | SIDE 1 PIPE SIZE | SIDE 2 THREAD TYPE | RESTRICTED ORIFICE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|---|
| 1404-02-02-BLANK | 1/8" | 1/8-27 NPSM | - | Steel | Trivalent Zinc |
| 1404-04-04-BLANK | 1/4" | 1/4-18 NPSM | - | Steel | Trivalent Zinc |
| 1404-04-04-R.015 | - | - | - | Steel | Trivalent Zinc |
| 1404-04-04-R.020 | - | - | - | Steel | Trivalent Zinc |
| 1404-04-04-R.031 | - | - | - | Steel | Trivalent Zinc |
| 1404-04-04-R.040 | - | - | - | Steel | Trivalent Zinc |
| 1404-04-04-R.062 | - | - | - | Steel | Trivalent Zinc |
| 1404-04-04-R.070 | - | - | - | Steel | Trivalent Zinc |
| 1404-04-04-R.090 | - | - | - | Steel | Trivalent Zinc |
| 1404-06-04-BLANK | 3/8" | 1/4-18 NPSM | - | Steel | Trivalent Zinc |
| 1404-06-04-R.063 | - | - | - | Steel | Trivalent Zinc |
| 1404-06-06-BLANK | 3/8" | 3/8-18 NPSM | - | Steel | Trivalent Zinc |
| 1404-06-06-R.031 | - | - | - | Steel | Trivalent Zinc |
| 1404-06-06-R.055 | - | - | - | Steel | Trivalent Zinc |
| 1404-06-06-R.062 | - | - | - | Steel | Trivalent Zinc |
| 1404-06-06-R.078 | - | - | - | Steel | Trivalent Zinc |
| 1404-06-06-R.094 | - | - | - | Steel | Trivalent Zinc |
| 1404-06-06-R.095 | - | - | - | Steel | Trivalent Zinc |
| 1404-06-08-BLANK | 3/8" | 1/2-14 NPSM | - | Steel | Trivalent Zinc |
| 1404-08-08-BLANK | 1/2" | 1/2-14 NPSM | - | Steel | Trivalent Zinc |
| 1404-08-08-R.031 | - | - | - | Steel | Trivalent Zinc |
| 1404-08-08-R.040 | - | - | - | Steel | Trivalent Zinc |
| 1404-08-08-R.062 | - | - | - | Steel | Trivalent Zinc |
| 1404-08-08-R.0625 | - | - | - | Steel | Trivalent Zinc |
| 1404-08-08-R.094 | - | - | - | Steel | Trivalent Zinc |
| 1404-12-12-BLANK | 3/4" | 3/4-14 NPSM | - | Steel | Trivalent Zinc |
Description
SAE J514 NPSM Swivel Restricted Male Connector | Male Pipe x Female Pipe Swivel
For limiting flow and connecting pipe to an NPSM straight-thread using a swivel for alignment and without requiring pipe sealant.
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | MetaobjectDrop |
