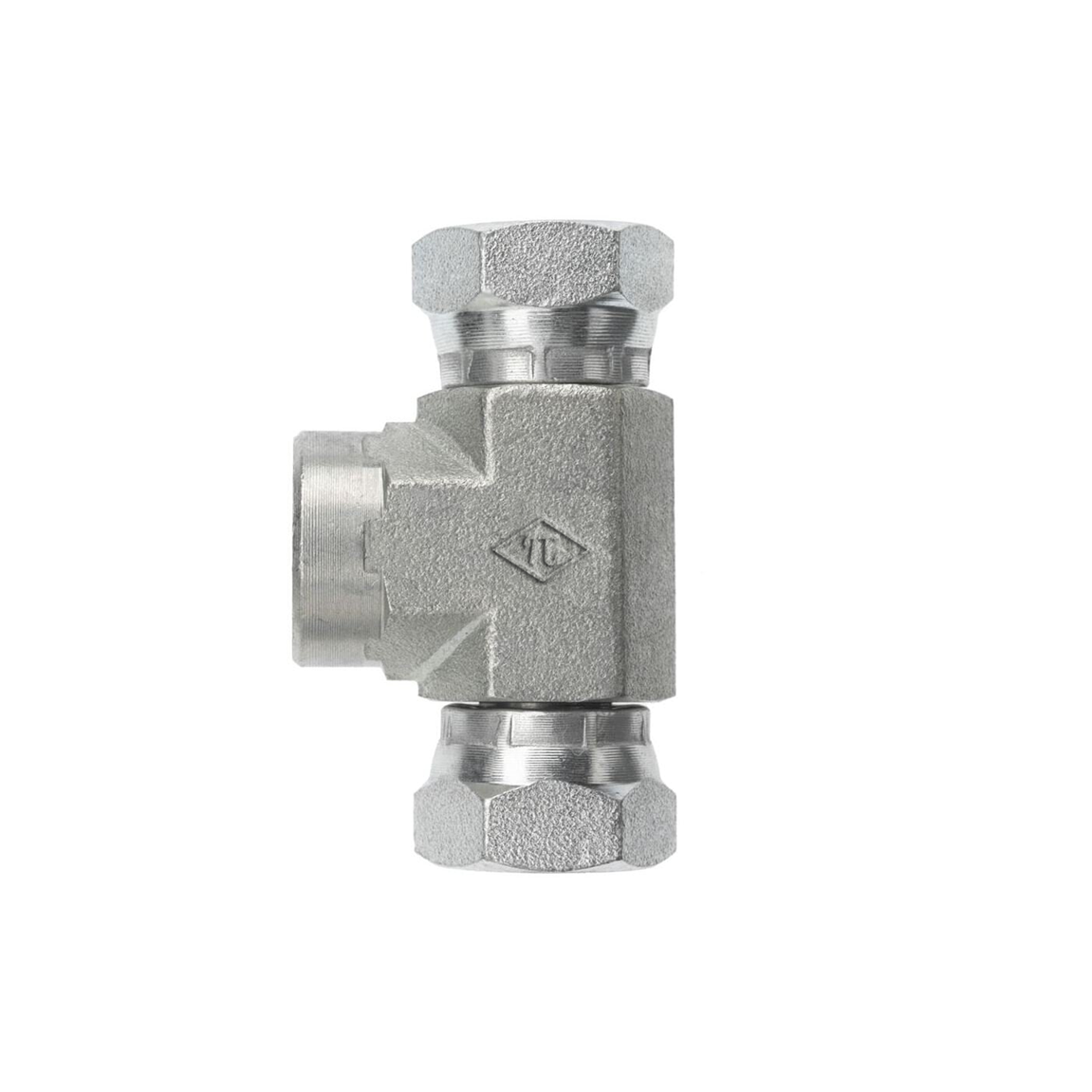

1602-FG Female Pipe x Female PipeSwivel x Female Pipe Swivel
SAE J514 NPSM Swivel Female Branch Tee | Female Pipe x Female Pipe Swivel x Female Pipe Swivel
For branching pipe to two NPSM straight-threads using swivels for alignment without requiring pipe sealant.
Connection Details
| PART NUMBER ↑ | SIDE 1 PIPE SIZE | SIDE 2 THREAD TYPE | SIDE 3 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|---|
| 1602-02-02-02-FG | 1/8" | 1/8-27 NPSM | 1/8-27 NPSM | Steel | Trivalent Zinc |
| 1602-04-04-04-FG | 1/4" | 1/4-18 NPSM | 1/4-18 NPSM | Steel | Trivalent Zinc |
| 1602-06-04-04-FG | 3/8" | 1/4-18 NPSM | 1/4-18 NPSM | Steel | Trivalent Zinc |
| 1602-06-06-06-FG | 3/8" | 3/8-18 NPSM | 3/8-18 NPSM | Steel | Trivalent Zinc |
| 1602-08-06-06-FG | 1/2" | 3/8-18 NPSM | 3/8-18 NPSM | Steel | Trivalent Zinc |
| 1602-08-08-08-FG | 1/2" | 1/2-14 NPSM | 1/2-14 NPSM | Steel | Trivalent Zinc |
| 1602-12-08-08-FG | 3/4" | 1/2-14 NPSM | 1/2-14 NPSM | Steel | Trivalent Zinc |
| 1602-12-12-12-FG | 3/4" | 3/4-14 NPSM | 3/4-14 NPSM | Steel | Trivalent Zinc |
| 1602-16-16-16-FG | 1" | 1-11-1/2 NPSM | 1-11-1/2 NPSM | Steel | Trivalent Zinc |
| 1602-20-20-20-FG | 1-1/4" | 1-1/4-11-1/2 NPSM | 1-1/4-11-1/2 NPSM | Steel | Trivalent Zinc |
Description
SAE J514 NPSM Swivel Female Branch Tee | Female Pipe x Female Pipe Swivel x Female Pipe Swivel
For branching pipe to two NPSM straight-threads using swivels for alignment without requiring pipe sealant.
Additional information
| Shape | Tee |
| Side 1 Connection Type | Female NPTF |
| Side 2 Connection Type | MetaobjectDrop |
| Side 3 Connection Type | MetaobjectDrop |
