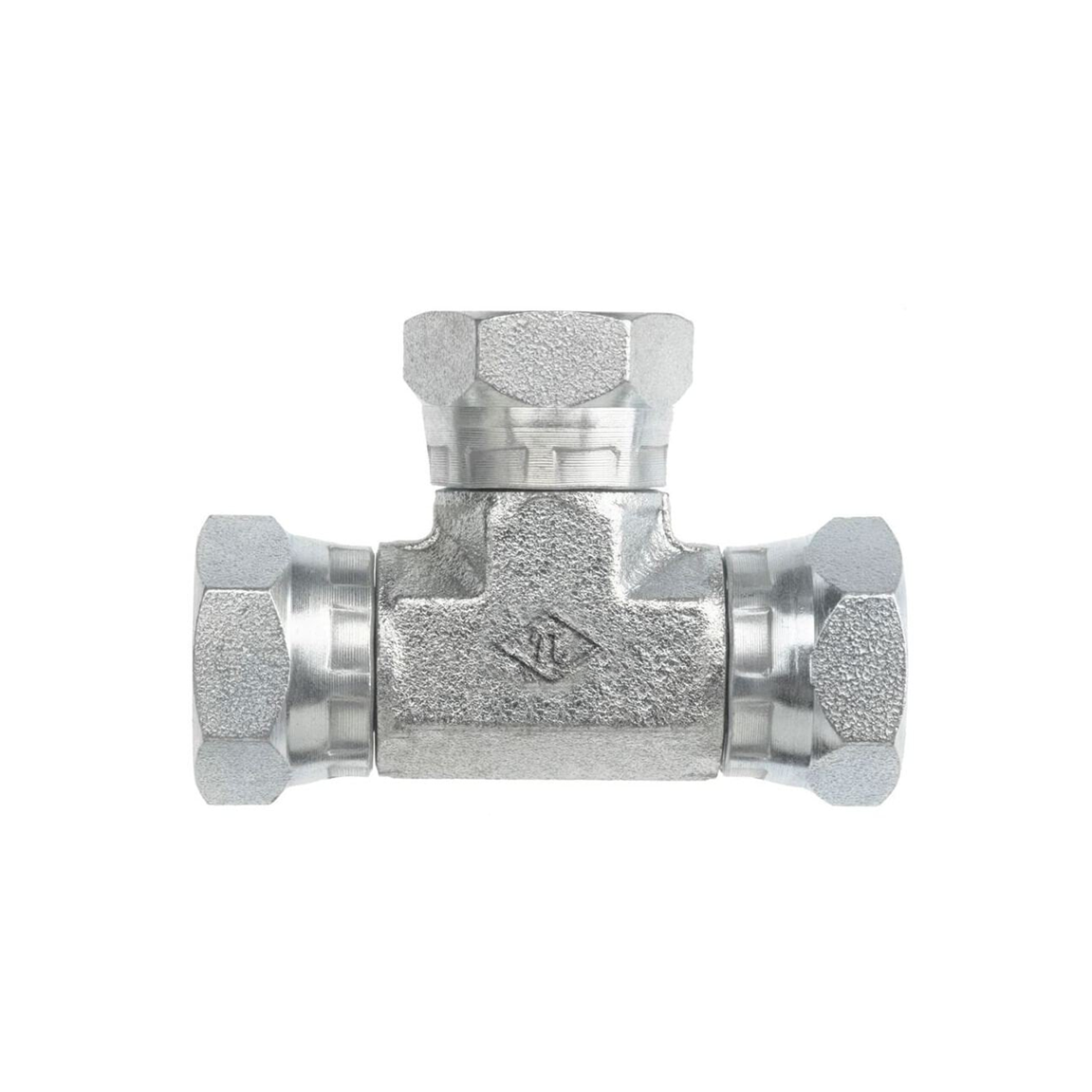

1603-FG Female Pipe Swivel x FemalePipe Swivel x Female Pipe Swivel
SAE J514 NPSM Swivel Union Tee | Female Pipe Swivel x Female Pipe Swivel x Female Pipe Swivel
For joining three NPSM straight-thread connections in a tee configuration using swivels for alignment.
Connection Details
| PART NUMBER ↑ | SIDE 1 THREAD TYPE | SIDE 2 THREAD TYPE | SIDE 3 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|---|
| 1603-02-02-02-FG | 1/8-27 NPSM | 1/8-27 NPSM | 1/8-27 NPSM | Steel | Trivalent Zinc |
| 1603-04-04-04-FG | 1/4-18 NPSM | 1/4-18 NPSM | 1/4-18 NPSM | Steel | Trivalent Zinc |
| 1603-04-04-04-SS | 1/4-18 NPSM | 1/4-18 NPSM | 1/4-18 NPSM | Stainless Steel | - |
| 1603-06-06-06-FG | 3/8-18 NPSM | 3/8-18 NPSM | 3/8-18 NPSM | Steel | Trivalent Zinc |
| 1603-06-06-06-SS | 3/8-18 NPSM | 3/8-18 NPSM | 3/8-18 NPSM | Stainless Steel | - |
| 1603-08-08-08-FG | 1/2-14 NPSM | 1/2-14 NPSM | 1/2-14 NPSM | Steel | Trivalent Zinc |
| 1603-12-12-12-FG | 3/4-14 NPSM | 3/4-14 NPSM | 3/4-14 NPSM | Steel | Trivalent Zinc |
| 1603-16-16-16-FG | 1-11-1/2 NPSM | 1-11-1/2 NPSM | 1-11-1/2 NPSM | Steel | Trivalent Zinc |
| 1603-20-20-20-FG | 1-1/4-11-1/2 NPSM | 1-1/4-11-1/2 NPSM | 1-1/4-11-1/2 NPSM | Steel | Trivalent Zinc |
| 1603-24-24-24-FG | 1-1/2-11-1/2 NPSM | 1-1/2-11-1/2 NPSM | 1-1/2-11-1/2 NPSM | Steel | Trivalent Zinc |
Description
SAE J514 NPSM Swivel Union Tee | Female Pipe Swivel x Female Pipe Swivel x Female Pipe Swivel
For joining three NPSM straight-thread connections in a tee configuration using swivels for alignment.
Additional information
| Shape | Tee |
| Side 1 Connection Type | Female NPSM Swivel |
| Side 2 Connection Type | MetaobjectDrop |
| Side 3 Connection Type | MetaobjectDrop |
