1703 Male JIC x Code 61 Flange

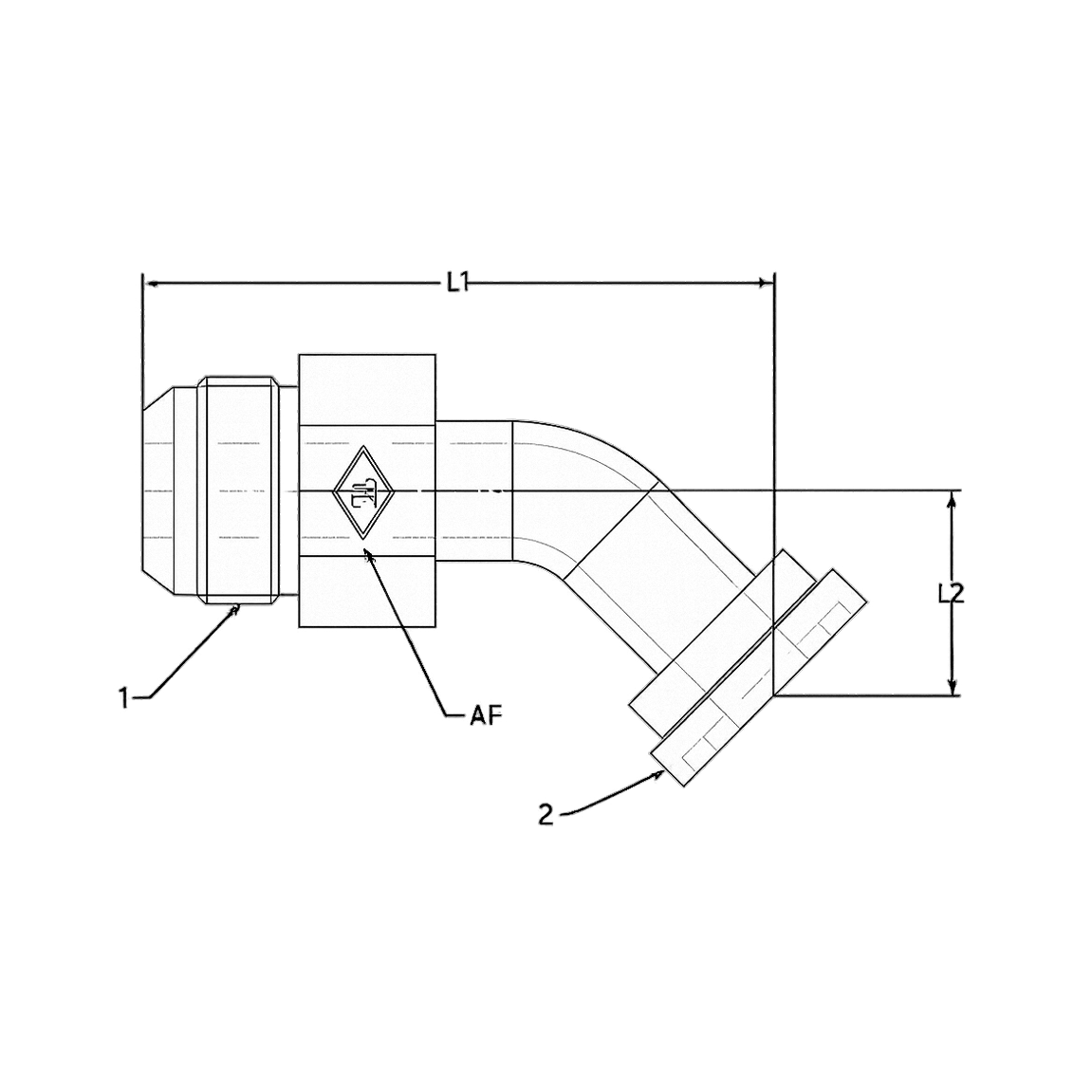

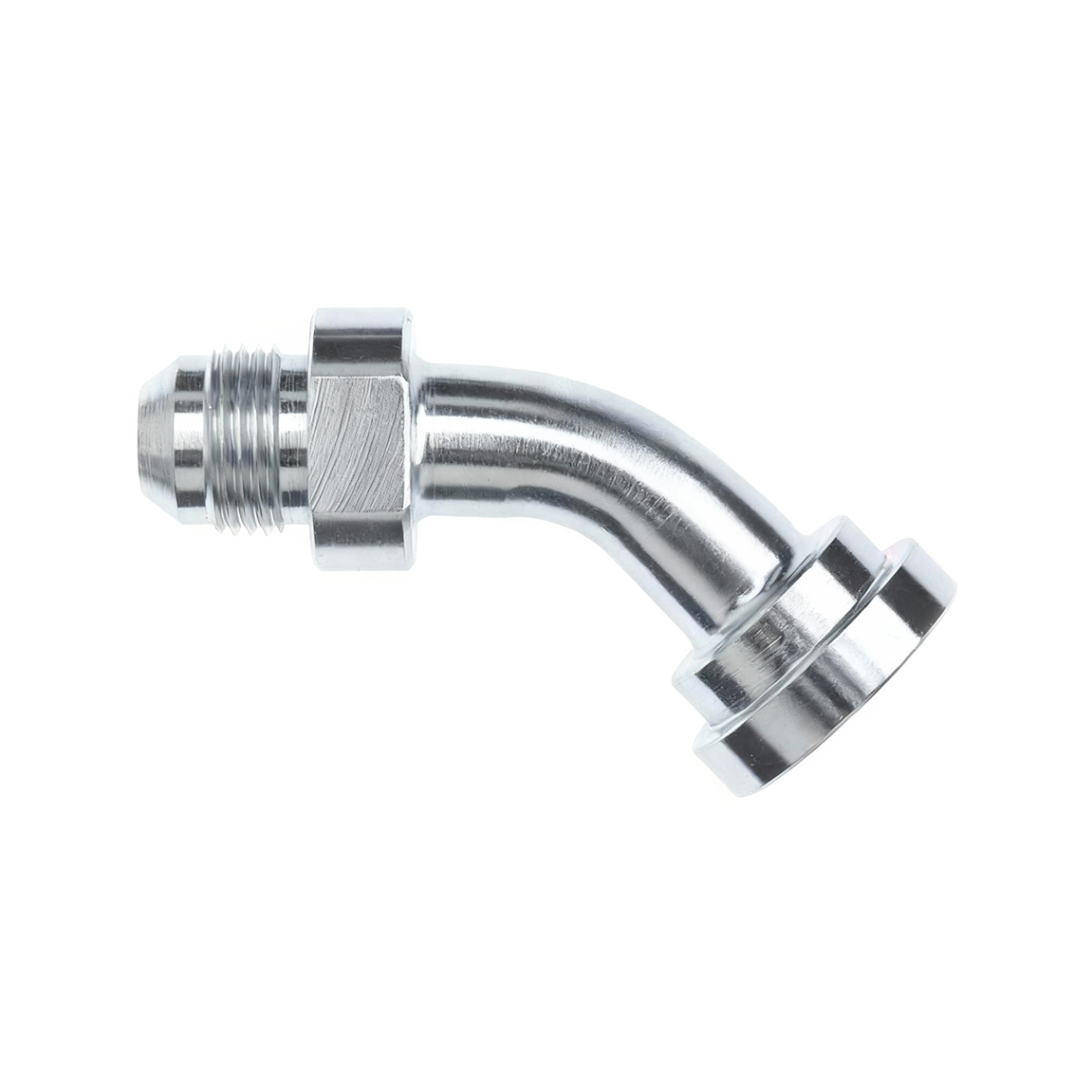

SAE J514 37° Flare 45° Code 61 Flange Swept Elbow | Male JIC x Code 61 Flange
For adapting 37° flared tubes or lines to an SAE Code 61 Flange port at a 45° swept angle to reduce flow restriction and improve hose routing.
Connection Details
| PART NUMBER ↑ |
|---|
| 1703-08-08 |
| 1703-08-08-SS |
| 1703-08-12 |
| 1703-08-12-SS |
| 1703-12-12 |
| 1703-12-12-SS |
| 1703-12-16 |
| 1703-12-16-SS |
| 1703-12-20 |
| 1703-12-20-SS |
| 1703-16-12 |
| 1703-16-12-SS |
| 1703-16-16 |
| 1703-16-16-SS |
| 1703-16-20 |
| 1703-16-20-SS |
| 1703-16-24 |
| 1703-16-24-SS |
| 1703-20-12 |
| 1703-20-16 |
| 1703-20-16-SS |
| 1703-20-20 |
| 1703-20-20-SS |
| 1703-20-24 |
| 1703-20-24-SS |
| 1703-24-16 |
| 1703-24-20 |
| 1703-24-20-SS |
| 1703-24-24 |
| 1703-24-24-SS |
| 1703-24-32 |
| 1703-24-32-SS |
| 1703-32-24-SS |
| 1703-32-32 |
| 1703-32-32-SS |
Description
SAE J514 37° Flare 45° Code 61 Flange Swept Elbow | Male JIC x Code 61 Flange
For adapting 37° flared tubes or lines to an SAE Code 61 Flange port at a 45° swept angle to reduce flow restriction and improve hose routing.
Additional information
| Shape | 45° Swept Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | MetaobjectDrop |
