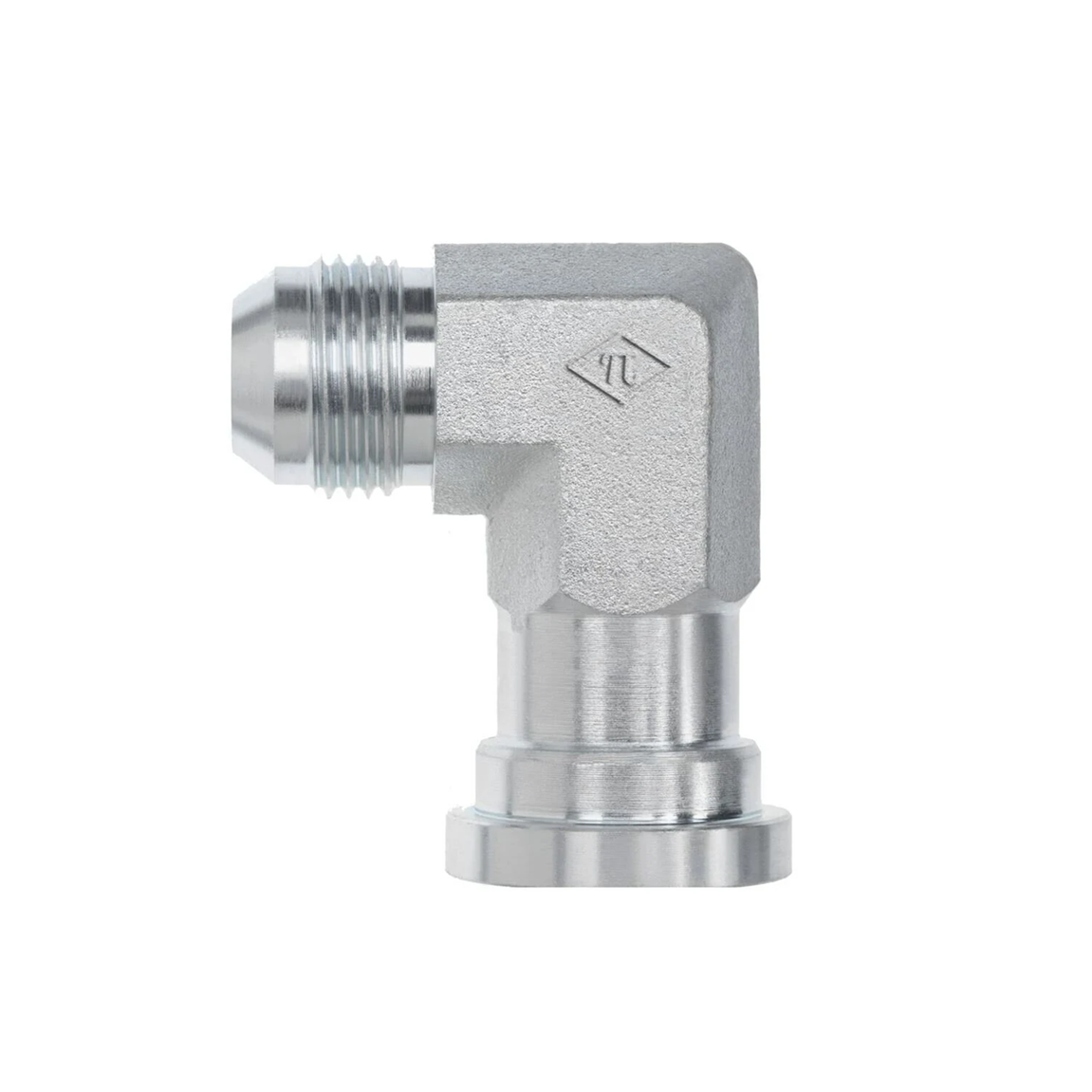

1704-FG Male JIC x Code 61 Flange
SAE J514 37° Flare 90° Code 61 Flange Forged Elbow | Male JIC x Code 61 Flange
For adapting 37° flared tubes or lines to an SAE Code 61 Flange port at a 90° angle using a forged body for additional strength.
Connection Details
| PART NUMBER ↑ |
|---|
| 1704-08-08-FG |
| 1704-08-12-FG |
| 1704-08-24-FG |
| 1704-12-12-FG |
| 1704-12-16-FG |
| 1704-12-20-FG |
| 1704-12-24-FG |
| 1704-16-12-FG |
| 1704-16-16-FG |
| 1704-16-20-FG |
| 1704-20-16-FG |
| 1704-20-20-FG |
| 1704-20-24-FG |
| 1704-24-20-FG |
| 1704-24-24-FG |
| 1704-24-32-FG |
| 1704-32-24-FG |
| 1704-32-32-FG |
Description
SAE J514 37° Flare 90° Code 61 Flange Forged Elbow | Male JIC x Code 61 Flange
For adapting 37° flared tubes or lines to an SAE Code 61 Flange port at a 90° angle using a forged body for additional strength.
Additional information
| Shape | 90° Swept Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | MetaobjectDrop |
