2404 Male JICx Male Pipe

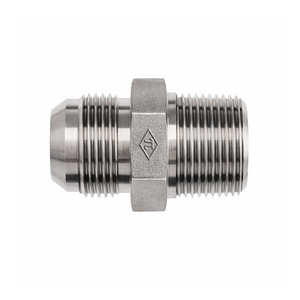

SAE J514 37° Flare Male Connector | Male JIC x Male Pipe
For connecting 37° flared tubes or lines to pipe without requiring pipe sealant.
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 PIPE SIZE | PRIMARY MATERIAL |
|---|---|---|---|
| 2404-02-01 | 1/8" | 1/16" | Steel |
| 2404-02-02 | 1/8" | 1/8" | Steel |
| 2404-02-02-B | 1/8" | 1/8" | Brass |
| 2404-02-02-SS | 1/8" | 1/8" | Stainless Steel |
| 2404-02-04 | 1/8" | 1/4" | Steel |
| 2404-02-04-SS | 1/8" | 1/4" | Stainless Steel |
| 2404-02-06 | 1/8" | 3/8" | Steel |
| 2404-03-02 | 3/16" | 1/8" | Steel |
| 2404-03-02-B | 3/16" | 1/8" | Brass |
| 2404-03-02-SS | 3/16" | 1/8" | Stainless Steel |
| 2404-03-04 | 3/16" | 1/4" | Steel |
| 2404-03-04-SS | 3/16" | 1/4" | Stainless Steel |
| 2404-03-06-SS | 3/16" | 3/8" | Stainless Steel |
| 2404-04-01 | 1/4" | 1/16" | Steel |
| 2404-04-02 | 1/4" | 1/8" | Steel |
| 2404-04-02-B | 1/4" | 1/8" | Brass |
| 2404-04-02-SS | 1/4" | 1/8" | Stainless Steel |
| 2404-04-04 | 1/4" | 1/4" | Steel |
| 2404-04-04-B | 1/4" | 1/4" | Brass |
| 2404-04-04-SS | 1/4" | 1/4" | Stainless Steel |
| 2404-04-06 | 1/4" | 3/8" | Steel |
| 2404-04-06-B | 1/4" | 3/8" | Brass |
| 2404-04-06-SS | 1/4" | 3/8" | Stainless Steel |
| 2404-04-08 | 1/4" | 1/2" | Steel |
| 2404-04-08-B | 1/4" | 1/2" | Brass |
| 2404-04-08-SS | 1/4" | 1/2" | Stainless Steel |
| 2404-04-12 | 1/4" | 3/4" | Steel |
| 2404-04-12-SS | 1/4" | 3/4" | Stainless Steel |
| 2404-05-02 | 5/16" | 1/8" | Steel |
| 2404-05-02-B | 5/16" | 1/8" | Brass |
| 2404-05-02-SS | 5/16" | 1/8" | Stainless Steel |
| 2404-05-04 | 5/16" | 1/4" | Steel |
| 2404-05-04-B | 5/16" | 1/4" | Brass |
| 2404-05-04-SS | 5/16" | 1/4" | Stainless Steel |
| 2404-05-06 | 5/16" | 3/8" | Steel |
| 2404-05-06-SS | 5/16" | 3/8" | Stainless Steel |
| 2404-05-08 | 5/16" | 1/2" | Steel |
| 2404-06-02 | 3/8" | 1/8" | Steel |
| 2404-06-02-B | 3/8" | 1/8" | Brass |
| 2404-06-02-SS | 3/8" | 1/8" | Stainless Steel |
| 2404-06-04 | 3/8" | 1/4" | Steel |
| 2404-06-04-B | 3/8" | 1/4" | Brass |
| 2404-06-04-SS | 3/8" | 1/4" | Stainless Steel |
| 2404-06-06 | 3/8" | 3/8" | Steel |
| 2404-06-06-B | 3/8" | 3/8" | Brass |
| 2404-06-06-SS | 3/8" | 3/8" | Stainless Steel |
| 2404-06-08 | 3/8" | 1/2" | Steel |
| 2404-06-08-B | 3/8" | 1/2" | Brass |
| 2404-06-08-SS | 3/8" | 1/2" | Stainless Steel |
| 2404-06-12 | 3/8" | 3/4" | Steel |
| 2404-06-12-SS | 3/8" | 3/4" | Stainless Steel |
| 2404-06-16 | 3/8" | 1" | Steel |
| 2404-06-16-SS | 3/8" | 1" | Stainless Steel |
| 2404-08-02 | 1/2" | 1/8" | Steel |
| 2404-08-02-SS | 1/2" | 1/8" | Stainless Steel |
| 2404-08-04 | 1/2" | 1/4" | Steel |
| 2404-08-04-B | 1/2" | 1/4" | Brass |
| 2404-08-04-SS | 1/2" | 1/4" | Stainless Steel |
| 2404-08-06 | 1/2" | 3/8" | Steel |
| 2404-08-06-B | 1/2" | 3/8" | Brass |
| 2404-08-06-SS | 1/2" | 3/8" | Stainless Steel |
| 2404-08-08 | 1/2" | 1/2" | Steel |
| 2404-08-08-B | 1/2" | 1/2" | Brass |
| 2404-08-08-SS | 1/2" | 1/2" | Stainless Steel |
| 2404-08-12 | 1/2" | 3/4" | Steel |
| 2404-08-12-B | 1/2" | 3/4" | Brass |
| 2404-08-12-SS | 1/2" | 3/4" | Stainless Steel |
| 2404-08-16 | 1/2" | 1" | Steel |
| 2404-08-16-SS | 1/2" | 1" | Stainless Steel |
| 2404-08-20-SS | 1/2" | 1-1/4" | Stainless Steel |
| 2404-10-04 | 5/8" | 1/4" | Steel |
| 2404-10-04-B | 5/8" | 1/4" | Brass |
| 2404-10-04-SS | 5/8" | 1/4" | Stainless Steel |
| 2404-10-06 | 5/8" | 3/8" | Steel |
| 2404-10-06-B | 5/8" | 3/8" | Brass |
| 2404-10-06-SS | 5/8" | 3/8" | Stainless Steel |
| 2404-10-08 | 5/8" | 1/2" | Steel |
| 2404-10-08-B | 5/8" | 1/2" | Brass |
| 2404-10-08-SS | 5/8" | 1/2" | Stainless Steel |
| 2404-10-12 | 5/8" | 3/4" | Steel |
| 2404-10-12-B | 5/8" | 3/4" | Brass |
| 2404-10-12-SS | 5/8" | 3/4" | Stainless Steel |
| 2404-10-16 | 5/8" | 1" | Steel |
| 2404-10-16-SS | 5/8" | 1" | Stainless Steel |
| 2404-10-20 | 5/8" | 1-1/4" | Steel |
| 2404-10-20-SS | 5/8" | 1-1/4" | Stainless Steel |
| 2404-12-04 | 3/4" | 1/4" | Steel |
| 2404-12-04-SS | 3/4" | 1/4" | Stainless Steel |
| 2404-12-06 | 3/4" | 3/8" | Steel |
| 2404-12-06-SS | 3/4" | 3/8" | Stainless Steel |
| 2404-12-08 | 3/4" | 1/2" | Steel |
| 2404-12-08-B | 3/4" | 1/2" | Brass |
| 2404-12-08-SS | 3/4" | 1/2" | Stainless Steel |
| 2404-12-12 | 3/4" | 3/4" | Steel |
| 2404-12-12-B | 3/4" | 3/4" | Brass |
| 2404-12-12-SS | 3/4" | 3/4" | Stainless Steel |
| 2404-12-16 | 3/4" | 1" | Steel |
| 2404-12-16-B | 3/4" | 1" | Brass |
| 2404-12-16-SS | 3/4" | 1" | Stainless Steel |
| 2404-12-20 | 3/4" | 1-1/4" | Steel |
| 2404-12-20-SS | 3/4" | 1-1/4" | Stainless Steel |
| 2404-12-24 | 3/4" | 1-1/2" | Steel |
| 2404-14-08 | 7/8" | 1/2" | Steel |
| 2404-14-12 | 7/8" | 3/4" | Steel |
| 2404-14-12-SS | 7/8" | 3/4" | Stainless Steel |
| 2404-14-16 | 7/8" | 1" | Steel |
| 2404-14-20-B | 7/8" | 1-1/4" | Brass |
| 2404-16-06 | 1" | 3/8" | Steel |
| 2404-16-06-SS | 1" | 3/8" | Stainless Steel |
| 2404-16-08 | 1" | 1/2" | Steel |
| 2404-16-08-B | 1" | 1/2" | Brass |
| 2404-16-08-SS | 1" | 1/2" | Stainless Steel |
| 2404-16-12 | 1" | 3/4" | Steel |
| 2404-16-12-B | 1" | 3/4" | Brass |
| 2404-16-12-SS | 1" | 3/4" | Stainless Steel |
| 2404-16-16 | 1" | 1" | Steel |
| 2404-16-16-B | 1" | 1" | Brass |
| 2404-16-16-SS | 1" | 1" | Stainless Steel |
| 2404-16-20 | 1" | 1-1/4" | Steel |
| 2404-16-20-B | 1" | 1-1/4" | Brass |
| 2404-16-20-SS | 1" | 1-1/4" | Stainless Steel |
| 2404-16-24 | 1" | 1-1/2" | Steel |
| 2404-16-24-B | 1" | 1-1/2" | Brass |
| 2404-16-24-SS | 1" | 1-1/2" | Stainless Steel |
| 2404-16-32 | 1" | 2" | Steel |
| 2404-16-32-SS | 1" | 2" | Stainless Steel |
| 2404-20-12 | 1-1/4" | 3/4" | Steel |
| 2404-20-12-SS | 1-1/4" | 3/4" | Stainless Steel |
| 2404-20-16 | 1-1/4" | 1" | Steel |
| 2404-20-16-B | 1-1/4" | 1" | Brass |
| 2404-20-16-SS | 1-1/4" | 1" | Stainless Steel |
| 2404-20-20 | 1-1/4" | 1-1/4" | Steel |
| 2404-20-20-B | 1-1/4" | 1-1/4" | Brass |
| 2404-20-20-SS | 1-1/4" | 1-1/4" | Stainless Steel |
| 2404-20-24 | 1-1/4" | 1-1/2" | Steel |
| 2404-20-24-SS | 1-1/4" | 1-1/2" | Stainless Steel |
| 2404-20-32 | 1-1/4" | 2" | Steel |
| 2404-20-32-SS | 1-1/4" | 2" | Stainless Steel |
| 2404-20-40 | 1-1/4" | 2-1/2" | Steel |
| 2404-24-12 | 1-1/2" | 3/4" | Steel |
| 2404-24-16 | 1-1/2" | 1" | Steel |
| 2404-24-16-SS | 1-1/2" | 1" | Stainless Steel |
| 2404-24-20 | 1-1/2" | 1-1/4" | Steel |
| 2404-24-20-SS | 1-1/2" | 1-1/4" | Stainless Steel |
| 2404-24-24 | 1-1/2" | 1-1/2" | Steel |
| 2404-24-24-B | 1-1/2" | 1-1/2" | Brass |
| 2404-24-24-SS | 1-1/2" | 1-1/2" | Stainless Steel |
| 2404-24-32 | 1-1/2" | 2" | Steel |
| 2404-24-32-SS | 1-1/2" | 2" | Stainless Steel |
| 2404-32-16 | 2" | 1" | Steel |
| 2404-32-16-SS | 2" | 1" | Stainless Steel |
| 2404-32-20 | 2" | 1-1/4" | Steel |
| 2404-32-20-SS | 2" | 1-1/4" | Stainless Steel |
| 2404-32-24 | 2" | 1-1/2" | Steel |
| 2404-32-24-B | 2" | 1-1/2" | Brass |
| 2404-32-24-SS | 2" | 1-1/2" | Stainless Steel |
| 2404-32-32 | 2" | 2" | Steel |
| 2404-32-32-B | 2" | 2" | Brass |
| 2404-32-32-SS | 2" | 2" | Stainless Steel |
| 2404-32-40 | 2" | 2-1/2" | Steel |
| 2404-32-40-SS | 2" | 2-1/2" | Stainless Steel |
| 2404-32-48 | 2" | 3" | Steel |
| 2404-40-32 | 2-1/2" | 2" | Steel |
| 2404-40-40 | 2-1/2" | 2-1/2" | Steel |
| 2404-40-40-B | 2-1/2" | 2-1/2" | Brass |
| 2404-40-40-SS | 2-1/2" | 2-1/2" | Stainless Steel |
| 2404-40-48-SS | 2-1/2" | 3" | Stainless Steel |
| 2404-48-40 | 3" | 2-1/2" | Steel |
| 2404-48-48 | 3" | 3" | Steel |
| 2404-48-48-SS | 3" | 3" | Stainless Steel |
Description
SAE J514 37° Flare Male Connector | Male JIC x Male Pipe
For connecting 37° flared tubes or lines to pipe without requiring pipe sealant.
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | MetaobjectDrop |
