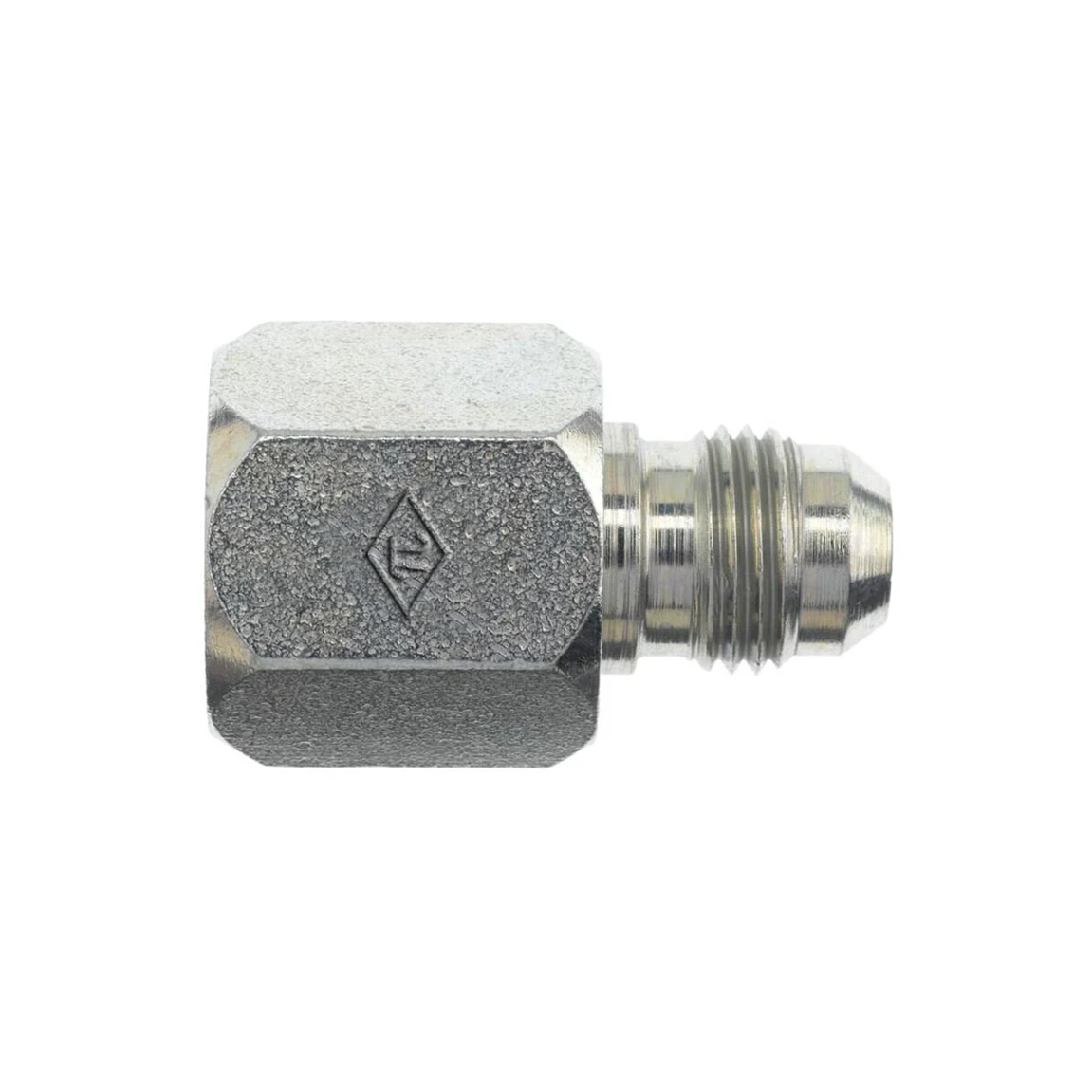

2406-2PC Female JICx Male JIC
SAE J514 37° Flare Reducer Insert and Nut Assembled | Female JIC x Male JIC
For reducing 37° flared tubes or lines with a two-piece solution.
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 TUBE OD | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 2406-06-04-2PC | 3/8" | 1/4" | Steel | Trivalent Zinc |
| 2406-08-04-2PC | 1/2" | 1/4" | Steel | Trivalent Zinc |
| 2406-08-06-2PC | 1/2" | 3/8" | Steel | Trivalent Zinc |
| 2406-10-06-2PC | 5/8" | 3/8" | Steel | Trivalent Zinc |
| 2406-12-04-2PC | 3/4" | 1/4" | Steel | Trivalent Zinc |
| 2406-12-06-2PC | 3/4" | 3/8" | Steel | Trivalent Zinc |
| 2406-12-08-2PC | 3/4" | 1/2" | Steel | Trivalent Zinc |
| 2406-16-06-2PC | 1" | 3/8" | Steel | Trivalent Zinc |
| 2406-16-08-2PC | 1" | 1/2" | Steel | Trivalent Zinc |
| 2406-16-10-2PC | 1" | 5/8" | Steel | Trivalent Zinc |
| 2406-16-12-2PC | 1" | 3/4" | Steel | Trivalent Zinc |
| 2406-20-12-2PC | 1-1/4" | 3/4" | Steel | Trivalent Zinc |
| 2406-20-16-2PC | 1-1/4" | 1" | Steel | Trivalent Zinc |
Description
SAE J514 37° Flare Reducer Insert and Nut Assembled | Female JIC x Male JIC
For reducing 37° flared tubes or lines with a two-piece solution.
Additional information
| Shape | Straight |
| Side 1 Connection Type | Female JIC |
| Side 2 Connection Type | MetaobjectDrop |
