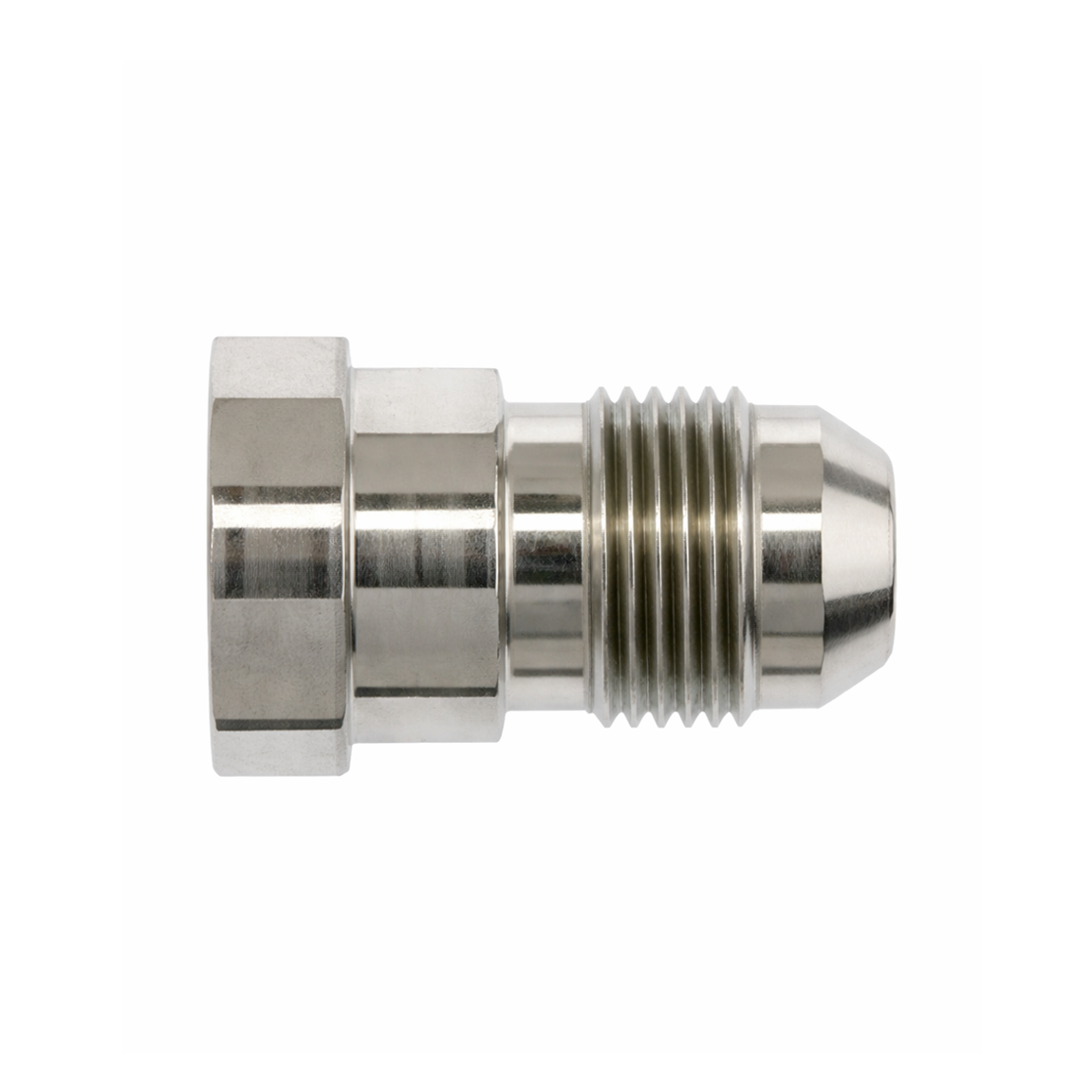

2406-IN Female JIC Seat x Male JIC
SAE J514 37° Flare Reducer Insert | Female JIC Seat x Male JIC
For assembly with 37° flared tube nut to create a two piece flared tube or line reducer.
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 TUBE OD | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 2406-04-02-IN-SS | 1/4" | 1/8" | Stainless Steel | - |
| 2406-06-04-IN | 3/8" | 1/4" | Steel | Trivalent Zinc |
| 2406-06-04-IN-SS | 3/8" | 1/4" | Stainless Steel | - |
| 2406-06-05-IN-SS | 3/8" | 5/16" | Stainless Steel | - |
| 2406-08-04-IN | 1/2" | 1/4" | Steel | Trivalent Zinc |
| 2406-08-04-IN-SS | 1/2" | 1/4" | Stainless Steel | - |
| 2406-08-06-IN | 1/2" | 3/8" | Steel | Trivalent Zinc |
| 2406-08-06-IN-SS | 1/2" | 3/8" | Stainless Steel | - |
| 2406-10-04-IN-SS | 5/8" | 1/4" | Stainless Steel | - |
| 2406-10-06-IN | 5/8" | 3/8" | Steel | Trivalent Zinc |
| 2406-10-06-IN-SS | 5/8" | 3/8" | Stainless Steel | - |
| 2406-12-04-IN | 3/4" | 1/4" | Steel | Trivalent Zinc |
| 2406-12-04-IN-SS | 3/4" | 1/4" | Stainless Steel | - |
| 2406-12-06-IN | 3/4" | 3/8" | Steel | Trivalent Zinc |
| 2406-12-06-IN-SS | 3/4" | 3/8" | Stainless Steel | - |
| 2406-12-08-IN | 3/4" | 1/2" | Steel | Trivalent Zinc |
| 2406-12-08-IN-SS | 3/4" | 1/2" | Stainless Steel | - |
| 2406-14-06-IN | 7/8" | 3/8" | Steel | Trivalent Zinc |
| 2406-14-10-IN | 7/8" | 5/8" | Steel | Trivalent Zinc |
| 2406-16-04-IN-SS | 1" | 1/4" | Stainless Steel | - |
| 2406-16-06-IN | 1" | 3/8" | Steel | Trivalent Zinc |
| 2406-16-06-IN-SS | 1" | 3/8" | Stainless Steel | - |
| 2406-16-08-IN | 1" | 1/2" | Steel | Trivalent Zinc |
| 2406-16-08-IN-SS | 1" | 1/2" | Stainless Steel | - |
| 2406-16-10-IN | 1" | 5/8" | Steel | Trivalent Zinc |
| 2406-16-10-IN-SS | 1" | 5/8" | Stainless Steel | - |
| 2406-16-12-IN | 1" | 3/4" | Steel | Trivalent Zinc |
| 2406-16-12-IN-SS | 1" | 3/4" | Stainless Steel | - |
| 2406-20-04-IN-SS | 1-1/4" | 1/4" | Stainless Steel | - |
| 2406-20-08-IN-SS | 1-1/4" | 1/2" | Stainless Steel | - |
| 2406-20-10-IN-SS | 1-1/4" | 5/8" | Stainless Steel | - |
| 2406-20-12-IN | 1-1/4" | 3/4" | Steel | Trivalent Zinc |
| 2406-20-12-IN-SS | 1-1/4" | 3/4" | Stainless Steel | - |
| 2406-20-16-IN | 1-1/4" | 1" | Steel | Trivalent Zinc |
| 2406-20-16-IN-SS | 1-1/4" | 1" | Stainless Steel | - |
| 2406-24-04-IN-SS | 1-1/2" | 1/4" | Stainless Steel | - |
| 2406-24-08-IN-SS | 1-1/2" | 1/2" | Stainless Steel | - |
| 2406-24-12-IN-SS | 1-1/2" | 3/4" | Stainless Steel | - |
| 2406-24-16-IN-SS | 1-1/2" | 1" | Stainless Steel | - |
| 2406-24-20-IN | 1-1/2" | 1-1/4" | Steel | Trivalent Zinc |
| 2406-24-20-IN-SS | 1-1/2" | 1-1/4" | Stainless Steel | - |
| 2406-32-08-IN | 2" | 1/2" | Steel | Trivalent Zinc |
| 2406-32-08-IN-SS | 2" | 1/2" | Stainless Steel | - |
| 2406-32-12-IN-SS | 2" | 3/4" | Stainless Steel | - |
| 2406-32-16-IN-SS | 2" | 1" | Stainless Steel | - |
| 2406-32-20-IN-SS | 2" | 1-1/4" | Stainless Steel | - |
| 2406-32-24-IN-SS | 2" | 1-1/2" | Stainless Steel | - |
Description
SAE J514 37° Flare Reducer Insert | Female JIC Seat x Male JIC
For assembly with 37° flared tube nut to create a two piece flared tube or line reducer.
Additional information
| Shape | Straight |
| Side 1 Connection Type | JIC Tube Insert |
| Side 2 Connection Type | MetaobjectDrop |
