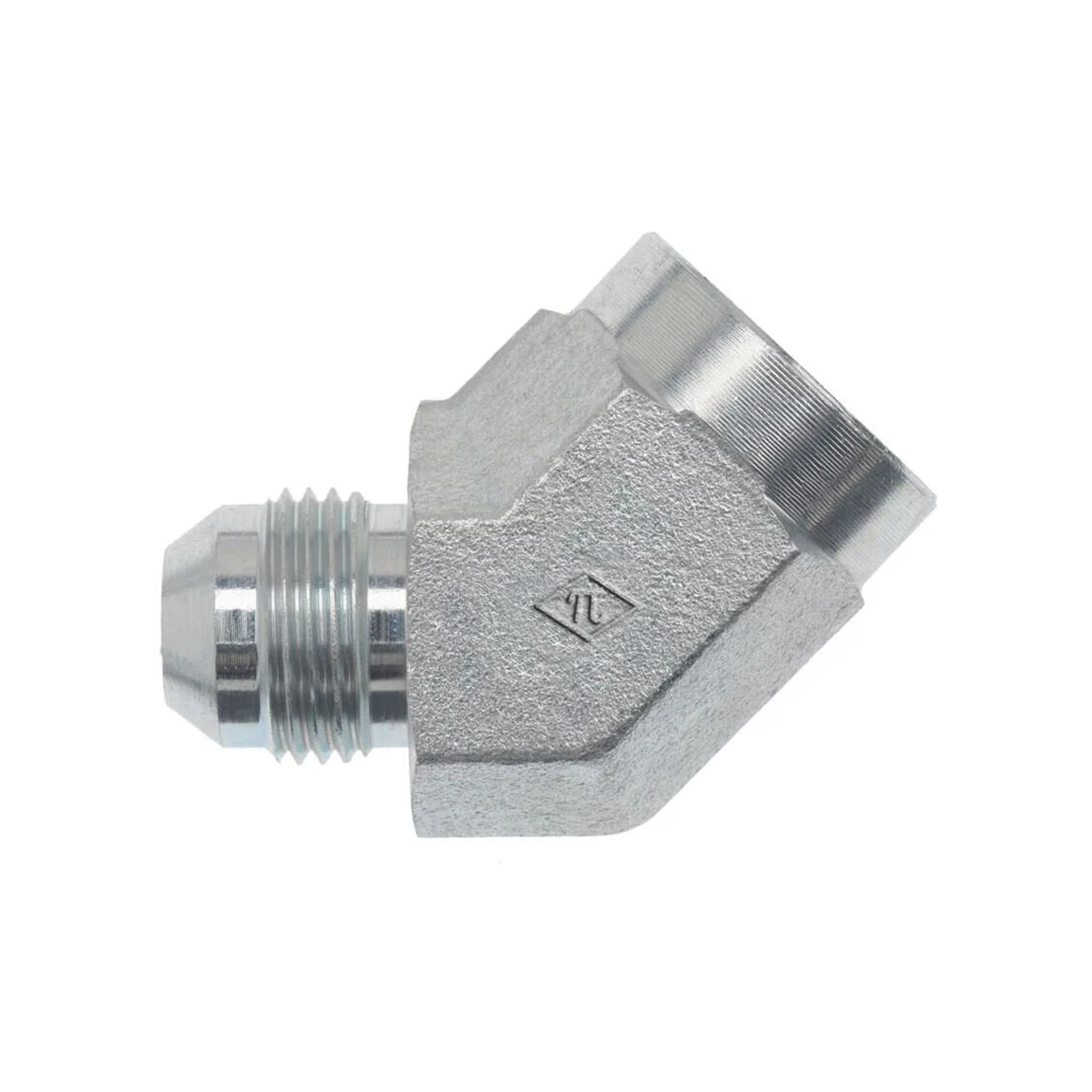

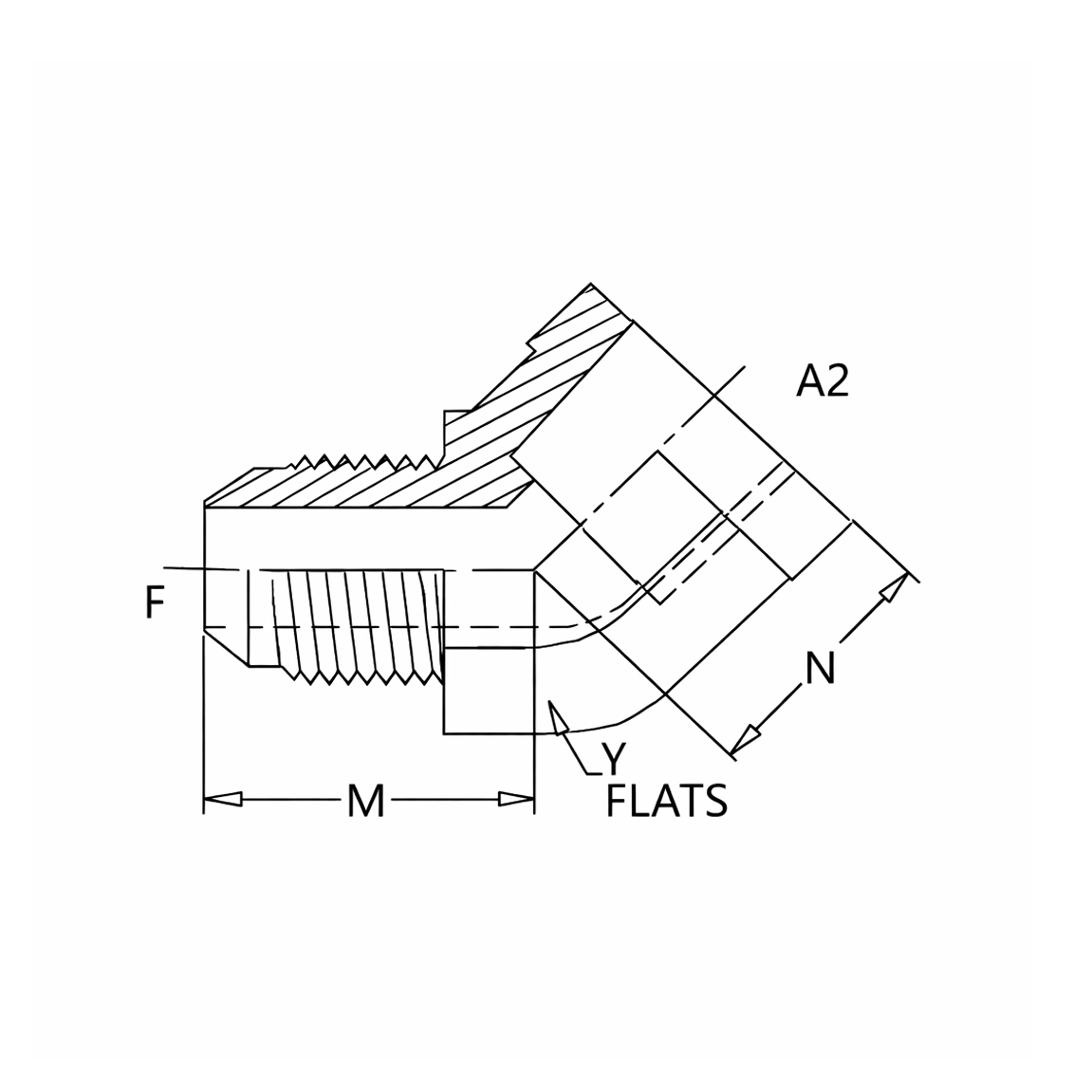

2505-FG Male JIC x Female Pipe
SAE J514 37° Flare 45° Female Elbow | Male JIC x Female Pipe
For connecting 37° flared tubes or lines to pipe at a 45° angle without requiring pipe sealant.
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 PIPE SIZE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 2505-04-04-FG | 1/4" | 1/4" | Steel | Trivalent Zinc |
| 2505-05-04-SS | 5/16" | 1/4" | Stainless Steel | - |
| 2505-06-04-FG | 3/8" | 1/4" | Steel | Trivalent Zinc |
| 2505-06-04-SS | 3/8" | 1/4" | Stainless Steel | - |
| 2505-06-06-FG | 3/8" | 3/8" | Steel | Trivalent Zinc |
| 2505-08-06-FG | 1/2" | 3/8" | Steel | Trivalent Zinc |
| 2505-08-06-SS | 1/2" | 3/8" | Stainless Steel | - |
| 2505-08-08-FG | 1/2" | 1/2" | Steel | Trivalent Zinc |
| 2505-08-08-SS | 1/2" | 1/2" | Stainless Steel | - |
| 2505-10-08-FG | 5/8" | 1/2" | Steel | Trivalent Zinc |
| 2505-10-08-SS | 5/8" | 1/2" | Stainless Steel | - |
| 2505-12-12-FG | 3/4" | 3/4" | Steel | Trivalent Zinc |
| 2505-12-12-SS | 3/4" | 3/4" | Stainless Steel | - |
| 2505-16-16-FG | 1" | 1" | Steel | Trivalent Zinc |
| 2505-16-16-SS | 1" | 1" | Stainless Steel | - |
| 2505-24-24-FG | 1-1/2" | 1-1/2" | Steel | Trivalent Zinc |
| 2505-24-24-SS | 1-1/2" | 1-1/2" | Stainless Steel | - |
| 2505-32-32-FG | 2" | 2" | Steel | Trivalent Zinc |
Description
SAE J514 37° Flare 45° Female Elbow | Male JIC x Female Pipe
For connecting 37° flared tubes or lines to pipe at a 45° angle without requiring pipe sealant.
Additional information
| Shape | 45° Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | MetaobjectDrop |
