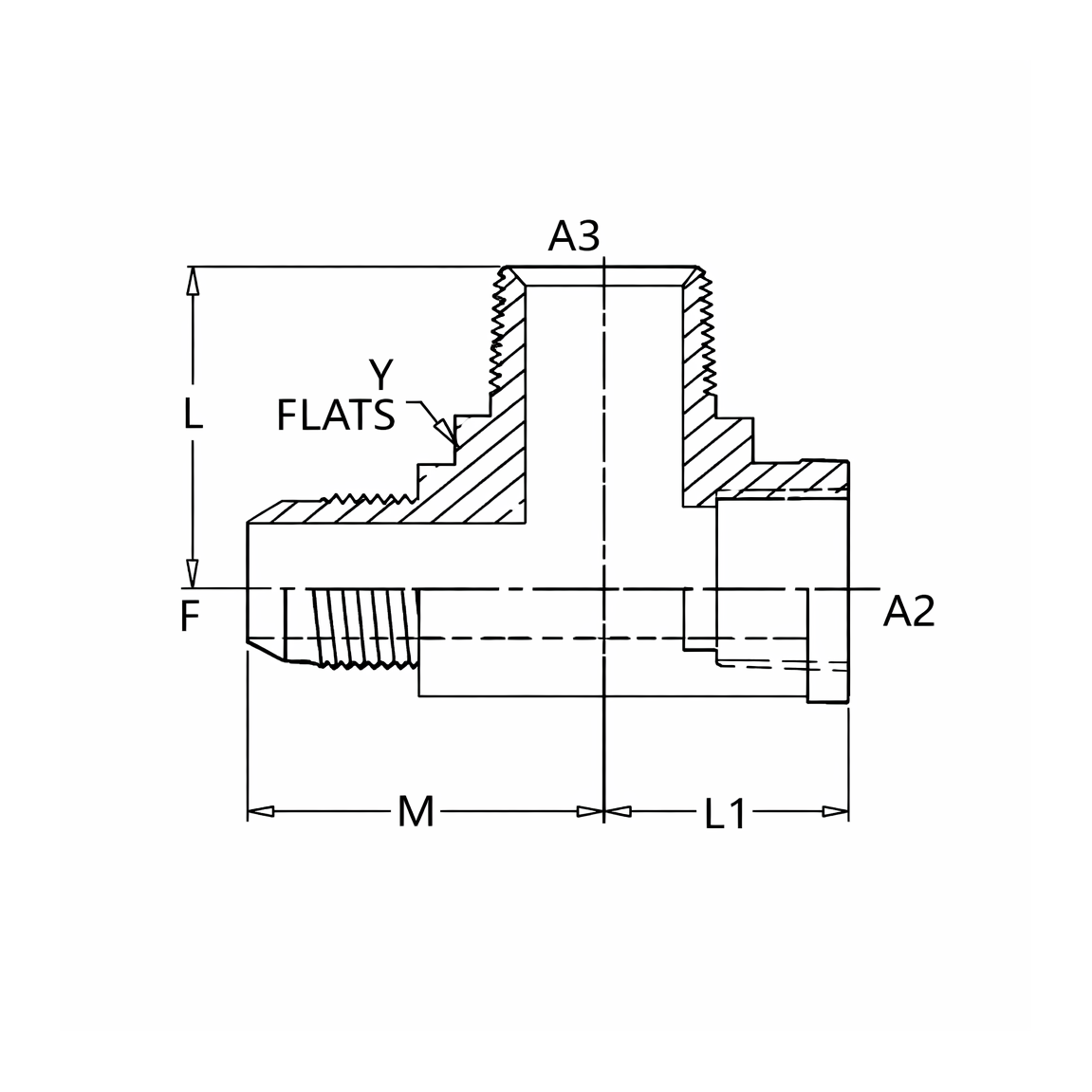

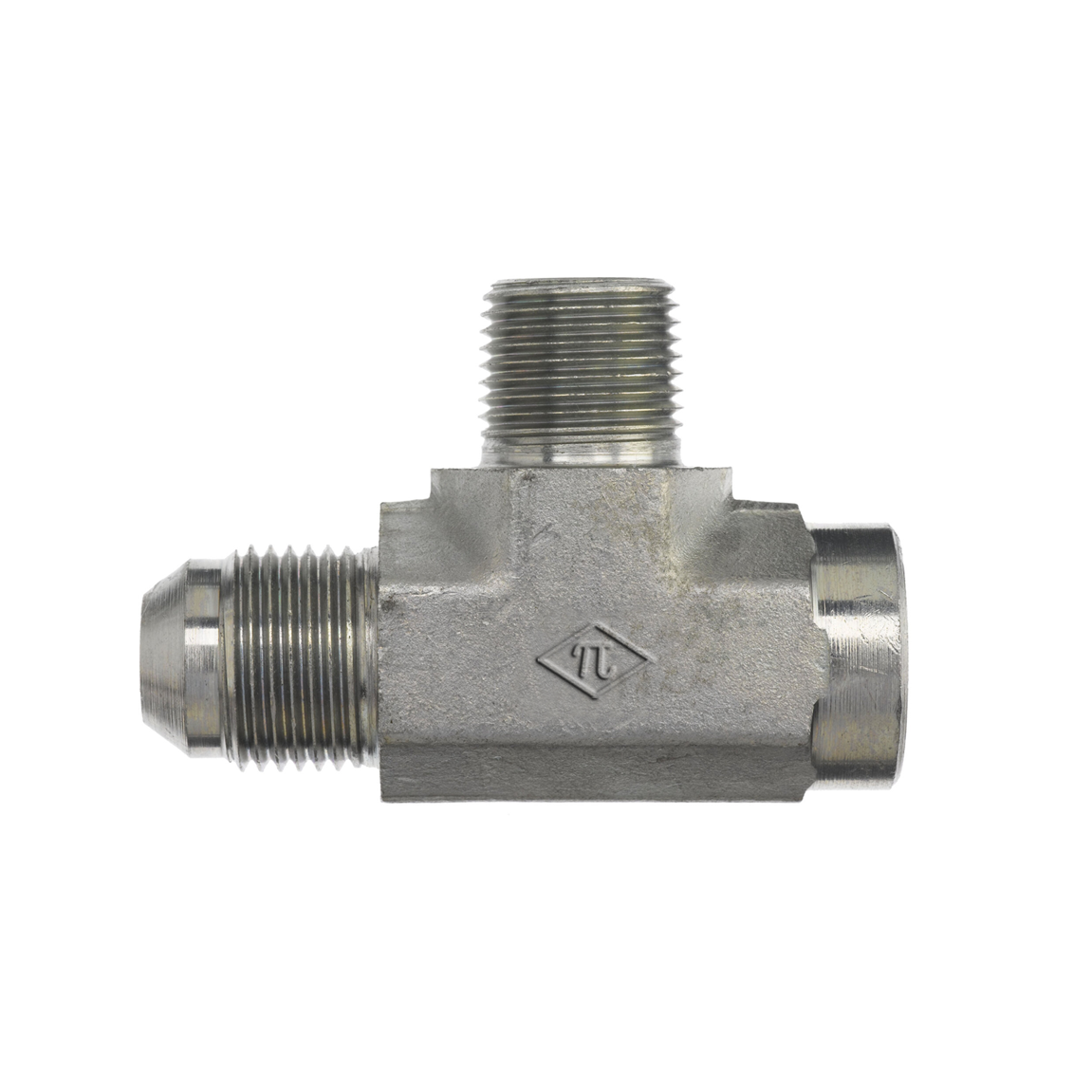

2608-FG Male JIC x Female Pipe x Male Pipe
SAE J514 37° Flare Female Run Tee | Male JIC x Female Pipe x Male Pipe
For connecting 37° flared tubes or lines to two pipes on the branch and run without requiring pipe sealant.
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 PIPE SIZE | SIDE 3 PIPE SIZE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|---|
| 2608-04-02-02-FG | 1/4" | 1/8" | 1/8" | Steel | Trivalent Zinc |
| 2608-06-04-04-FG | 3/8" | 1/4" | 1/4" | Steel | Trivalent Zinc |
| 2608-06-06-06-FG | 3/8" | 3/8" | 3/8" | Steel | Trivalent Zinc |
| 2608-06-06-06-SS | 3/8" | 3/8" | 3/8" | Stainless Steel | - |
| 2608-08-02-06-SS | 1/2" | 1/8" | 3/8" | Stainless Steel | - |
| 2608-08-06-06-FG | 1/2" | 3/8" | 3/8" | Steel | Trivalent Zinc |
| 2608-10-08-08-FG | 5/8" | 1/2" | 1/2" | Steel | Trivalent Zinc |
| 2608-12-12-12-FG | 3/4" | 3/4" | 3/4" | Steel | Trivalent Zinc |
| 2608-12-12-12-SS | 3/4" | 3/4" | 3/4" | Stainless Steel | - |
| 2608-16-16-16-FG | 1" | 1" | 1" | Steel | Trivalent Zinc |
| 2608-20-20-20-FG | 1-1/4" | 1-1/4" | 1-1/4" | Steel | Trivalent Zinc |
| 2608-24-24-24-FG | 1-1/2" | 1-1/2" | 1-1/2" | Steel | Trivalent Zinc |
| 2608-32-32-32-FG | 2" | 2" | 2" | Steel | Trivalent Zinc |
Description
SAE J514 37° Flare Female Run Tee | Male JIC x Female Pipe x Male Pipe
For connecting 37° flared tubes or lines to two pipes on the branch and run without requiring pipe sealant.
Additional information
| Shape | Tee |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | MetaobjectDrop |
| Side 3 Connection Type | MetaobjectDrop |
