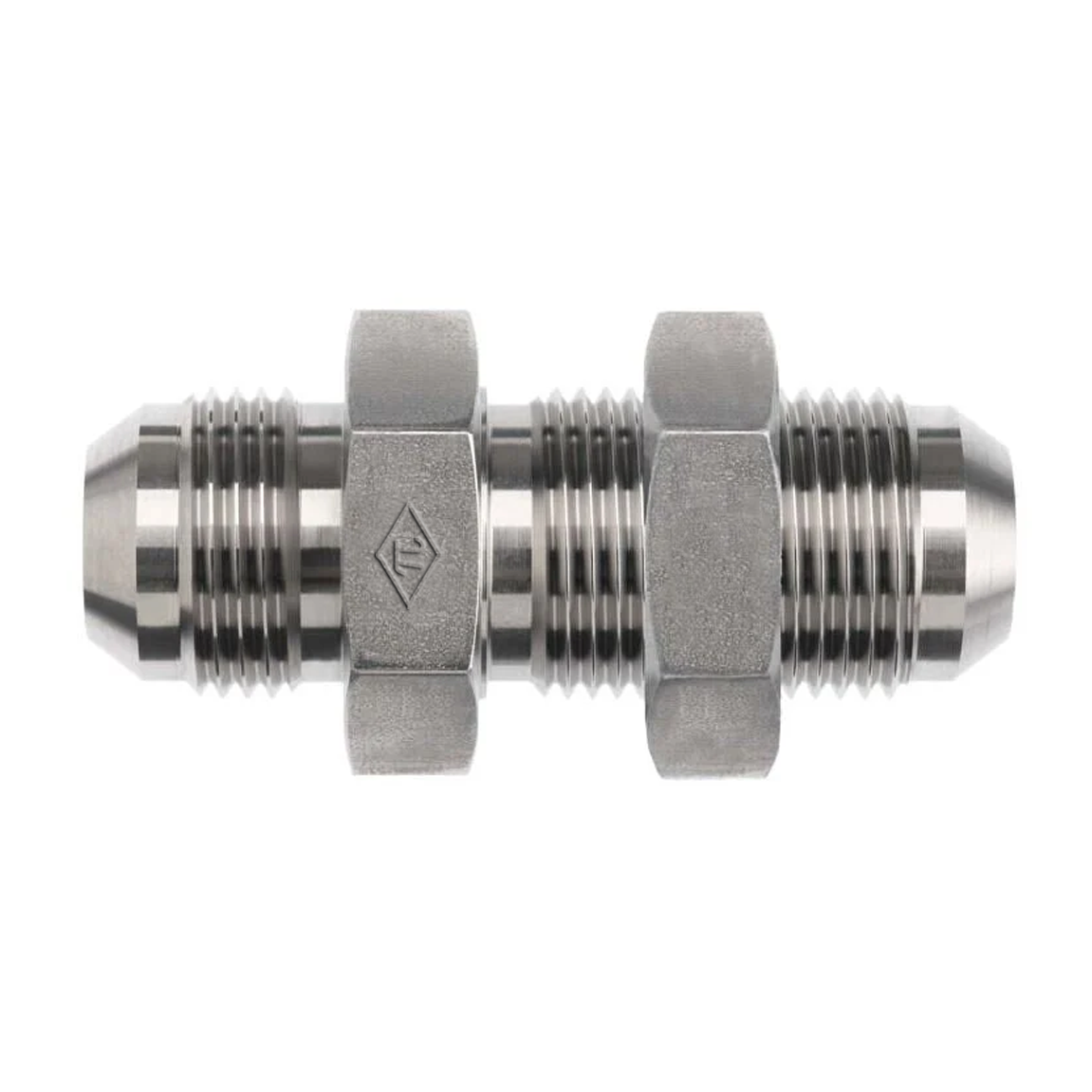

2700-LN Male JIC x Male JIC Bulkhead, WithLock Nut

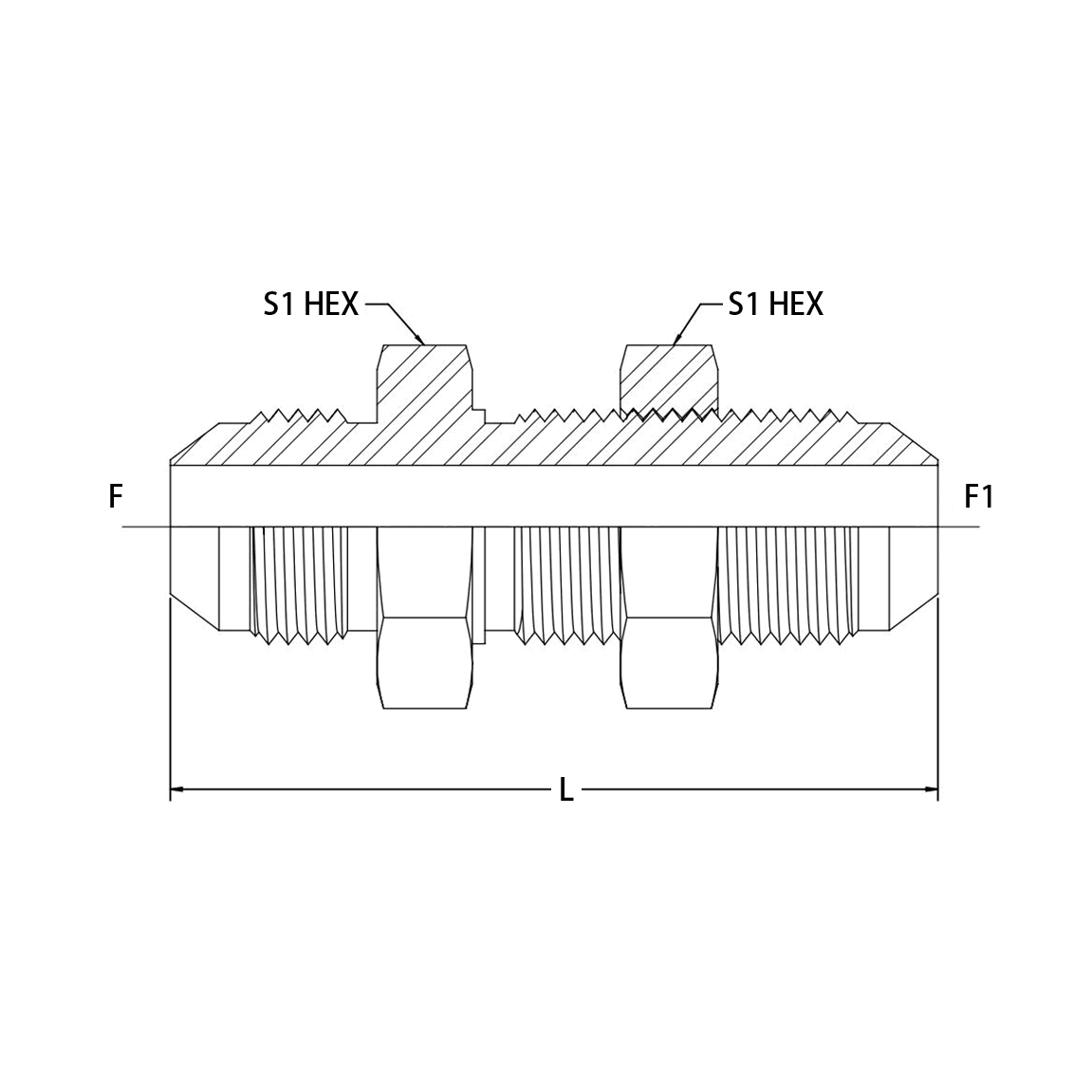

SAE J514 37° Flare Bulkhead With Lock Nut | Male JIC x Male JIC Bulkhead, With Lock Nut
For connecting 37° flared tubes or lines through a panel. Comes with locknut assembled.
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 TUBE OD | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 2700-LN-02-02 | 1/8" | 1/8" | Steel | Trivalent Zinc |
| 2700-LN-02-02-SS | 1/8" | 1/8" | Stainless Steel | - |
| 2700-LN-03-03 | 3/16" | 3/16" | Steel | Trivalent Zinc |
| 2700-LN-03-03-SS | 3/16" | 3/16" | Stainless Steel | - |
| 2700-LN-04-04 | 1/4" | 1/4" | Steel | Trivalent Zinc |
| 2700-LN-04-04-B | 1/4" | 1/4" | Brass | - |
| 2700-LN-04-04-SS | 1/4" | 1/4" | Stainless Steel | - |
| 2700-LN-04-06 | 1/4" | 3/8" | Steel | Trivalent Zinc |
| 2700-LN-05-05 | 5/16" | 5/16" | Steel | Trivalent Zinc |
| 2700-LN-05-05-B | 5/16" | 5/16" | Brass | - |
| 2700-LN-05-05-SS | 5/16" | 5/16" | Stainless Steel | - |
| 2700-LN-06-04 | 3/8" | 1/4" | Steel | Trivalent Zinc |
| 2700-LN-06-04-SS | 3/8" | 1/4" | Stainless Steel | - |
| 2700-LN-06-06 | 3/8" | 3/8" | Steel | Trivalent Zinc |
| 2700-LN-06-06-B | 3/8" | 3/8" | Brass | - |
| 2700-LN-06-06-SS | 3/8" | 3/8" | Stainless Steel | - |
| 2700-LN-08-08 | 1/2" | 1/2" | Steel | Trivalent Zinc |
| 2700-LN-08-08-B | 1/2" | 1/2" | Brass | - |
| 2700-LN-08-08-SS | 1/2" | 1/2" | Stainless Steel | - |
| 2700-LN-10-08 | 5/8" | 1/2" | Steel | Trivalent Zinc |
| 2700-LN-10-10 | 5/8" | 5/8" | Steel | Trivalent Zinc |
| 2700-LN-10-10-SS | 5/8" | 5/8" | Stainless Steel | - |
| 2700-LN-12-12 | 3/4" | 3/4" | Steel | Trivalent Zinc |
| 2700-LN-12-12-SS | 3/4" | 3/4" | Stainless Steel | - |
| 2700-LN-14-14 | 7/8" | 7/8" | Steel | Trivalent Zinc |
| 2700-LN-14-14-SS | 7/8" | 7/8" | Stainless Steel | - |
| 2700-LN-16-12 | 1" | 3/4" | Steel | Trivalent Zinc |
| 2700-LN-16-16 | 1" | 1" | Steel | Trivalent Zinc |
| 2700-LN-16-16-SS | 1" | 1" | Stainless Steel | - |
| 2700-LN-20-20 | 1-1/4" | 1-1/4" | Steel | Trivalent Zinc |
| 2700-LN-20-20-SS | 1-1/4" | 1-1/4" | Stainless Steel | - |
| 2700-LN-24-24 | 1-1/2" | 1-1/2" | Steel | Trivalent Zinc |
| 2700-LN-24-24-SS | 1-1/2" | 1-1/2" | Stainless Steel | - |
| 2700-LN-32-32 | 2" | 2" | Steel | Trivalent Zinc |
| 2700-LN-32-32-SS | 2" | 2" | Stainless Steel | - |
Description
SAE J514 37° Flare Bulkhead With Lock Nut | Male JIC x Male JIC Bulkhead, With Lock Nut
For connecting 37° flared tubes or lines through a panel. Comes with locknut assembled.
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | MetaobjectDrop |
