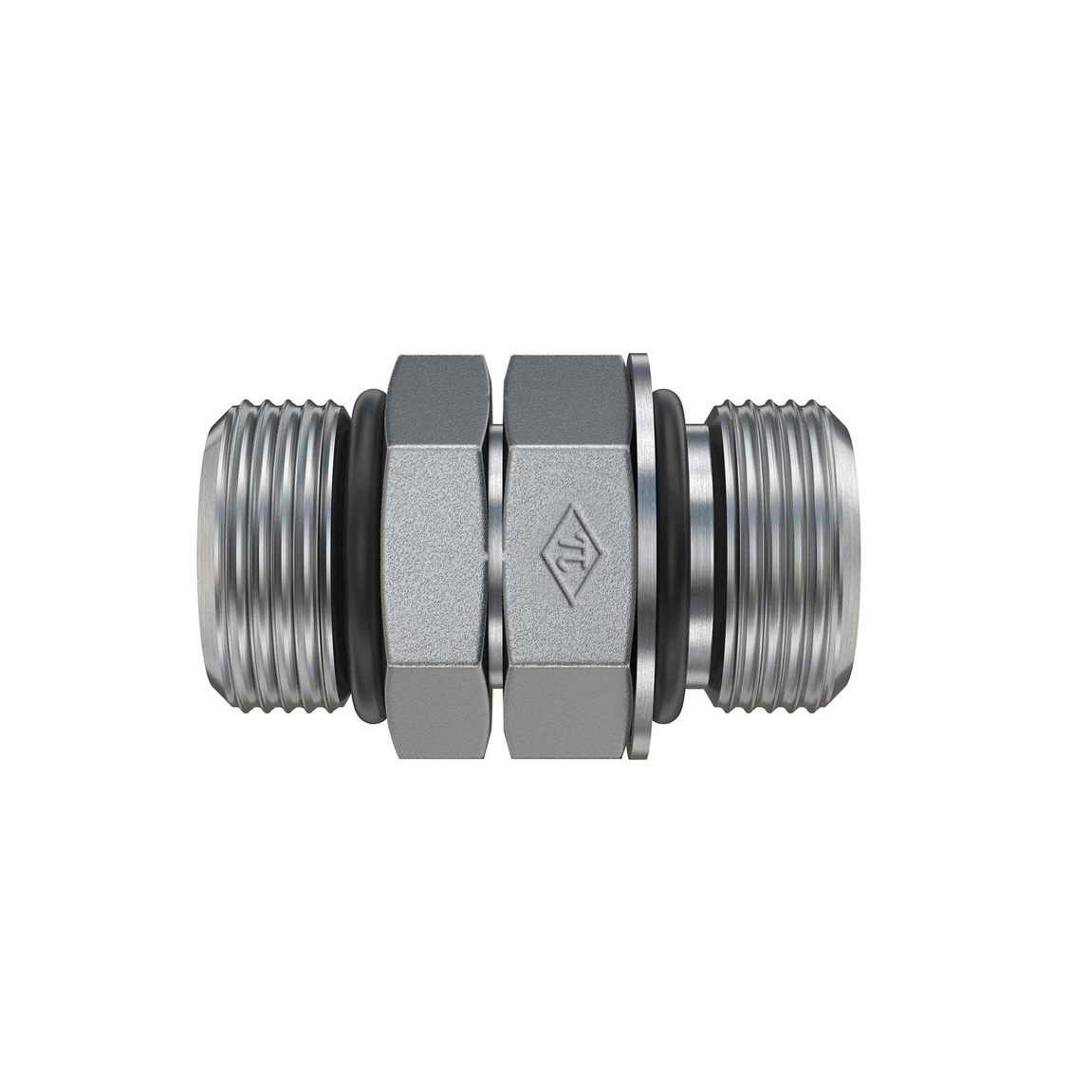

3474-NWO Male Adjustable ORB x Male ORB
SAE J1926 Adjustable O-Ring Boss Nipple | Male Adjustable ORB x Male ORB
For connecting two SAE ports using an adjustable nut for alignment.
Connection Details
| PART NUMBER ↑ | SIDE 1 THREAD TYPE | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 3474-02-02-NWO-SS | 5/16-24 UNF | 5/16-24 UNF | Stainless Steel | - |
| 3474-04-04-NWO | 7/16-20 UNF | 7/16-20 UNF | Steel | Trivalent Zinc |
| 3474-04-04-NWO-SS | 7/16-20 UNF | 7/16-20 UNF | Stainless Steel | - |
| 3474-05-05-NWO-SS | 1/2-20 UNF | 1/2-20 UNF | Stainless Steel | - |
| 3474-06-04-NWO | 9/16-18 UNF | 7/16-20 UNF | Steel | Trivalent Zinc |
| 3474-06-04-NWO-SS | 9/16-18 UNF | 7/16-20 UNF | Stainless Steel | - |
| 3474-06-06-NWO | 9/16-18 UNF | 9/16-18 UNF | Steel | Trivalent Zinc |
| 3474-06-06-NWO-SS | 9/16-18 UNF | 9/16-18 UNF | Stainless Steel | - |
| 3474-06-06-NWO-SS-VITON | 9/16-18 UNF | 9/16-18 UNF | Stainless Steel | - |
| 3474-06-06-NWO-VITON | 9/16-18 UNF | 9/16-18 UNF | Steel | Trivalent Zinc |
| 3474-08-06-NWO | 3/4-16 UNF | 9/16-18 UNF | Steel | Trivalent Zinc |
| 3474-08-08-NWO | 3/4-16 UNF | 3/4-16 UNF | Steel | Trivalent Zinc |
| 3474-08-08-NWO-SS | 3/4-16 UNF | 3/4-16 UNF | Stainless Steel | - |
| 3474-08-08-NWO-SS-VITON | 3/4-16 UNF | 3/4-16 UNF | Stainless Steel | - |
| 3474-08-08-NWO-VITON | 3/4-16 UNF | 3/4-16 UNF | Steel | Trivalent Zinc |
| 3474-08-12-NWO | 3/4-16 UNF | 1-1/16-12 UN | Steel | Trivalent Zinc |
| 3474-10-08-NWO | 7/8-14 UNF | 3/4-16 UNF | Steel | Trivalent Zinc |
| 3474-10-08-NWO-SS | 7/8-14 UNF | 3/4-16 UNF | Stainless Steel | - |
| 3474-10-10-NWO | 7/8-14 UNF | 7/8-14 UNF | Steel | Trivalent Zinc |
| 3474-10-10-NWO-SS | 7/8-14 UNF | 7/8-14 UNF | Stainless Steel | - |
| 3474-12-08-NWO | 1-1/16-12 UN | 3/4-16 UNF | Steel | Trivalent Zinc |
| 3474-12-10-NWO | 1-1/16-12 UN | 7/8-14 UNF | Steel | Trivalent Zinc |
| 3474-12-12-NWO | 1-1/16-12 UN | 1-1/16-12 UN | Steel | Trivalent Zinc |
| 3474-12-12-NWO-SS | 1-1/16-12 UN | 1-1/16-12 UN | Stainless Steel | - |
| 3474-12-12-NWO-SS-VITON | 1-1/16-12 UN | 1-1/16-12 UN | Stainless Steel | - |
| 3474-12-12-NWO-VITON | 1-1/16-12 UN | 1-1/16-12 UN | Steel | Trivalent Zinc |
| 3474-12-16-NWO | 1-1/16-12 UN | 1-5/16-12 UN | Steel | Trivalent Zinc |
| 3474-16-12-NWO | 1-5/16-12 UN | 1-1/16-12 UN | Steel | Trivalent Zinc |
| 3474-16-12-NWO-SS | 1-5/16-12 UN | 1-1/16-12 UN | Stainless Steel | - |
| 3474-16-16-NWO | 1-5/16-12 UN | 1-5/16-12 UN | Steel | Trivalent Zinc |
| 3474-16-16-NWO-SS | 1-5/16-12 UN | 1-5/16-12 UN | Stainless Steel | - |
| 3474-16-16-NWO-VITON | 1-5/16-12 UN | 1-5/16-12 UN | Steel | Trivalent Zinc |
| 3474-20-20-NWO | 1-5/8-12 UN | 1-5/8-12 UN | Steel | Trivalent Zinc |
| 3474-20-20-NWO-SS | 1-5/8-12 UN | 1-5/8-12 UN | Stainless Steel | - |
| 3474-24-24-NWO | 1-7/8-12 UN | 1-7/8-12 UN | Steel | Trivalent Zinc |
| 3474-24-24-NWO-SS | 1-7/8-12 UN | 1-7/8-12 UN | Stainless Steel | - |
| 3474-24-24-NWO-VITON | 1-7/8-12 UN | 1-7/8-12 UN | Steel | Trivalent Zinc |
| 3474-32-32-NWO | 2-1/2-12 UN | 2-1/2-12 UN | Steel | Trivalent Zinc |
| 3474-32-32-NWO-SS | 2-1/2-12 UN | 2-1/2-12 UN | Stainless Steel | - |
| 3474-32-32-NWO-VITON | 2-1/2-12 UN | 2-1/2-12 UN | Steel | Trivalent Zinc |
Description
SAE J1926 Adjustable O-Ring Boss Nipple | Male Adjustable ORB x Male ORB
For connecting two SAE ports using an adjustable nut for alignment.
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male Adjustable ORB |
| Side 2 Connection Type | MetaobjectDrop |
