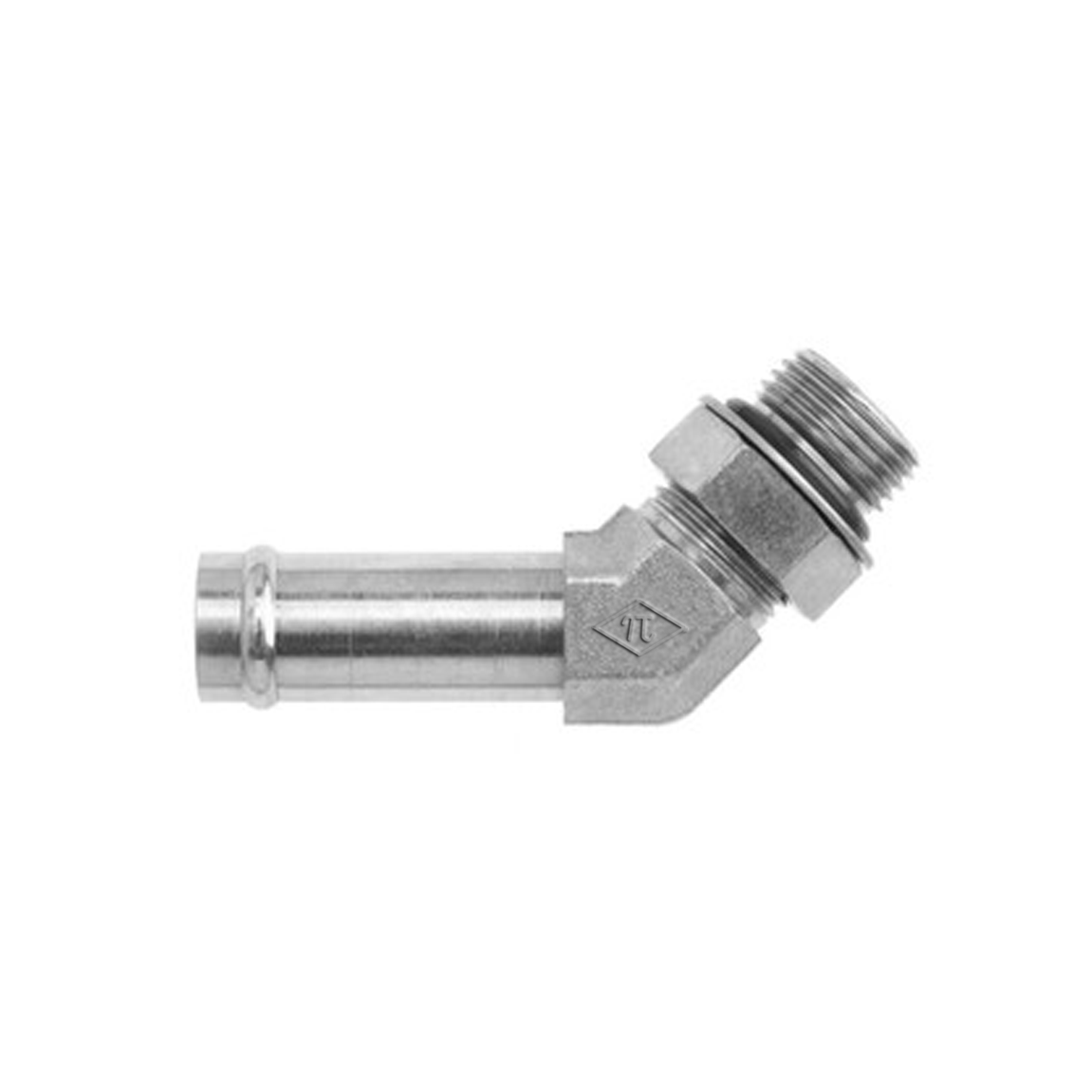

4603-NWO-FG Hose Bead x Male Adjustable ORB
SAE J1231 Hose Bead 45¡ã Adjustable Port Elbow | Hose Bead x Male Adjustable ORB
Connection Details
| PART NUMBER ↑ | SIDE 1 HOSE ID | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 4603-04-04-NWO-FG | 1/4" | 7/16-20 UNF | Steel | Trivalent Zinc |
| 4603-04-06-NWO-FG | 1/4" | 9/16-18 UNF | Steel | Trivalent Zinc |
| 4603-06-04-NWO-FG | 3/8" | 7/16-20 UNF | Steel | Trivalent Zinc |
| 4603-06-06-NWO-FG | 3/8" | 9/16-18 UNF | Steel | Trivalent Zinc |
| 4603-08-06-NWO-FG | 1/2" | 9/16-18 UNF | Steel | Trivalent Zinc |
| 4603-08-08-NWO-FG | 1/2" | 3/4-16 UNF | Steel | Trivalent Zinc |
| 4603-10-08-NWO-FG | 5/8" | 3/4-16 UNF | Steel | Trivalent Zinc |
| 4603-10-10-NWO-FG | 5/8" | 7/8-14 UNF | Steel | Trivalent Zinc |
| 4603-10-12-NWO-FG | 5/8" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| 4603-12-08-NWO-FG | 3/4" | 3/4-16 UNF | Steel | Trivalent Zinc |
| 4603-12-10-NWO-FG | 3/4" | 7/8-14 UNF | Steel | Trivalent Zinc |
| 4603-12-12-NWO-FG | 3/4" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| 4603-12-16-NWO-FG | 3/4" | 1-5/16-12 UN | Steel | Trivalent Zinc |
| 4603-14-12-NWO-FG | 7/8" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| 4603-16-12-NWO-FG | 1" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| 4603-16-16-NWO-FG | 1" | 1-5/16-12 UN | Steel | Trivalent Zinc |
| 4603-16-20-NWO-FG | 1" | 1-5/8-12 UN | Steel | Trivalent Zinc |
| 4603-20-12-NWO-FG | 1-1/4" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| 4603-20-16-NWO-FG | 1-1/4" | 1-5/16-12 UN | Steel | Trivalent Zinc |
| 4603-20-20-NWO-FG | 1-1/4" | 1-5/8-12 UN | Steel | Trivalent Zinc |
| 4603-24-16-NWO-FG | 1-1/2" | 1-5/16-12 UN | Steel | Trivalent Zinc |
| 4603-24-20-NWO-FG | 1-1/2" | 1-5/8-12 UN | Steel | Trivalent Zinc |
| 4603-24-24-NWO-FG | 1-1/2" | 1-7/8-12 UN | Steel | Trivalent Zinc |
| 4603-32-32-NWO-FG | 2" | 2-1/2-12 UN | Steel | Trivalent Zinc |
Description
SAE J1231 Hose Bead 45¡ã Adjustable Port Elbow | Hose Bead x Male Adjustable ORB
Additional information
| Shape | 45° Elbow |
| Side 1 Connection Type | Beaded Hose Barb |
| Side 2 Connection Type | MetaobjectDrop |
