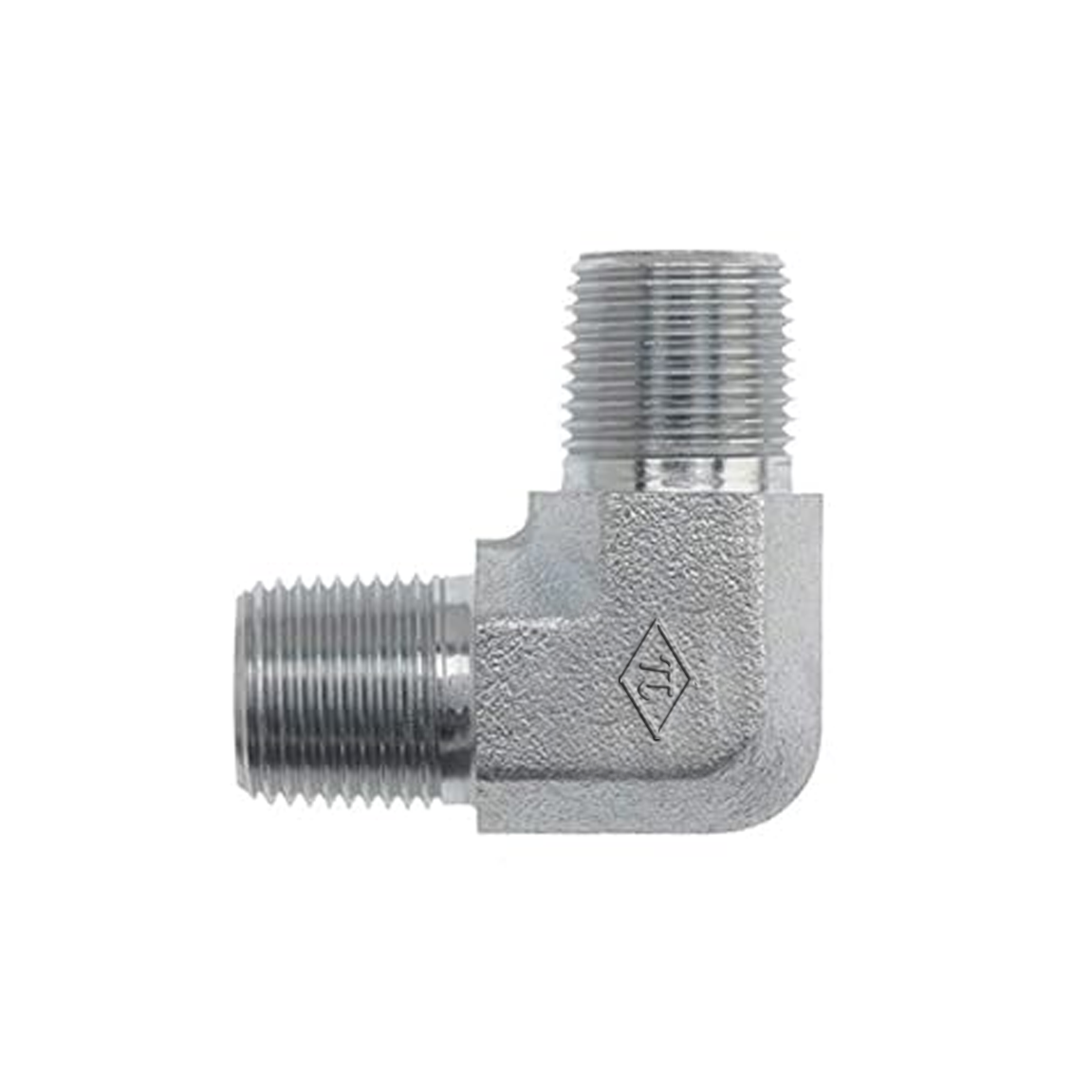

5500-FG Male Pipe x Male Pipe
SAE J514 Pipe 90° Male Elbow | Male Pipe x Male Pipe
For joining two pipe ends at a 90° angle without requiring pipe sealant.
Connection Details
| PART NUMBER ↑ | SIDE 1 PIPE SIZE | SIDE 2 PIPE SIZE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 5500-02-02-B | 1/8" | 1/8" | Brass | - |
| 5500-02-02-FG | 1/8" | 1/8" | Steel | Trivalent Zinc |
| 5500-02-02-SS | 1/8" | 1/8" | Stainless Steel | - |
| 5500-04-02-B | 1/4" | 1/8" | Brass | - |
| 5500-04-02-FG | 1/4" | 1/8" | Steel | Trivalent Zinc |
| 5500-04-02-SS | 1/4" | 1/8" | Stainless Steel | - |
| 5500-04-04-B | 1/4" | 1/4" | Brass | - |
| 5500-04-04-FG | 1/4" | 1/4" | Steel | Trivalent Zinc |
| 5500-04-04-SS | 1/4" | 1/4" | Stainless Steel | - |
| 5500-06-02-FG | 3/8" | 1/8" | Steel | Trivalent Zinc |
| 5500-06-04-B | 3/8" | 1/4" | Brass | - |
| 5500-06-04-FG | 3/8" | 1/4" | Steel | Trivalent Zinc |
| 5500-06-04-SS | 3/8" | 1/4" | Stainless Steel | - |
| 5500-06-06-B | 3/8" | 3/8" | Brass | - |
| 5500-06-06-FG | 3/8" | 3/8" | Steel | Trivalent Zinc |
| 5500-06-06-SS | 3/8" | 3/8" | Stainless Steel | - |
| 5500-08-04-FG | 1/2" | 1/4" | Steel | Trivalent Zinc |
| 5500-08-06-B | 1/2" | 3/8" | Brass | - |
| 5500-08-06-FG | 1/2" | 3/8" | Steel | Trivalent Zinc |
| 5500-08-06-SS | 1/2" | 3/8" | Stainless Steel | - |
| 5500-08-08-B | 1/2" | 1/2" | Brass | - |
| 5500-08-08-FG | 1/2" | 1/2" | Steel | Trivalent Zinc |
| 5500-08-08-FG-B | 1/2" | 1/2" | Brass | - |
| 5500-08-08-SS | 1/2" | 1/2" | Stainless Steel | - |
| 5500-12-06-FG | 3/4" | 3/8" | Steel | Trivalent Zinc |
| 5500-12-08-FG | 3/4" | 1/2" | Steel | Trivalent Zinc |
| 5500-12-08-SS | 3/4" | 1/2" | Stainless Steel | - |
| 5500-12-12-B | 3/4" | 3/4" | Brass | - |
| 5500-12-12-FG | 3/4" | 3/4" | Steel | Trivalent Zinc |
| 5500-12-12-SS | 3/4" | 3/4" | Stainless Steel | - |
| 5500-16-08-FG | 1" | 1/2" | Steel | Trivalent Zinc |
| 5500-16-12-FG | 1" | 3/4" | Steel | Trivalent Zinc |
| 5500-16-16-FG | 1" | 1" | Steel | Trivalent Zinc |
| 5500-16-16-SS | 1" | 1" | Stainless Steel | - |
| 5500-20-16-FG | 1-1/4" | 1" | Steel | Trivalent Zinc |
| 5500-20-20-FG | 1-1/4" | 1-1/4" | Steel | Trivalent Zinc |
| 5500-20-20-SS | 1-1/4" | 1-1/4" | Stainless Steel | - |
| 5500-24-24-FG | 1-1/2" | 1-1/2" | Steel | Trivalent Zinc |
| 5500-24-24-SS | 1-1/2" | 1-1/2" | Stainless Steel | - |
| 5500-32-32-FG | 2" | 2" | Steel | Trivalent Zinc |
| 5500-32-32-SS | 2" | 2" | Stainless Steel | - |
Description
SAE J514 Pipe 90° Male Elbow | Male Pipe x Male Pipe
For joining two pipe ends at a 90° angle without requiring pipe sealant.
Additional information
| Shape | 90°Elbow |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | MetaobjectDrop |
