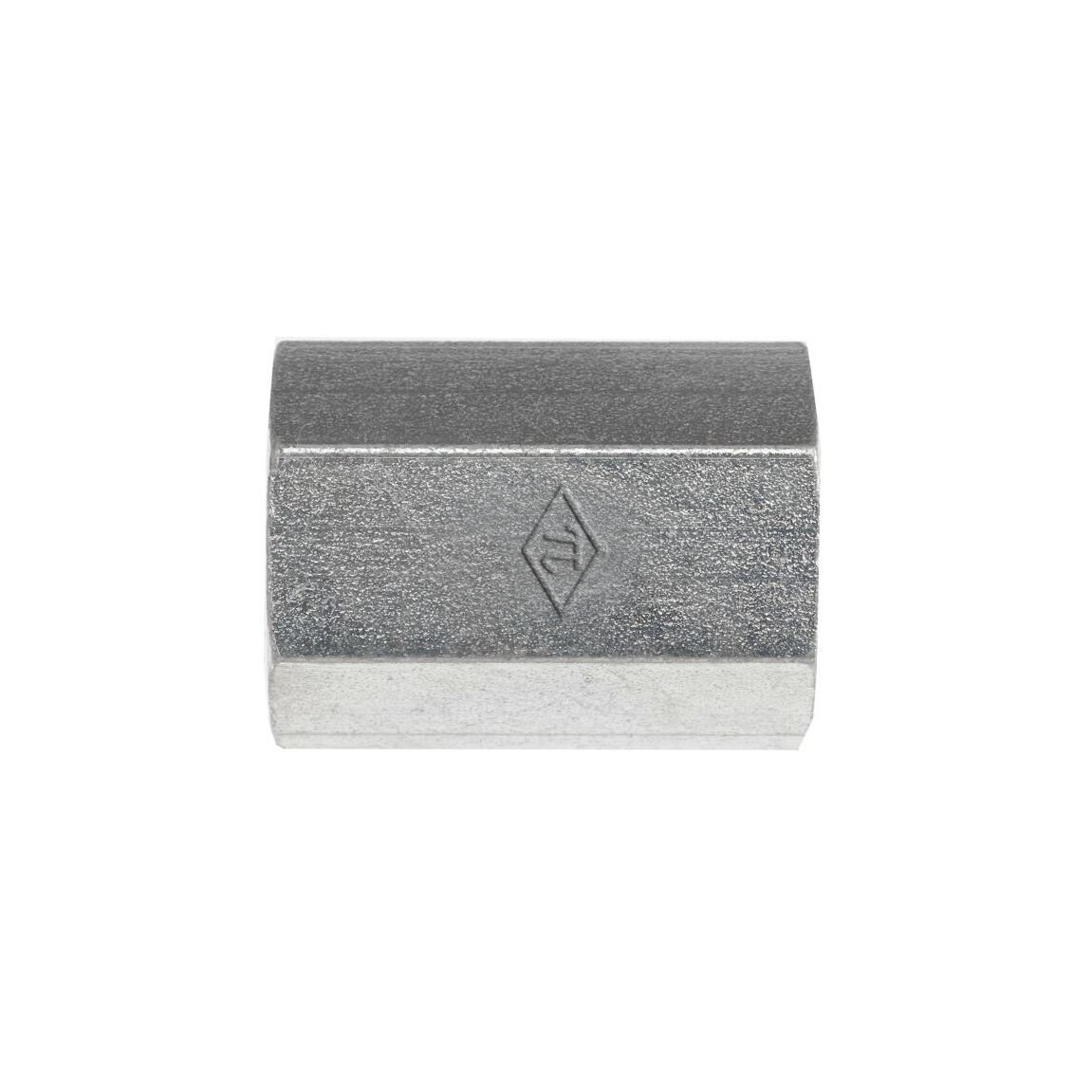

6425 Female ORB x Female ORB
SAE J1926 O-Ring Boss Union Coupling | Female ORB x Female ORB
Connection Details
| PART NUMBER ↑ | SIDE 1 THREAD TYPE | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 6425-04-04 | 7/16-20 UNF | 7/16-20 UNF | Steel | Trivalent Zinc |
| 6425-04-04-SS | 7/16-20 UNF | 7/16-20 UNF | Stainless Steel | - |
| 6425-06-06 | 9/16-18 UNF | 9/16-18 UNF | Steel | Trivalent Zinc |
| 6425-06-06-SS | 9/16-18 UNF | 9/16-18 UNF | Stainless Steel | - |
| 6425-08-08 | 3/4-16 UNF | 3/4-16 UNF | Steel | Trivalent Zinc |
| 6425-08-08-SS | 3/4-16 UNF | 3/4-16 UNF | Stainless Steel | - |
| 6425-10-10 | 7/8-14 UNF | 7/8-14 UNF | Steel | Trivalent Zinc |
| 6425-12-12 | 1-1/16-12 UN | 1-1/16-12 UN | Steel | Trivalent Zinc |
| 6425-12-12-SS | 1-1/16-12 UN | 1-1/16-12 UN | Stainless Steel | - |
| 6425-16-16 | 1-5/16-12 UN | 1-5/16-12 UN | Steel | Trivalent Zinc |
| 6425-16-16-SS | 1-5/16-12 UN | 1-5/16-12 UN | Stainless Steel | - |
| 6425-20-20 | 1-5/8-12 UN | 1-5/8-12 UN | Steel | Trivalent Zinc |
| 6425-20-20-SS | 1-5/8-12 UN | 1-5/8-12 UN | Stainless Steel | - |
| 6425-24-24 | 1-7/8-12 UN | 1-7/8-12 UN | Steel | Trivalent Zinc |
| 6425-24-24-SS | 1-7/8-12 UN | 1-7/8-12 UN | Stainless Steel | - |
Description
SAE J1926 O-Ring Boss Union Coupling | Female ORB x Female ORB
Additional information
| Shape | Straight |
| Side 1 Connection Type | Female ORB |
| Side 2 Connection Type | MetaobjectDrop |
