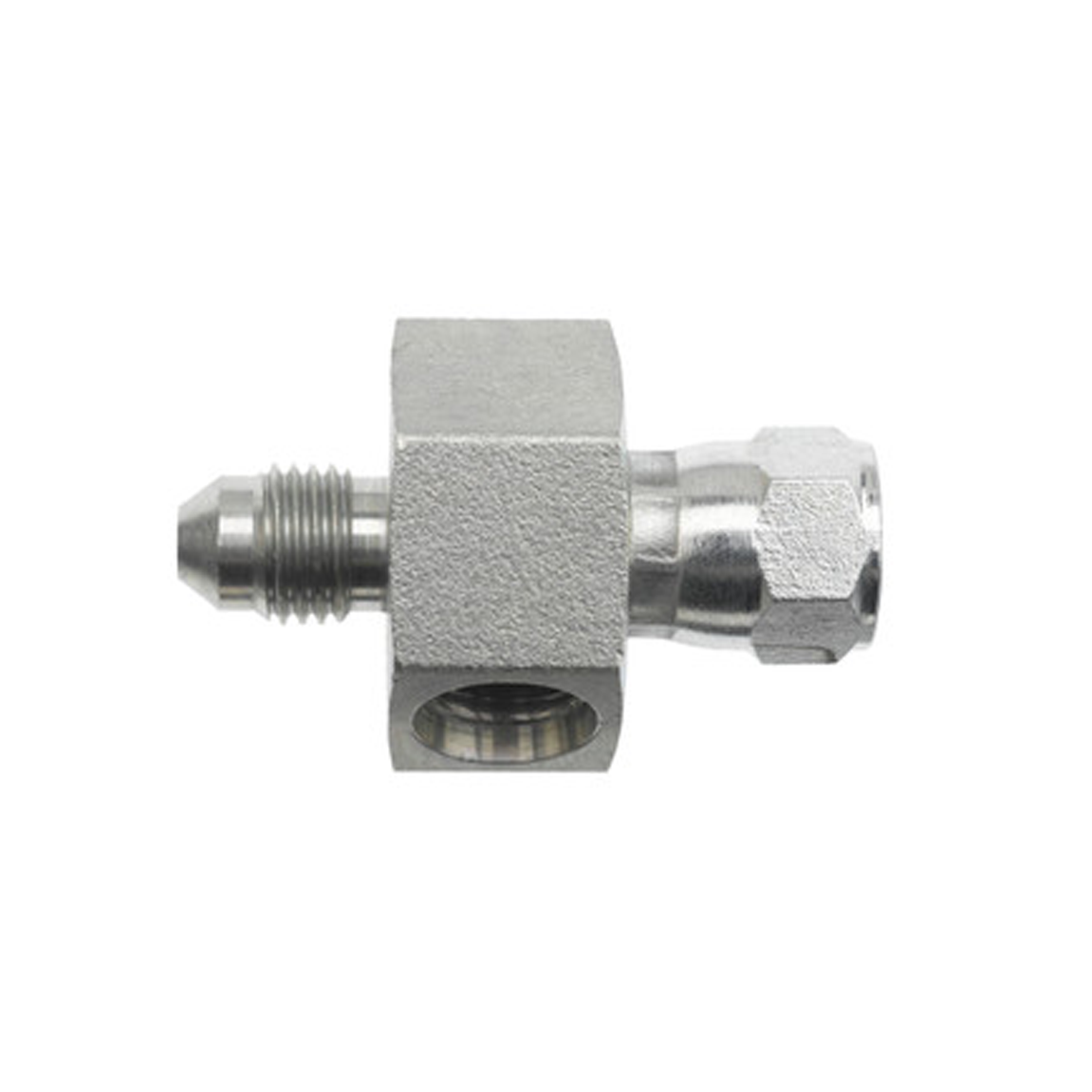

6564 Male JIC x Female JIC Swivel xFemale ORB
SAE J514 37¡ã Flare Swivel Adapter ORB Diagnostic Port | Male JIC x Female JIC Swivel x Female ORB
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 TUBE OD | SIDE 3 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|---|
| 6564-04-04-04 | 1/4" | 1/4" | 7/16-20 UNF | Steel | Trivalent Zinc |
| 6564-06-06-04 | 3/8" | 3/8" | 7/16-20 UNF | Steel | Trivalent Zinc |
| 6564-08-08-04 | 1/2" | 1/2" | 7/16-20 UNF | Steel | Trivalent Zinc |
| 6564-10-10-04 | 5/8" | 5/8" | 7/16-20 UNF | Steel | Trivalent Zinc |
| 6564-12-12-04 | 3/4" | 3/4" | 7/16-20 UNF | Steel | Trivalent Zinc |
| 6564-16-16-04 | 1" | 1" | 7/16-20 UNF | Steel | Trivalent Zinc |
| 6564-20-20-04 | 1-1/4" | 1-1/4" | 7/16-20 UNF | Steel | Trivalent Zinc |
| 6564-24-24-04 | 1-1/2" | 1-1/2" | 7/16-20 UNF | Steel | Trivalent Zinc |
Description
SAE J514 37¡ã Flare Swivel Adapter ORB Diagnostic Port | Male JIC x Female JIC Swivel x Female ORB
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | MetaobjectDrop |
| Side 3 Connection Type | MetaobjectDrop |
