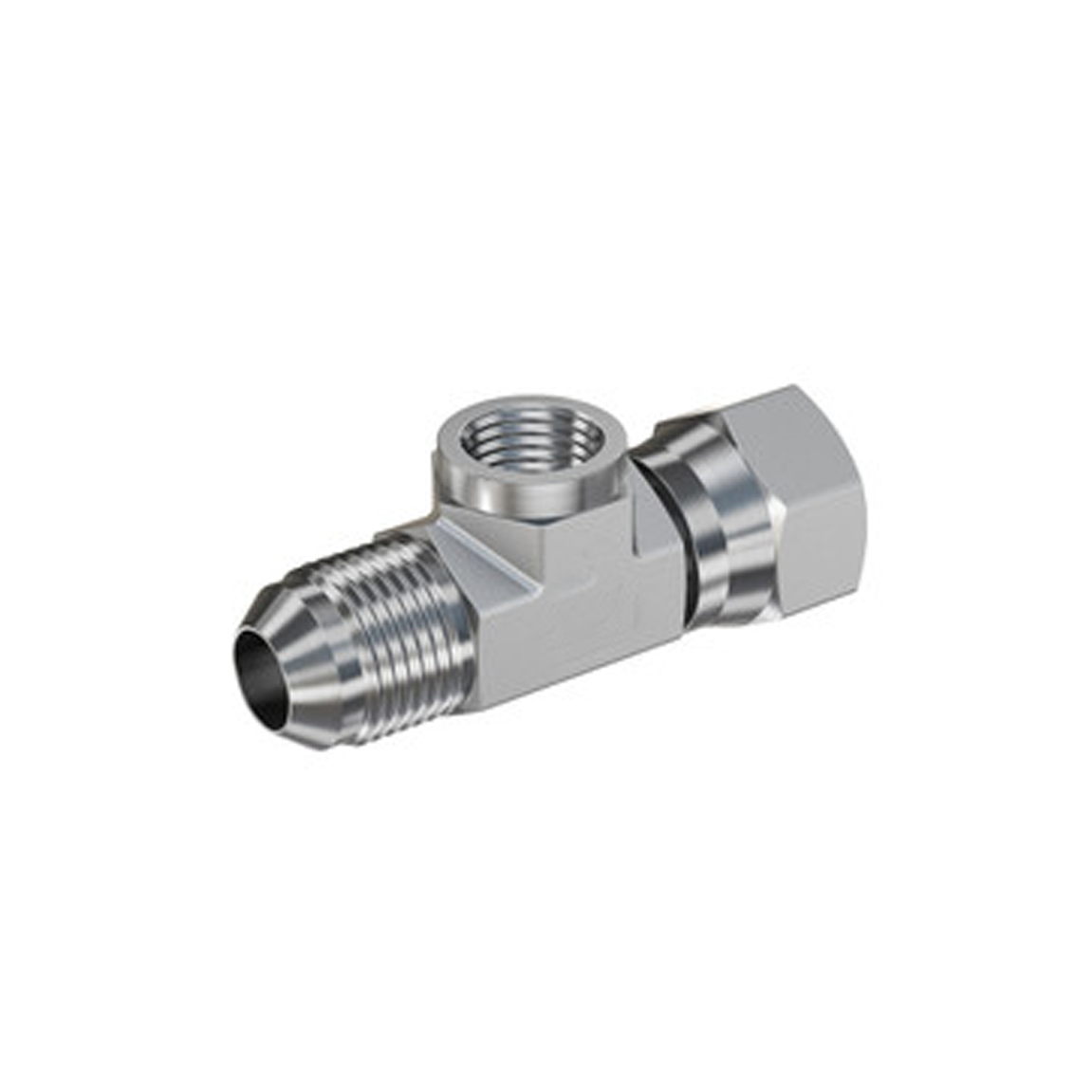

6574 Male JIC x Female JIC Swivel x Female Pipe

6574 Male JIC x Female JIC Swivel x Female Pipe

SAE J514 37¡ã Flare Swivel Adapter NPT Diagnostic Port | Male JIC x Female JIC Swivel x Female Pipe

Connection Details

SIDE 1

Connection Type:Male JIC
Standard:SAE J514 - Class 2A Thread
Role:Line/Tube Connection
SIDE 2

Connection Type:Female JIC Swivel
Standard:SAE J514 - Class 2B Thread
Role:Line Connection
SIDE 3

Connection Type:Female NPTF
Standard:SAE J476
Role:Port Connection

PART NUMBER ↑ SIDE 1 TUBE OD SIDE 2 TUBE OD SIDE 3 PIPE SIZE PRIMARY MATERIAL PLATING
1/4" 1/4" 1/4" Steel Trivalent Zinc
3/8" 3/8" 1/4" Steel Trivalent Zinc
1/2" 1/2" 1/4" Steel Trivalent Zinc
1/2" 1/2" 1/4" Stainless Steel -
5/8" 5/8" 1/4" Steel Trivalent Zinc
3/4" 3/4" 1/4" Steel Trivalent Zinc
1" 1" 1/4" Steel Trivalent Zinc
1-1/4" 1-1/4" 1/4" Steel Trivalent Zinc
1-1/4" 1-1/4" 1/4" Steel Trivalent Zinc
1-1/2" 1-1/2" 1/4" Steel Trivalent Zinc

Description

SAE J514 37¡ã Flare Swivel Adapter NPT Diagnostic Port | Male JIC x Female JIC Swivel x Female Pipe

Additional information

Shape Straight
Side 1 Connection Type Male JIC
Side 2 Connection Type MetaobjectDrop
Side 3 Connection Type MetaobjectDrop
