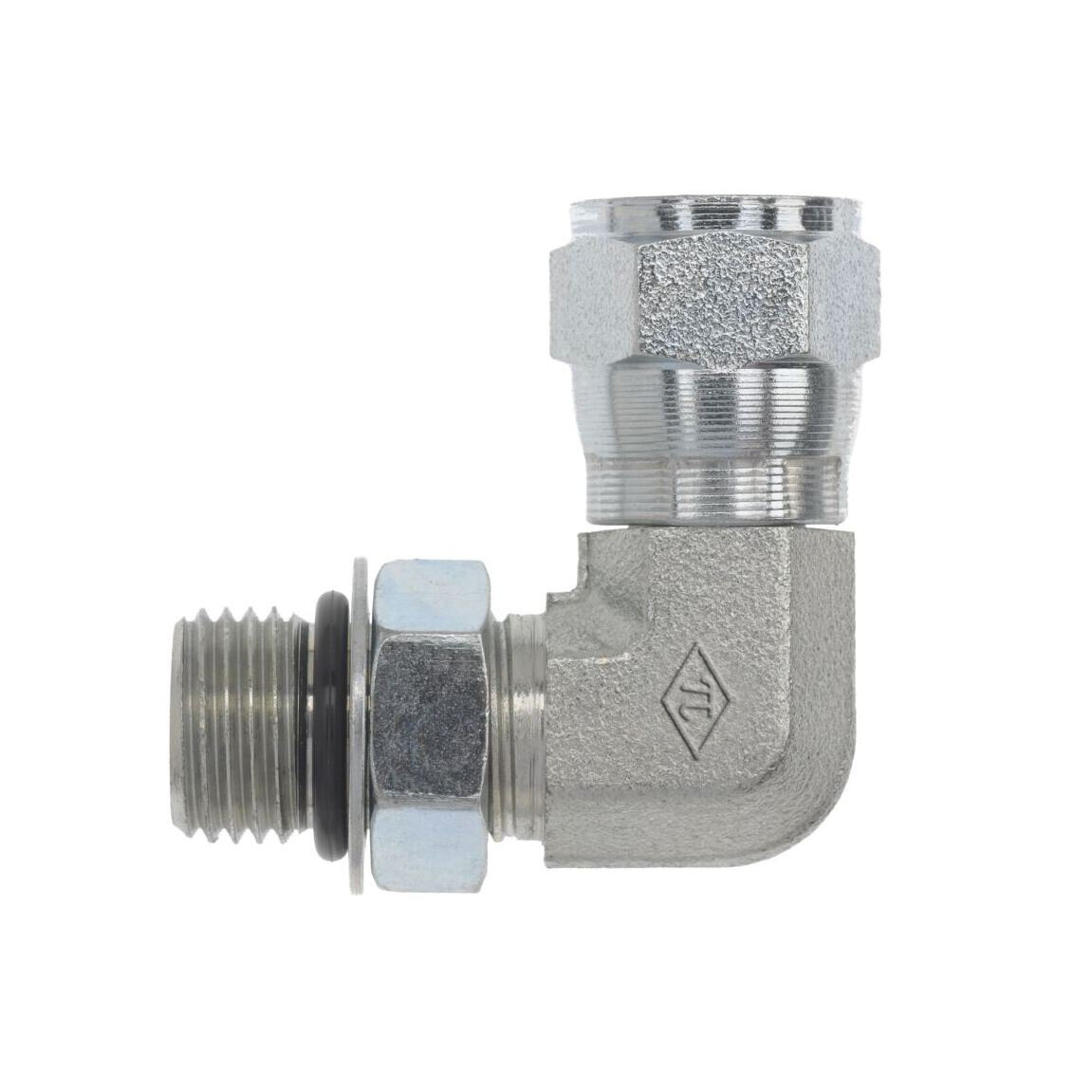

6809-NWO-FG Male Adjustable ORB x Female JIC Swivel
SAE J514 37° Flare Swivel 90° Adjustable Port Elbow | Male Adjustable ORB x Female JIC Swivel
Connection Details
| PART NUMBER ↑ | SIDE 1 THREAD TYPE | SIDE 2 TUBE OD | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 6809-04-04-NWO-FG | 7/16-20 UNF | 1/4" | Steel | Trivalent Zinc |
| 6809-04-04-NWO-SS | 7/16-20 UNF | 1/4" | Stainless Steel | - |
| 6809-04-06-NWO-FG | 7/16-20 UNF | 3/8" | Steel | Trivalent Zinc |
| 6809-06-04-NWO-FG | 9/16-18 UNF | 1/4" | Steel | Trivalent Zinc |
| 6809-06-06-NWO-FG | 9/16-18 UNF | 3/8" | Steel | Trivalent Zinc |
| 6809-06-06-NWO-SS | 9/16-18 UNF | 3/8" | Stainless Steel | - |
| 6809-06-06-NWO-SS-VITON | 9/16-18 UNF | 3/8" | Stainless Steel | - |
| 6809-06-08-NWO-FG | 9/16-18 UNF | 1/2" | Steel | Trivalent Zinc |
| 6809-08-06-NWO-FG | 3/4-16 UNF | 3/8" | Steel | Trivalent Zinc |
| 6809-08-08-NWO-FG | 3/4-16 UNF | 1/2" | Steel | Trivalent Zinc |
| 6809-08-08-NWO-SS | 3/4-16 UNF | 1/2" | Stainless Steel | - |
| 6809-08-12-NWO-SS | 3/4-16 UNF | 3/4" | Stainless Steel | - |
| 6809-10-08-NWO-FG | 7/8-14 UNF | 1/2" | Steel | Trivalent Zinc |
| 6809-10-10-NWO-FG | 7/8-14 UNF | 5/8" | Steel | Trivalent Zinc |
| 6809-10-10-NWO-FG-VITON | 7/8-14 UNF | 5/8" | Steel | Trivalent Zinc |
| 6809-10-10-NWO-SS | 7/8-14 UNF | 5/8" | Stainless Steel | - |
| 6809-12-10-NWO-FG | 1-1/16-12 UN | 5/8" | Steel | Trivalent Zinc |
| 6809-12-12-NWO-FG | 1-1/16-12 UN | 3/4" | Steel | Trivalent Zinc |
| 6809-12-12-NWO-SS | 1-1/16-12 UN | 3/4" | Stainless Steel | - |
| 6809-16-16-NWO-FG | 1-5/16-12 UN | 1" | Steel | Trivalent Zinc |
| 6809-16-16-NWO-FG-VITON | 1-5/16-12 UN | 1" | Steel | Trivalent Zinc |
| 6809-16-16-NWO-SS | 1-5/16-12 UN | 1" | Stainless Steel | - |
| 6809-20-20-NWO-FG | 1-5/8-12 UN | 1-1/4" | Steel | Trivalent Zinc |
| 6809-20-20-NWO-SS | 1-5/8-12 UN | 1-1/4" | Stainless Steel | - |
| 6809-24-24-NWO-FG | 1-7/8-12 UN | 1-1/2" | Steel | Trivalent Zinc |
| 6809-24-24-NWO-SS | 1-7/8-12 UN | 1-1/2" | Stainless Steel | - |
| 6809-32-32-NWO-FG | 2-1/2-12 UN | 2" | Steel | Trivalent Zinc |
| 6809-32-32-NWO-SS | 2-1/2-12 UN | 2" | Stainless Steel | - |
Description
SAE J514 37° Flare Swivel 90° Adjustable Port Elbow | Male Adjustable ORB x Female JIC Swivel
Additional information
| Shape | 90°Elbow |
| Side 1 Connection Type | Male Adjustable ORB |
| Side 2 Connection Type | MetaobjectDrop |
