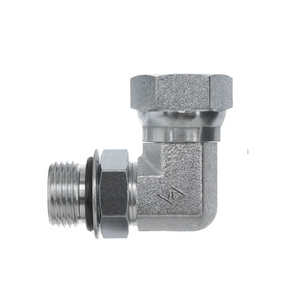

6901-NWO-FG Male Adjustable ORB x FemalePipe Swivel

SAE J514 NPSM Swivel 90° Adjustable Port Elbow | Male Adjustable ORB x Female Pipe Swivel

For connecting SAE port to an NPSM straight-thread using an adjustable nut and swivel for alignment.

Connection Details

SIDE 1

Connection Type:Male Adjustable ORB
Standard:SAE J1926
Role:Port Connection
SIDE 2

Connection Type:Female NPSM Swivel
Standard:SAE J514
Role:Line/Pipe Connection

PART NUMBER ↑	SIDE 1 THREAD TYPE	SIDE 2 THREAD TYPE	PRIMARY MATERIAL	PLATING
6901-04-02-NWO-FG	7/16-20 UNF	1/8-27 NPSM	Steel	Trivalent Zinc
6901-04-02-NWO-FG $2.87 ea.
6901-04-04-NWO-FG	7/16-20 UNF	1/4-18 NPSM	Steel	Trivalent Zinc
6901-04-04-NWO-FG $2.96 ea.
6901-04-04-NWO-SS	7/16-20 UNF	1/4-18 NPSM	Stainless Steel	-
6901-04-04-NWO-SS $74.46 ea.
6901-04-06-NWO-FG	7/16-20 UNF	3/8-18 NPSM	Steel	Trivalent Zinc
6901-04-06-NWO-FG $4.01 ea.
6901-04-08-NWO-FG	7/16-20 UNF	1/2-14 NPSM	Steel	Trivalent Zinc
6901-04-08-NWO-FG $4.09 ea.
6901-06-04-NWO-FG	9/16-18 UNF	1/4-18 NPSM	Steel	Trivalent Zinc
6901-06-04-NWO-FG $2.77 ea.
6901-06-04-NWO-SS	9/16-18 UNF	1/4-18 NPSM	Stainless Steel	-
6901-06-04-NWO-SS $229.67 ea.
6901-06-06-NWO-FG	9/16-18 UNF	3/8-18 NPSM	Steel	Trivalent Zinc
6901-06-06-NWO-FG $3.75 ea.
6901-06-06-NWO-SS	9/16-18 UNF	3/8-18 NPSM	Stainless Steel	-
6901-06-06-NWO-SS $54.76 ea.
6901-06-08-NWO-FG	9/16-18 UNF	1/2-14 NPSM	Steel	Trivalent Zinc
6901-06-08-NWO-FG $4.19 ea.
6901-06-12-NWO-SS	9/16-18 UNF	3/4-14 NPSM	Stainless Steel	-
6901-06-12-NWO-SS $95.23 ea.
6901-08-04-NWO-FG	3/4-16 UNF	1/4-18 NPSM	Steel	Trivalent Zinc
6901-08-04-NWO-FG $4.26 ea.
6901-08-06-NWO-FG	3/4-16 UNF	3/8-18 NPSM	Steel	Trivalent Zinc
6901-08-06-NWO-FG $4.20 ea.
6901-08-06-NWO-SS	3/4-16 UNF	3/8-18 NPSM	Stainless Steel	-
6901-08-06-NWO-SS $53.31 ea.
6901-08-08-NWO-FG	3/4-16 UNF	1/2-14 NPSM	Steel	Trivalent Zinc
6901-08-08-NWO-FG $4.74 ea.
6901-08-08-NWO-SS	3/4-16 UNF	1/2-14 NPSM	Stainless Steel	-
6901-08-08-NWO-SS $85.66 ea.
6901-08-12-NWO-FG	3/4-16 UNF	3/4-14 NPSM	Steel	Trivalent Zinc
6901-08-12-NWO-FG $8.48 ea.
6901-10-04-NWO-FG	7/8-14 UNF	1/4-18 NPSM	Steel	Trivalent Zinc
6901-10-04-NWO-FG $6.36 ea.
6901-10-06-NWO-FG	7/8-14 UNF	3/8-18 NPSM	Steel	Trivalent Zinc
6901-10-06-NWO-FG $5.12 ea.
6901-10-08-NWO-FG	7/8-14 UNF	1/2-14 NPSM	Steel	Trivalent Zinc
6901-10-08-NWO-FG $6.29 ea.
6901-10-08-NWO-SS	7/8-14 UNF	1/2-14 NPSM	Stainless Steel	-
6901-10-08-NWO-SS $87.19 ea.
6901-10-12-NWO-FG	7/8-14 UNF	3/4-14 NPSM	Steel	Trivalent Zinc
6901-10-12-NWO-FG $10.67 ea.
6901-10-12-NWO-SS	7/8-14 UNF	3/4-14 NPSM	Stainless Steel	-
6901-10-12-NWO-SS $84.51 ea.
6901-12-06-NWO-FG	1-1/16-12 UN	3/8-18 NPSM	Steel	Trivalent Zinc
6901-12-06-NWO-FG $8.85 ea.
6901-12-08-NWO-FG	1-1/16-12 UN	1/2-14 NPSM	Steel	Trivalent Zinc
6901-12-08-NWO-FG $7.80 ea.
6901-12-08-NWO-SS	1-1/16-12 UN	1/2-14 NPSM	Stainless Steel	-
6901-12-08-NWO-SS $96.04 ea.
6901-12-12-NWO-FG	1-1/16-12 UN	3/4-14 NPSM	Steel	Trivalent Zinc
6901-12-12-NWO-FG $8.43 ea.
6901-12-12-NWO-SS	1-1/16-12 UN	3/4-14 NPSM	Stainless Steel	-
6901-12-12-NWO-SS $110.44 ea.
6901-12-16-NWO-FG	1-1/16-12 UN	1-11-1/2 NPSM	Steel	Trivalent Zinc
6901-12-16-NWO-FG $21.81 ea.
6901-14-12-NWO-FG	1-3/16-12 UN	3/4-14 NPSM	Steel	Trivalent Zinc
6901-14-12-NWO-FG $19.14 ea.
6901-16-12-NWO-FG	1-5/16-12 UN	3/4-14 NPSM	Steel	Trivalent Zinc
6901-16-12-NWO-FG $11.07 ea.
6901-16-16-NWO-FG	1-5/16-12 UN	1-11-1/2 NPSM	Steel	Trivalent Zinc
6901-16-16-NWO-FG $12.91 ea.
6901-16-16-NWO-SS	1-5/16-12 UN	1-11-1/2 NPSM	Stainless Steel	-
6901-16-16-NWO-SS $153.32 ea.
6901-16-20-NWO-FG	1-5/16-12 UN	1-1/4-11-1/2 NPSM	Steel	Trivalent Zinc
6901-16-20-NWO-FG $29.09 ea.
6901-20-12-NWO-FG	1-5/8-12 UN	3/4-14 NPSM	Steel	Trivalent Zinc
6901-20-12-NWO-FG $39.14 ea.
6901-20-16-NWO-FG	1-5/8-12 UN	1-11-1/2 NPSM	Steel	Trivalent Zinc
6901-20-16-NWO-FG $34.37 ea.
6901-20-20-NWO-FG	1-5/8-12 UN	1-1/4-11-1/2 NPSM	Steel	Trivalent Zinc
6901-20-20-NWO-FG $23.02 ea.
6901-20-20-NWO-SS	1-5/8-12 UN	1-1/4-11-1/2 NPSM	Stainless Steel	-
6901-20-20-NWO-SS $152.29 ea.
6901-24-20-NWO-FG	1-7/8-12 UN	1-1/4-11-1/2 NPSM	Steel	Trivalent Zinc
6901-24-20-NWO-FG $35.25 ea.
6901-24-24-NWO-FG	1-7/8-12 UN	1-1/2-11-1/2 NPSM	Steel	Trivalent Zinc
6901-24-24-NWO-FG $49.66 ea.
6901-24-24-NWO-SS	1-7/8-12 UN	1-1/2-11-1/2 NPSM	Stainless Steel	-
6901-24-24-NWO-SS $254.27 ea.
6901-32-32-NWO-FG	2-1/2-12 UN	2-11-1/2 NPSM	Steel	Trivalent Zinc
6901-32-32-NWO-FG $85.92 ea.
6901-32-32-NWO-SS	2-1/2-12 UN	2-11-1/2 NPSM	Stainless Steel	-
6901-32-32-NWO-SS $409.37 ea.

Description

SAE J514 NPSM Swivel 90° Adjustable Port Elbow | Male Adjustable ORB x Female Pipe Swivel

For connecting SAE port to an NPSM straight-thread using an adjustable nut and swivel for alignment.

Additional information

Shape	90°Elbow
Side 1 Connection Type	Male Adjustable ORB
Side 2 Connection Type	MetaobjectDrop
