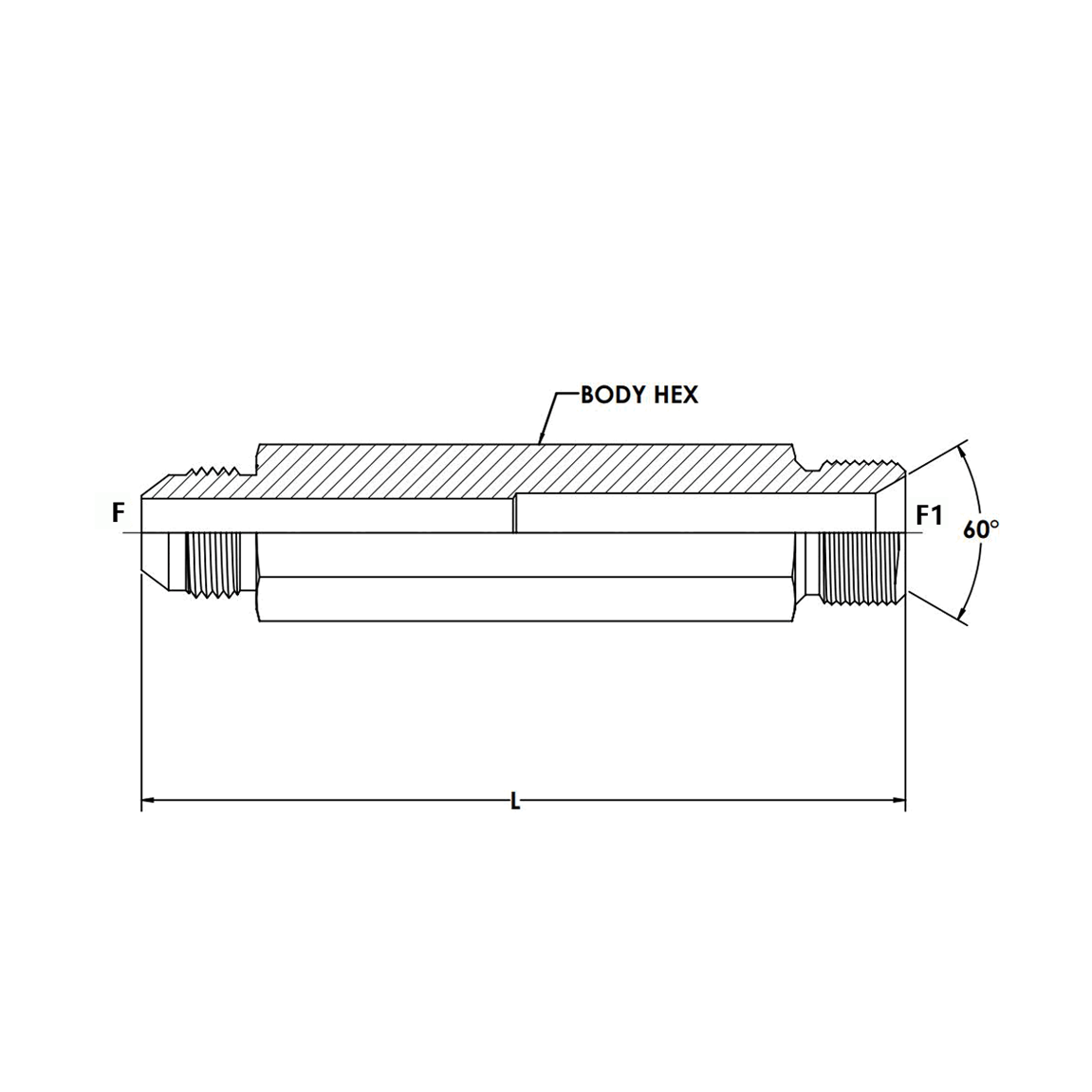

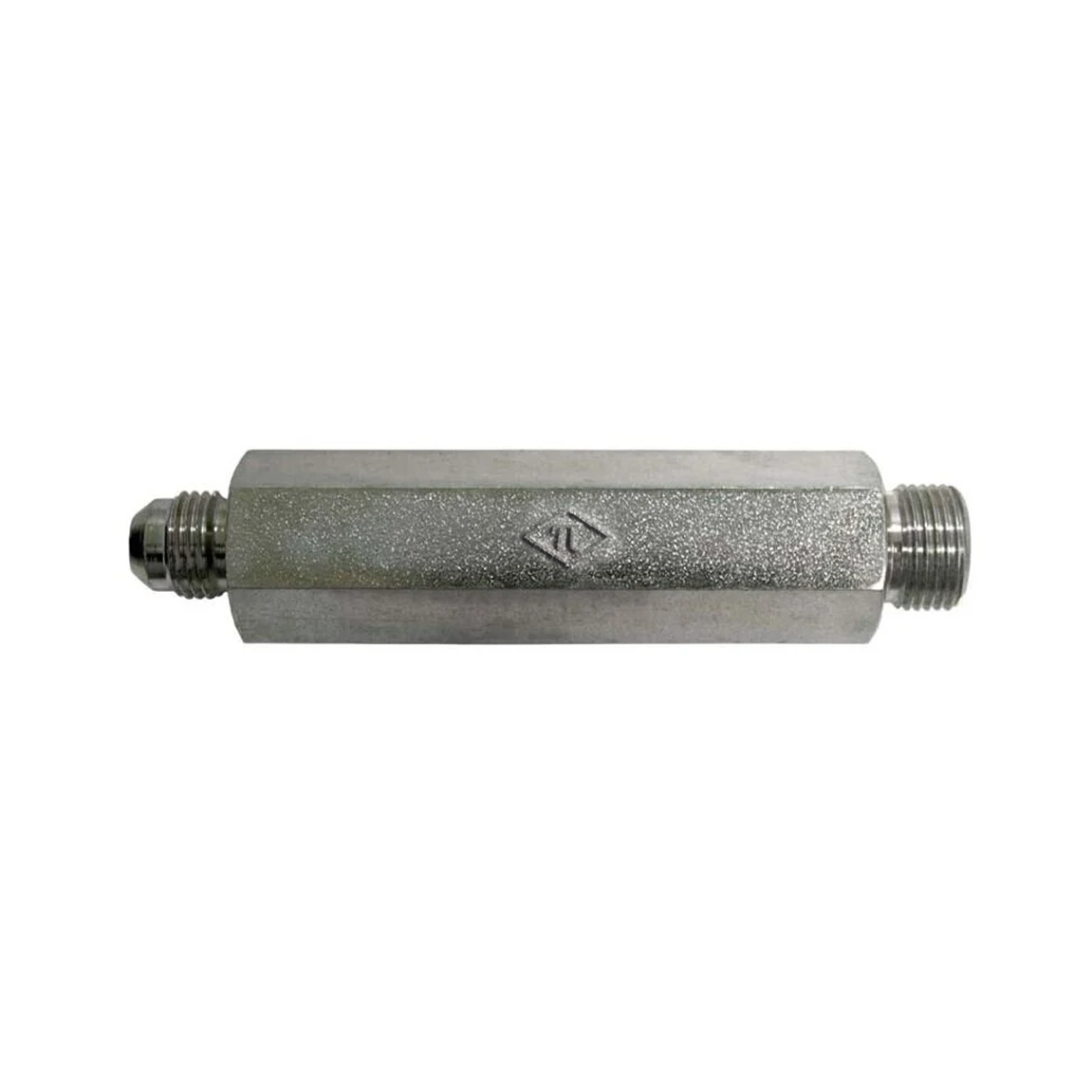

7002-L Male JIC x Male BSPP(Port/Line)
SAE J514 37° Flare Male BSPP Port/Line Long Connector | Male JIC x Male BSPP (Port/Line)
For long connections of 37° flared tubes or lines to british parallel lines or port. Requires bonded seal for port connection.
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 7002-L-06-06 | 3/8" | G - 3/8-19 | Steel | Trivalent Zinc |
| 7002-L-06-08 | 3/8" | G - 1/2-14 | Steel | Trivalent Zinc |
| 7002-L-08-06 | 1/2" | G - 3/8-19 | Steel | Trivalent Zinc |
| 7002-L-08-08 | 1/2" | G - 1/2-14 | Steel | Trivalent Zinc |
| 7002-L-12-08 | 3/4" | G - 1/2-14 | Steel | Trivalent Zinc |
| 7002-L-12-12 | 3/4" | G - 3/4-14 | Steel | Trivalent Zinc |
| 7002-L-16-12 | 1" | G - 3/4-14 | Steel | Trivalent Zinc |
Description
SAE J514 37° Flare Male BSPP Port/Line Long Connector | Male JIC x Male BSPP (Port/Line)
For long connections of 37° flared tubes or lines to british parallel lines or port. Requires bonded seal for port connection.
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | MetaobjectDrop |
