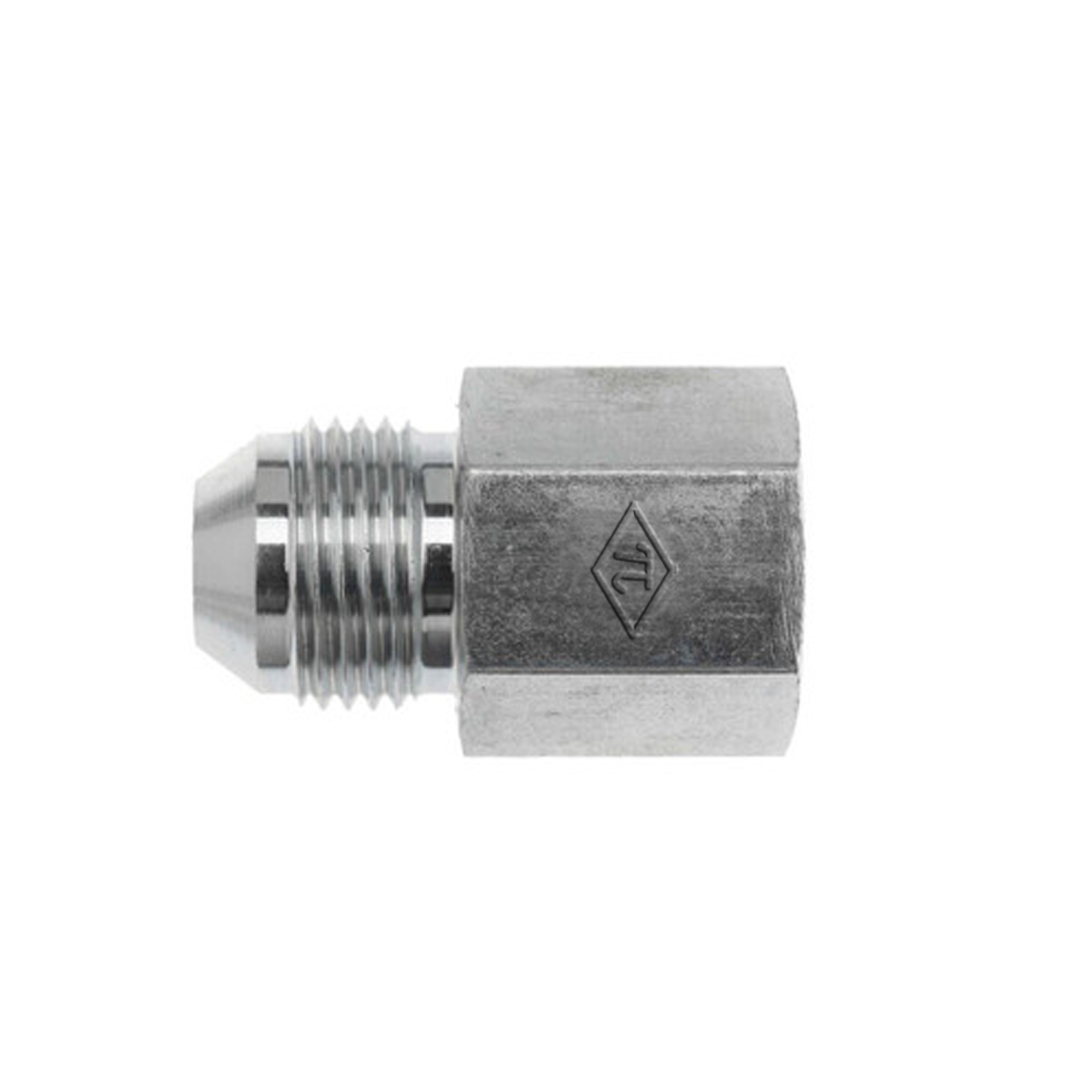

7003 Male JIC x Female BSPP
SAE J514 37° Flare Female BSPP Port Adapter | Male JIC x Female BSPP
For connecting 37° flared tubes or lines to british parallel port.
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 7003-04-02 | 1/4" | G - 1/8-28 | Steel | Trivalent Zinc |
| 7003-04-02-SS | 1/4" | G - 1/8-28 | Stainless Steel | - |
| 7003-04-04 | 1/4" | G - 1/4-19 | Steel | Trivalent Zinc |
| 7003-04-04-SS | 1/4" | G - 1/4-19 | Stainless Steel | - |
| 7003-04-06 | 1/4" | G - 3/8-19 | Steel | Trivalent Zinc |
| 7003-04-06-SS | 1/4" | G - 3/8-19 | Stainless Steel | - |
| 7003-04-08 | 1/4" | G - 1/2-14 | Steel | Trivalent Zinc |
| 7003-05-02 | 5/16" | G - 1/8-28 | Steel | Trivalent Zinc |
| 7003-05-04 | 5/16" | G - 1/4-19 | Steel | Trivalent Zinc |
| 7003-06-04 | 3/8" | G - 1/4-19 | Steel | Trivalent Zinc |
| 7003-06-04-SS | 3/8" | G - 1/4-19 | Stainless Steel | - |
| 7003-06-06 | 3/8" | G - 3/8-19 | Steel | Trivalent Zinc |
| 7003-06-06-SS | 3/8" | G - 3/8-19 | Stainless Steel | - |
| 7003-06-08 | 3/8" | G - 1/2-14 | Steel | Trivalent Zinc |
| 7003-06-08-SS | 3/8" | G - 1/2-14 | Stainless Steel | - |
| 7003-08-06 | 1/2" | G - 3/8-19 | Steel | Trivalent Zinc |
| 7003-08-06-SS | 1/2" | G - 3/8-19 | Stainless Steel | - |
| 7003-08-08 | 1/2" | G - 1/2-14 | Steel | Trivalent Zinc |
| 7003-08-08-SS | 1/2" | G - 1/2-14 | Stainless Steel | - |
| 7003-08-10 | 1/2" | G - 5/8-14 | Steel | Trivalent Zinc |
| 7003-08-10-SS | 1/2" | G - 5/8-14 | Stainless Steel | - |
| 7003-08-12 | 1/2" | G - 3/4-14 | Steel | Trivalent Zinc |
| 7003-08-12-SS | 1/2" | G - 3/4-14 | Stainless Steel | - |
| 7003-10-06 | 5/8" | G - 3/8-19 | Steel | Trivalent Zinc |
| 7003-10-08 | 5/8" | G - 1/2-14 | Steel | Trivalent Zinc |
| 7003-10-08-SS | 5/8" | G - 1/2-14 | Stainless Steel | - |
| 7003-10-10 | 5/8" | G - 5/8-14 | Steel | Trivalent Zinc |
| 7003-10-10-SS | 5/8" | G - 5/8-14 | Stainless Steel | - |
| 7003-10-12 | 5/8" | G - 3/4-14 | Steel | Trivalent Zinc |
| 7003-10-12-SS | 5/8" | G - 3/4-14 | Stainless Steel | - |
| 7003-12-08 | 3/4" | G - 1/2-14 | Steel | Trivalent Zinc |
| 7003-12-12 | 3/4" | G - 3/4-14 | Steel | Trivalent Zinc |
| 7003-12-12-SS | 3/4" | G - 3/4-14 | Stainless Steel | - |
| 7003-12-16 | 3/4" | G - 1-11 | Steel | Trivalent Zinc |
| 7003-12-16-B | 3/4" | G - 1-11 | Brass | - |
| 7003-12-16-SS | 3/4" | G - 1-11 | Stainless Steel | - |
| 7003-16-12 | 1" | G - 3/4-14 | Steel | Trivalent Zinc |
| 7003-16-12-SS | 1" | G - 3/4-14 | Stainless Steel | - |
| 7003-16-16 | 1" | G - 1-11 | Steel | Trivalent Zinc |
| 7003-16-16-SS | 1" | G - 1-11 | Stainless Steel | - |
| 7003-20-20 | 1-1/4" | G - 1-1/4-11 | Steel | Trivalent Zinc |
| 7003-20-20-SS | 1-1/4" | G - 1-1/4-11 | Stainless Steel | - |
| 7003-24-24 | 1-1/2" | G - 1-1/2-11 | Steel | Trivalent Zinc |
| 7003-24-24-SS | 1-1/2" | G - 1-1/2-11 | Stainless Steel | - |
| 7003-32-32 | 2" | G - 2-11 | Steel | Trivalent Zinc |
| 7003-32-32-SS | 2" | G - 2-11 | Stainless Steel | - |
Description
SAE J514 37° Flare Female BSPP Port Adapter | Male JIC x Female BSPP
For connecting 37° flared tubes or lines to british parallel port.
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | MetaobjectDrop |
