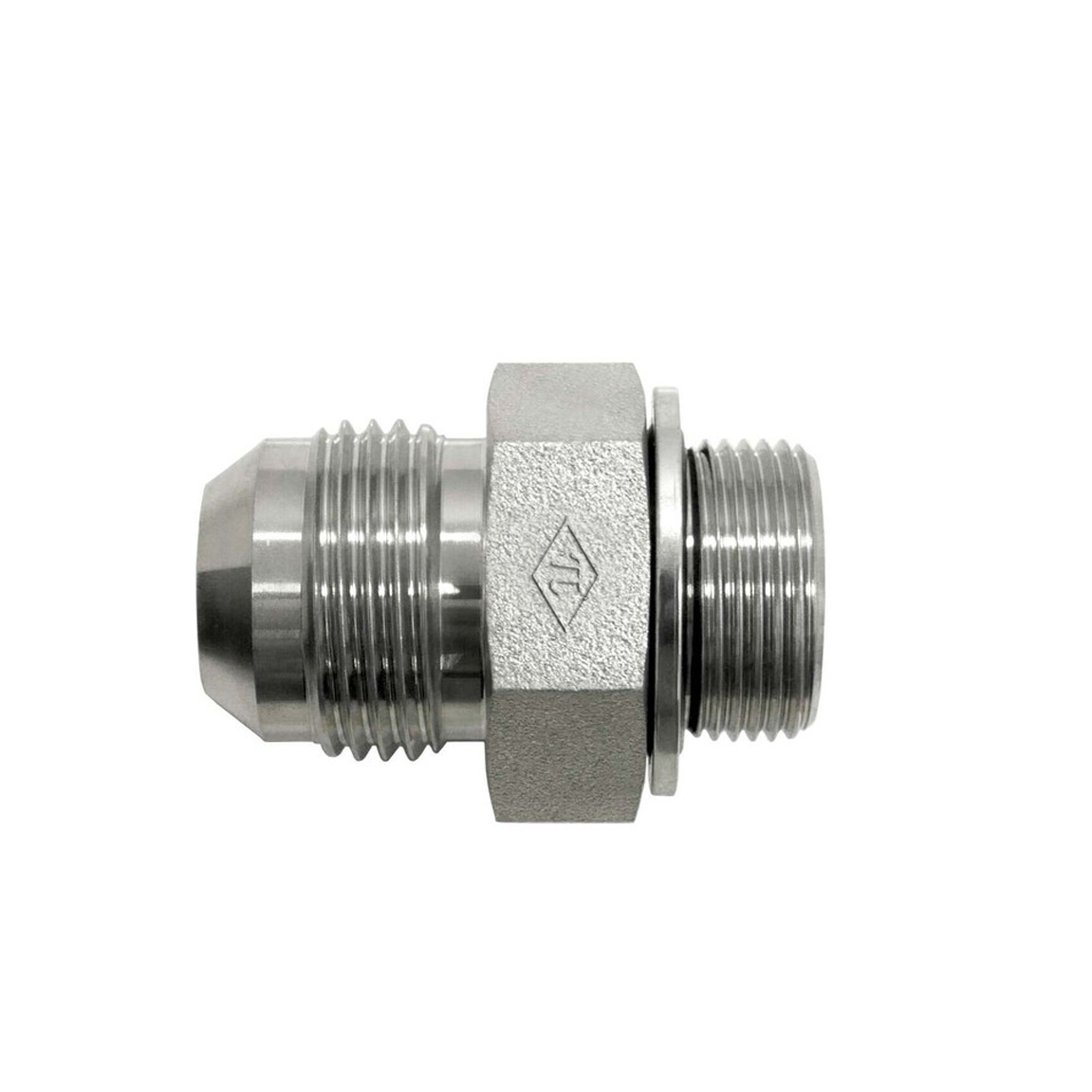

7005-DIN-HEAVY- BS
SAE J514 37° Flare/ISO 8434-1 Heavy Series Male Adapter, Bonded Seal Assembled | Male JIC x Male Metric Heavy Series DIN Compression / Dual Purpose Port
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 7005-04-S06-14-BS | 1/4" | M14X1.5 | Steel | Trivalent Zinc |
| 7005-04-S08-16-BS | 1/4" | M16X1.5 | Steel | Trivalent Zinc |
| 7005-08-S12-20-BS | 1/2" | M20X1.5 | Steel | Trivalent Zinc |
| 7005-08-S14-22-BS | 1/2" | M22X1.5 | Steel | Trivalent Zinc |
| 7005-08-S16-24-BS | 1/2" | M24X1.5 | Steel | Trivalent Zinc |
| 7005-10-S12-20-BS | 5/8" | M20X1.5 | Steel | Trivalent Zinc |
| 7005-12-S16-24-BS | 3/4" | M24X1.5 | Steel | Trivalent Zinc |
| 7005-12-S20-30-BS | 3/4" | M30X2.0 | Steel | Trivalent Zinc |
| 7005-12-S25-36-BS | 3/4" | M36X2.0 | Steel | Trivalent Zinc |
| 7005-16-S30-42-BS | 1" | M42X2.0 | Steel | Trivalent Zinc |
Description
SAE J514 37° Flare/ISO 8434-1 Heavy Series Male Adapter, Bonded Seal Assembled | Male JIC x Male Metric Heavy Series DIN Compression / Dual Purpose Port
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | MetaobjectDrop |
