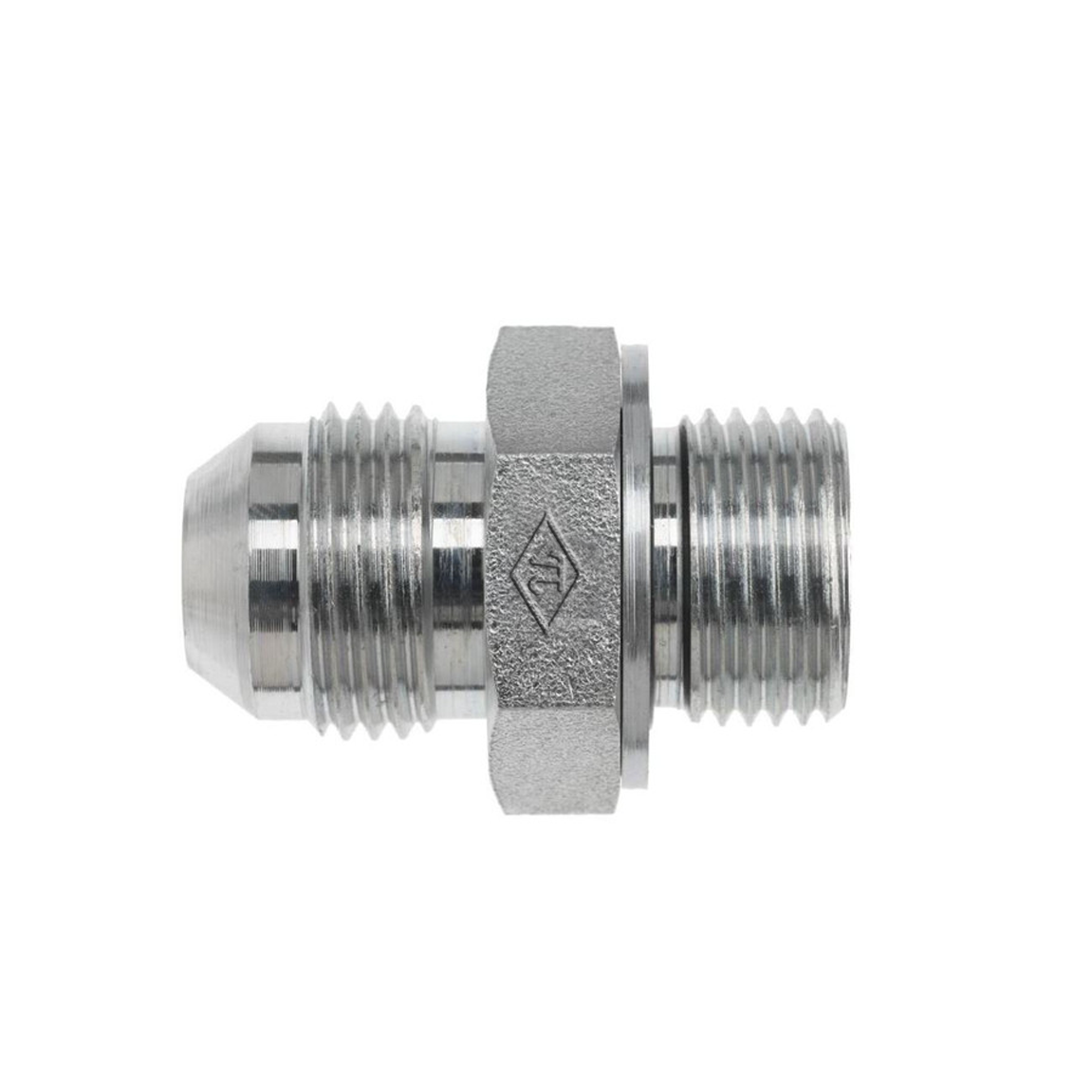

7005-DIN-LIGHT-BS
SAE J514 37° Flare DIN 2353 (Light) Tube Adapter Bonded Seal | Male JIC x Male Metric Light Series DIN Compression / Dual Purpose Port
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 7005-04-L06-12-BS | 1/4" | M12X1.5 | Steel | Trivalent Zinc |
| 7005-04-L08-14-BS | 1/4" | M14X1.5 | Steel | Trivalent Zinc |
| 7005-06-L10-16-BS | 3/8" | M16X1.5 | Steel | Trivalent Zinc |
| 7005-06-L12-18-BS | 3/8" | M18X1.5 | Steel | Trivalent Zinc |
| 7005-08-L10-16-BS | 1/2" | M16X1.5 | Steel | Trivalent Zinc |
| 7005-08-L12-18-BS | 1/2" | M18X1.5 | Steel | Trivalent Zinc |
| 7005-08-L15-22-BS | 1/2" | M22X1.5 | Steel | Trivalent Zinc |
| 7005-10-L15-22-BS | 5/8" | M22X1.5 | Steel | Trivalent Zinc |
| 7005-10-L18-26-BS | 5/8" | M26X1.5 | Steel | Trivalent Zinc |
| 7005-12-L15-22-BS | 3/4" | M22X1.5 | Steel | Trivalent Zinc |
| 7005-12-L18-26-BS | 3/4" | M26X1.5 | Steel | Trivalent Zinc |
| 7005-12-L18-26-SS-BS | 3/4" | M26X1.5 | Stainless Steel | - |
| 7005-12-L22-30-BS | 3/4" | M30X2.0 | Steel | Trivalent Zinc |
| 7005-16-L28-36-BS | 1" | M36X2.0 | Steel | Trivalent Zinc |
Description
SAE J514 37° Flare DIN 2353 (Light) Tube Adapter Bonded Seal | Male JIC x Male Metric Light Series DIN Compression / Dual Purpose Port
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | MetaobjectDrop |
