7007-DIN-HEAVY

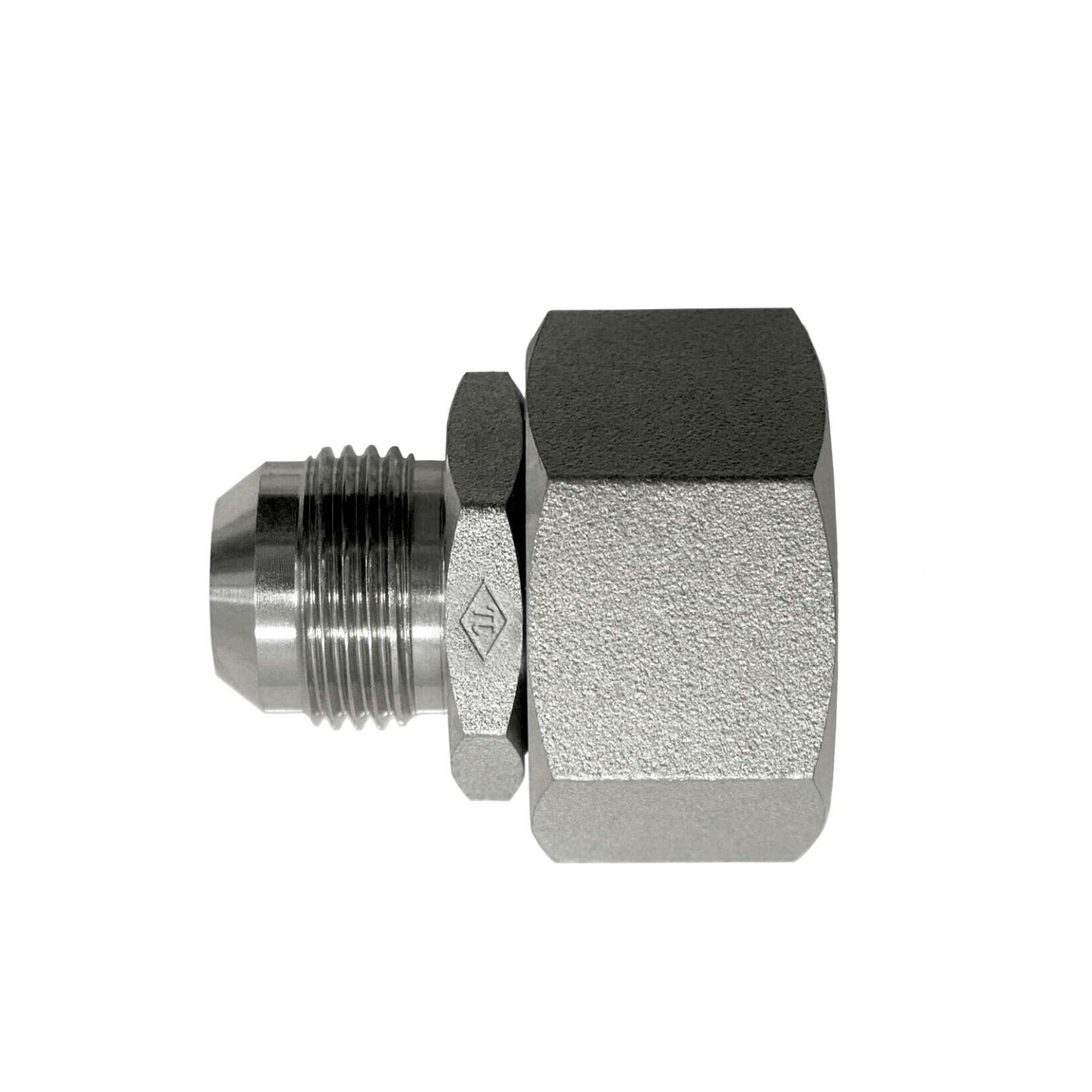

SAE J514 37° Flare DIN (S) Swivel Adapter | Male JIC x Female DKO Swivel (Heavy)
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 7007-04-S06-14 | 1/4" | M14X1.5 | Steel | Trivalent Zinc |
| 7007-04-S06-14-SS | 1/4" | M14X1.5 | Stainless Steel | - |
| 7007-04-S10-18 | 1/4" | M18X1.5 | Steel | Trivalent Zinc |
| 7007-06-S08-16 | 3/8" | M16X1.5 | Steel | Trivalent Zinc |
| 7007-06-S10-18 | 3/8" | M18X1.5 | Steel | Trivalent Zinc |
| 7007-06-S10-18-SS | 3/8" | M18X1.5 | Stainless Steel | - |
| 7007-06-S12-20 | 3/8" | M20X1.5 | Steel | Trivalent Zinc |
| 7007-06-S12-20-SS | 3/8" | M20X1.5 | Stainless Steel | - |
| 7007-06-S14-22 | 3/8" | M22X1.5 | Steel | Trivalent Zinc |
| 7007-08-S12-20 | 1/2" | M20X1.5 | Steel | Trivalent Zinc |
| 7007-08-S12-20-SS | 1/2" | M20X1.5 | Stainless Steel | - |
| 7007-08-S16-24 | 1/2" | M24X1.5 | Steel | Trivalent Zinc |
| 7007-08-S16-24-SS | 1/2" | M24X1.5 | Stainless Steel | - |
| 7007-10-S12-20 | 5/8" | M20X1.5 | Steel | Trivalent Zinc |
| 7007-10-S12-20-SS | 5/8" | M20X1.5 | Stainless Steel | - |
| 7007-10-S20-30 | 5/8" | M30X2.0 | Steel | Trivalent Zinc |
| 7007-12-S14-22 | 3/4" | M22X1.5 | Steel | Trivalent Zinc |
| 7007-12-S16-24 | 3/4" | M24X1.5 | Steel | Trivalent Zinc |
| 7007-12-S20-30 | 3/4" | M30X2.0 | Steel | Trivalent Zinc |
| 7007-12-S20-30-SS | 3/4" | M30X2.0 | Stainless Steel | - |
| 7007-12-S25-36 | 3/4" | M36X2.0 | Steel | Trivalent Zinc |
| 7007-12-S25-36-SS | 3/4" | M36X2.0 | Stainless Steel | - |
| 7007-16-S25-36 | 1" | M36X2.0 | Steel | Trivalent Zinc |
| 7007-16-S30-42 | 1" | M42X2.0 | Steel | Trivalent Zinc |
| 7007-16-S30-42-SS | 1" | M42X2.0 | Stainless Steel | - |
| 7007-20-S30-42 | 1-1/4" | M42X2.0 | Steel | Trivalent Zinc |
| 7007-20-S30-42-SS | 1-1/4" | M42X2.0 | Stainless Steel | - |
| 7007-20-S38-52 | 1-1/4" | M52X2.0 | Steel | Trivalent Zinc |
| 7007-24-S38-52 | 1-1/2" | M52X2.0 | Steel | Trivalent Zinc |
| 7007-24-S38-52-SS | 1-1/2" | M52X2.0 | Stainless Steel | - |
Description
SAE J514 37° Flare DIN (S) Swivel Adapter | Male JIC x Female DKO Swivel (Heavy)
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | MetaobjectDrop |
