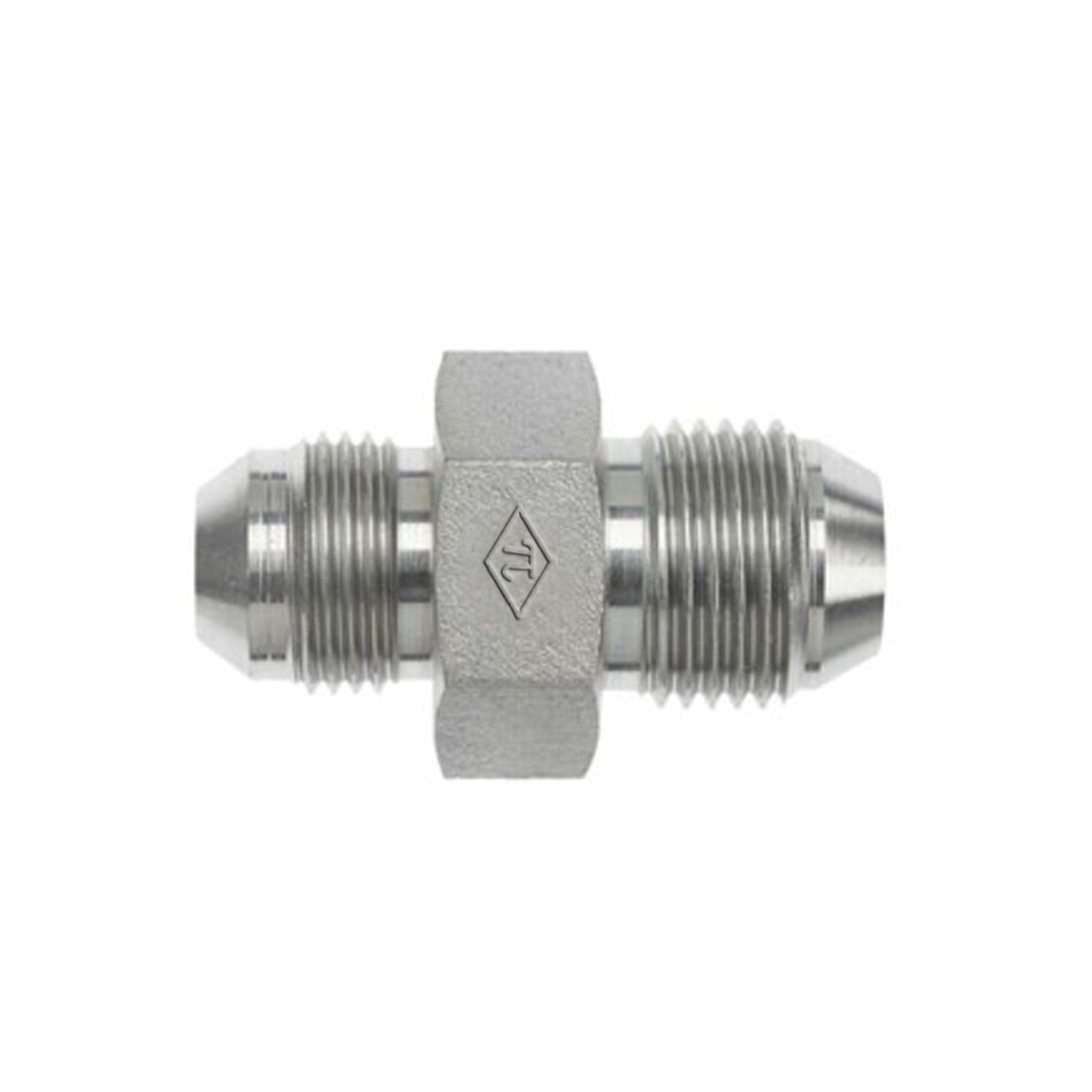

7008 Male JIC x Male JIS
SAE J514 37 Flare Male JIS Adapter | Male JIC x Male JIS
For connecting 37 flared tubes or lines to DIN light metric lines.
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 7008-04-02 | 1/4" | G - 1/8-28 | Steel | Trivalent Zinc |
| 7008-04-02-SS | 1/4" | G - 1/8-28 | Stainless Steel | - |
| 7008-04-04 | 1/4" | G - 1/4-19 | Steel | Trivalent Zinc |
| 7008-04-04-SS | 1/4" | G - 1/4-19 | Stainless Steel | - |
| 7008-04-06 | 1/4" | G - 3/8-19 | Steel | Trivalent Zinc |
| 7008-06-06 | 3/8" | G - 3/8-19 | Steel | Trivalent Zinc |
| 7008-06-06-SS | 3/8" | G - 3/8-19 | Stainless Steel | - |
| 7008-08-08 | 1/2" | G - 1/2-14 | Steel | Trivalent Zinc |
| 7008-08-08-SS | 1/2" | G - 1/2-14 | Stainless Steel | - |
| 7008-12-12 | 3/4" | G - 3/4-14 | Steel | Trivalent Zinc |
| 7008-12-12-SS | 3/4" | G - 3/4-14 | Stainless Steel | - |
Description
SAE J514 37 Flare Male JIS Adapter | Male JIC x Male JIS
For connecting 37 flared tubes or lines to DIN light metric lines.
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | MetaobjectDrop |
