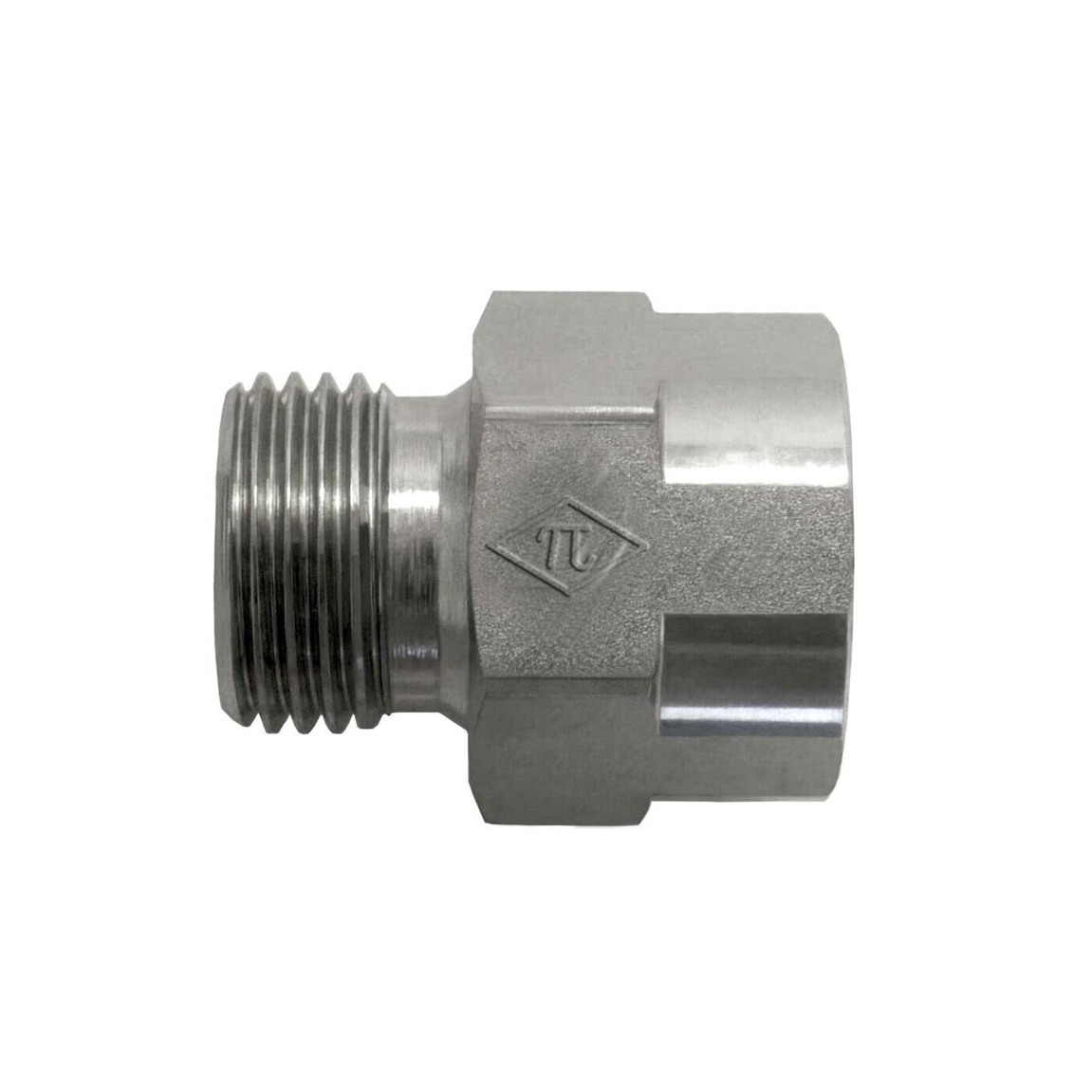

7017 Male BSPP x Female BSPP
ISO 1179 Female BSPP Gauge Port Connector | Male BSPP x Female BSPP
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 TUBE OD | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 7017-02-02 | G - 1/8-28 | G - 1/8-28 | Steel | Trivalent Zinc |
| 7017-02-04 | G - 1/8-28 | G - 1/4-19 | Steel | Trivalent Zinc |
| 7017-04-04 | G - 1/4-19 | G - 1/4-19 | Steel | Trivalent Zinc |
| 7017-04-06 | G - 1/4-19 | G - 3/8-19 | Steel | Trivalent Zinc |
| 7017-04-08 | G - 1/4-19 | G - 1/2-14 | Steel | Trivalent Zinc |
| 7017-06-04 | G - 3/8-19 | G - 1/4-19 | Steel | Trivalent Zinc |
| 7017-06-06 | G - 3/8-19 | G - 3/8-19 | Steel | Trivalent Zinc |
| 7017-06-08 | G - 3/8-19 | G - 1/2-14 | Steel | Trivalent Zinc |
| 7017-08-04 | G - 1/2-14 | G - 1/4-19 | Steel | Trivalent Zinc |
| 7017-08-06 | G - 1/2-14 | G - 3/8-19 | Steel | Trivalent Zinc |
| 7017-08-08 | G - 1/2-14 | G - 1/2-14 | Steel | Trivalent Zinc |
Description
ISO 1179 Female BSPP Gauge Port Connector | Male BSPP x Female BSPP
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male BSPP 60° Line/Port |
| Side 2 Connection Type | MetaobjectDrop |
