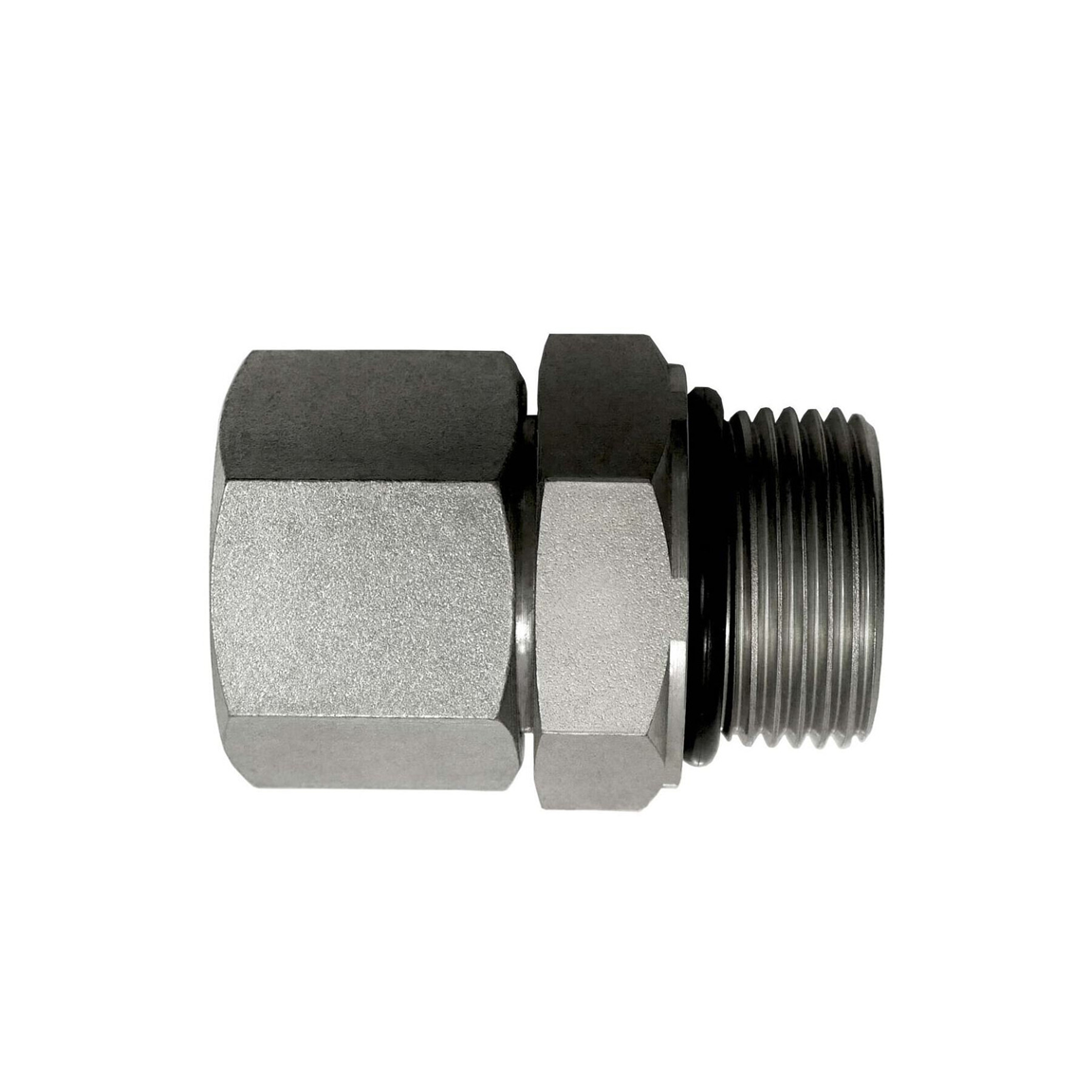

7022-ORR Female JIC Swivel x MaleBSPP ORR
SAE J514 37° Flare Swivel Male BSPP (Type G) Port Connector | Female JIC Swivel x Male BSPP ORR
For connecting JIC lines to british parallel port using an o-ring and retaining ring to seal and a swivel for alignment.
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 THREAD TYPE | SEAL MATERIAL | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|---|
| 7022-16-12-ORR | 1" | G - 3/4-14 | Buna-N (Nitrile) | Steel | Trivalent Zinc |
| 7022-16-16-ORR | 1" | G - 1-11 | Buna-N (Nitrile) | Steel | Trivalent Zinc |
| 7022-20-20-ORR | 1-1/4" | G - 1-1/4-11 | Buna-N (Nitrile) | Steel | Trivalent Zinc |
| 7022-24-24-ORR | 1-1/2" | G - 1-1/2-11 | Buna-N (Nitrile) | Steel | Trivalent Zinc |
| 7022-32-32-ORR | 2" | G - 2-11 | Buna-N (Nitrile) | Steel | Trivalent Zinc |
Description
SAE J514 37° Flare Swivel Male BSPP (Type G) Port Connector | Female JIC Swivel x Male BSPP ORR
For connecting JIC lines to british parallel port using an o-ring and retaining ring to seal and a swivel for alignment.
Additional information
| Shape | Straight |
| Side 1 Connection Type | Female JIC Swivel |
| Side 2 Connection Type | MetaobjectDrop |
