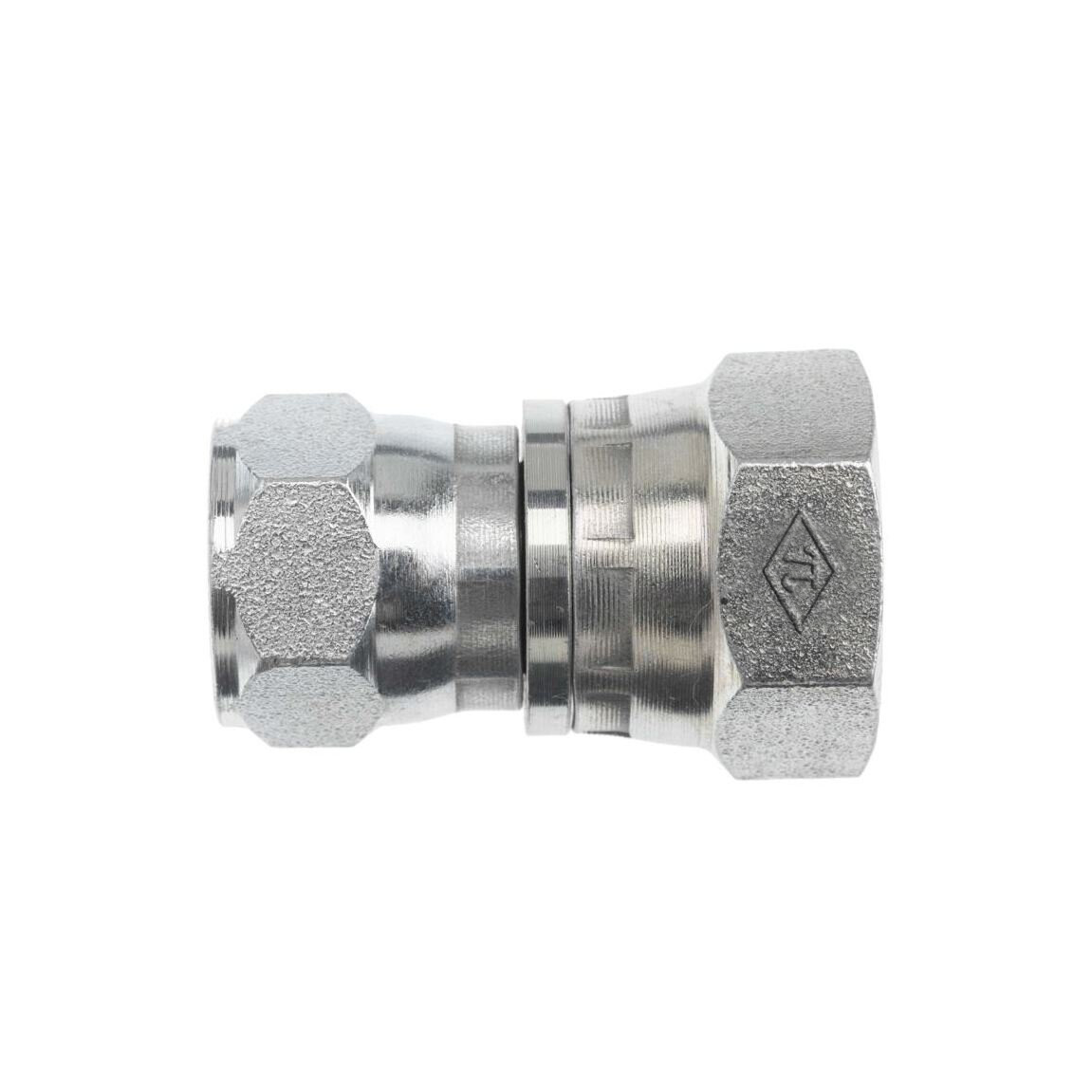

7023 BSPP Swivel Female JIC Swivel x Female
SAE J514 37° Flare Swivel BSPP Connector | Female JIC Swivel x Female BSPP Swivel
For connecting JIC lines to british parallel line using swivels for alignment.
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 7023-04-04 | 1/4" | G - 1/4-19 | Steel | Trivalent Zinc |
| 7023-04-04-SS | 1/4" | G - 1/4-19 | Stainless Steel | - |
| 7023-04-06 | 1/4" | G - 3/8-19 | Steel | Trivalent Zinc |
| 7023-05-04 | 5/16" | G - 1/4-19 | Steel | Trivalent Zinc |
| 7023-05-06 | 5/16" | G - 3/8-19 | Steel | Trivalent Zinc |
| 7023-06-04 | 3/8" | G - 1/4-19 | Steel | Trivalent Zinc |
| 7023-06-04-SS | 3/8" | G - 1/4-19 | Stainless Steel | - |
| 7023-06-06 | 3/8" | G - 3/8-19 | Steel | Trivalent Zinc |
| 7023-06-06-SS | 3/8" | G - 3/8-19 | Stainless Steel | - |
| 7023-06-08 | 3/8" | G - 1/2-14 | Steel | Trivalent Zinc |
| 7023-06-08-SS | 3/8" | G - 1/2-14 | Stainless Steel | - |
| 7023-08-06 | 1/2" | G - 3/8-19 | Steel | Trivalent Zinc |
| 7023-08-06-SS | 1/2" | G - 3/8-19 | Stainless Steel | - |
| 7023-08-08 | 1/2" | G - 1/2-14 | Steel | Trivalent Zinc |
| 7023-08-08-SS | 1/2" | G - 1/2-14 | Stainless Steel | - |
| 7023-08-12 | 1/2" | G - 3/4-14 | Steel | Trivalent Zinc |
| 7023-10-08 | 5/8" | G - 1/2-14 | Steel | Trivalent Zinc |
| 7023-10-10 | 5/8" | G - 5/8-14 | Steel | Trivalent Zinc |
| 7023-10-12 | 5/8" | G - 3/4-14 | Steel | Trivalent Zinc |
| 7023-12-08 | 3/4" | G - 1/2-14 | Steel | Trivalent Zinc |
| 7023-12-12 | 3/4" | G - 3/4-14 | Steel | Trivalent Zinc |
| 7023-12-16 | 3/4" | G - 1-11 | Steel | Trivalent Zinc |
| 7023-16-12 | 1" | G - 3/4-14 | Steel | Trivalent Zinc |
| 7023-16-16 | 1" | G - 1-11 | Steel | Trivalent Zinc |
| 7023-16-20 | 1" | G - 1-1/4-11 | Steel | Trivalent Zinc |
| 7023-20-20 | 1-1/4" | G - 1-1/4-11 | Steel | Trivalent Zinc |
| 7023-24-24 | 1-1/2" | G - 1-1/2-11 | Steel | Trivalent Zinc |
Description
SAE J514 37° Flare Swivel BSPP Connector | Female JIC Swivel x Female BSPP Swivel
For connecting JIC lines to british parallel line using swivels for alignment.
Additional information
| Shape | Straight |
| Side 1 Connection Type | Female JIC Swivel |
| Side 2 Connection Type | MetaobjectDrop |
