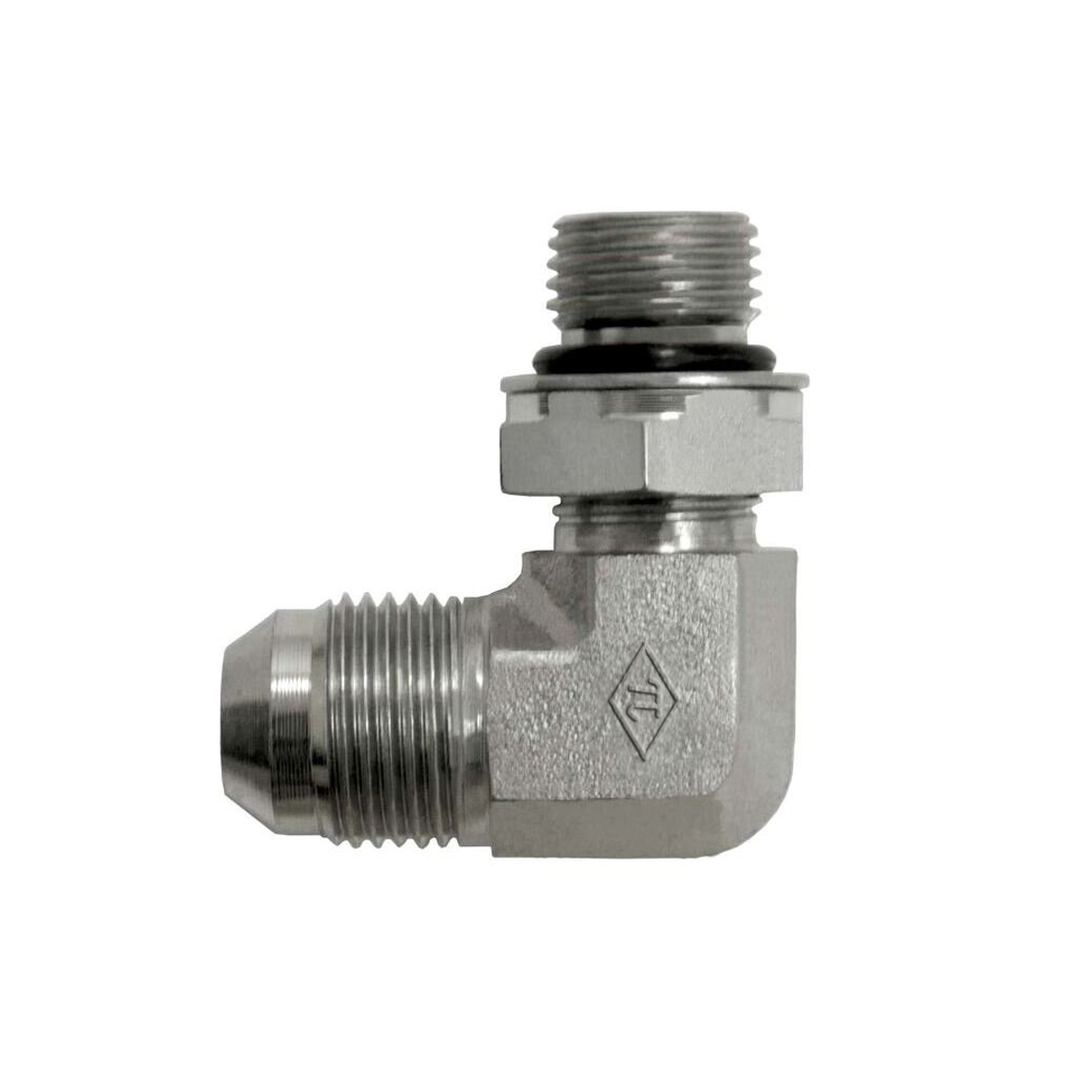

7650-NWO-FG-ISO-6149 Male JIC x Male Metric Adjustable O-Ring Boss
SAE J514 37° Flare Male Metric Adjustable (ISO 6149) Port 90° Elbow | Male JIC x Male Metric Adjustable O-Ring Boss
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| 7650-04-10-NWO | 1/4" | M10X1.0 | Steel | Trivalent Zinc |
| 7650-04-14-NWO | 1/4" | M14X1.5 | Steel | Trivalent Zinc |
| 7650-04-14-NWO-FG | 1/4" | M14X1.5 | Steel | Trivalent Zinc |
| 7650-06-12-NWO | 3/8" | M12X1.5 | Steel | Trivalent Zinc |
| 7650-06-12-NWO-FG | 3/8" | M12X1.5 | Steel | Trivalent Zinc |
| 7650-06-14-NWO-FG | 3/8" | M14X1.5 | Steel | Trivalent Zinc |
| 7650-06-14-NWO-FG-VITON | 3/8" | M14X1.5 | Steel | Trivalent Zinc |
| 7650-06-16-NWO | 3/8" | M16X1.5 | Steel | Trivalent Zinc |
| 7650-06-16-NWO-FG | 3/8" | M16X1.5 | Steel | Trivalent Zinc |
| 7650-08-16-NWO-FG | 1/2" | M16X1.5 | Steel | Trivalent Zinc |
| 7650-08-18-NWO-FG | 1/2" | M18X1.5 | Steel | Trivalent Zinc |
| 7650-08-22-NWO-FG | 1/2" | M22X1.5 | Steel | Trivalent Zinc |
| 7650-10-20-NWO | 5/8" | M20X1.5 | Steel | Trivalent Zinc |
| 7650-10-22-NWO-FG | 5/8" | M22X1.5 | Steel | Trivalent Zinc |
| 7650-12-22-NWO-FG-VITON | 3/4" | M22X1.5 | Steel | Trivalent Zinc |
| 7650-12-27-NWO-FG | 3/4" | M27X2.0 | Steel | Trivalent Zinc |
| 7650-16-33-NWO-FG-VITON | 1" | M33X2 | Steel | Trivalent Zinc |
Description
SAE J514 37° Flare Male Metric Adjustable (ISO 6149) Port 90° Elbow | Male JIC x Male Metric Adjustable O-Ring Boss
Additional information
| Shape | 90°Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | MetaobjectDrop |
