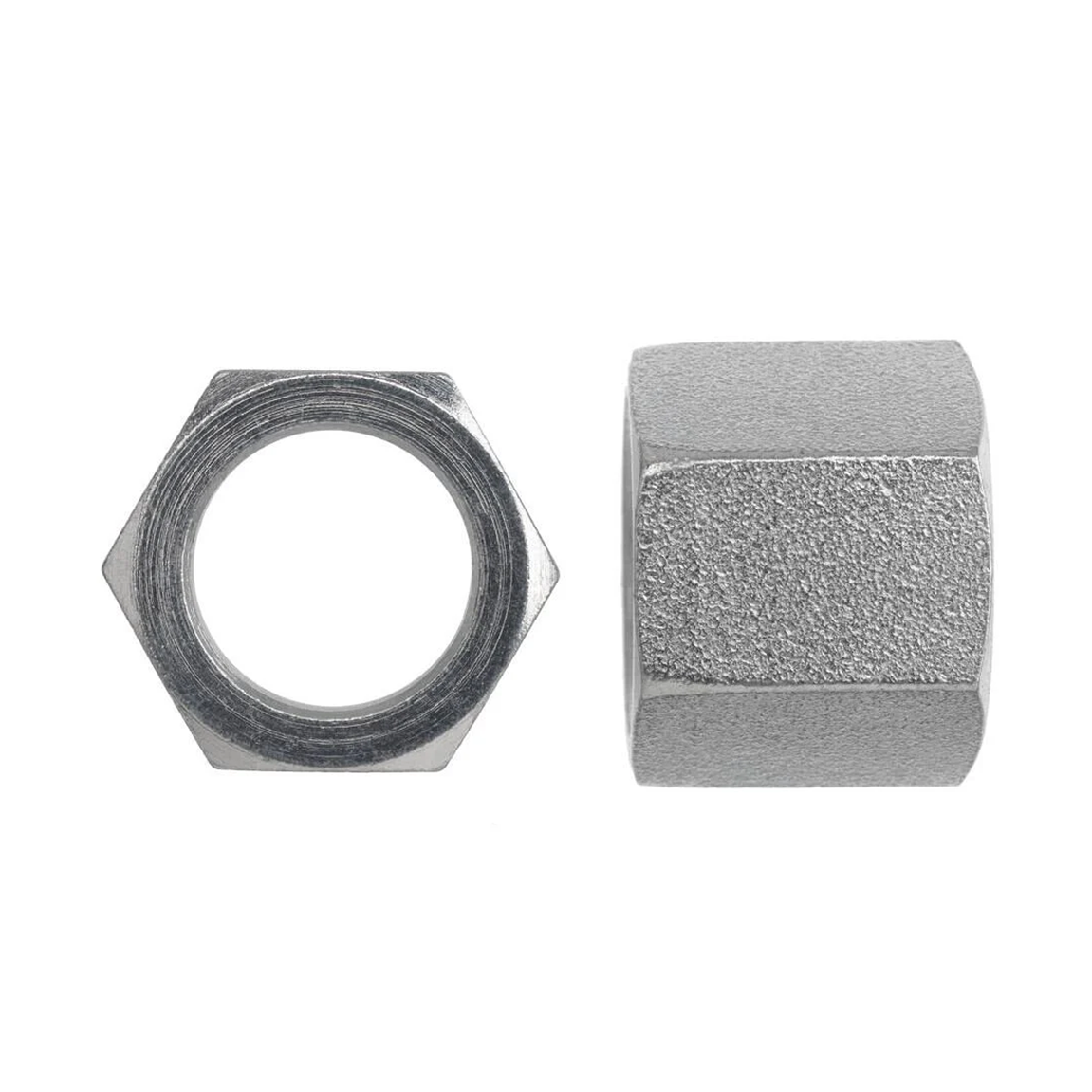

FS0318 ORFS Tube Nut
SAE J1453 O-Ring Face Seal Tube Nut | ORFS Tube Nut
For assembly with ORFS tube or parflange sleeve, male ORFS fitting, and tube, to create a reliable tube connection.
Connection Details
| PART NUMBER ↑ | TUBE OD | PRIMARY MATERIAL | PLATING |
|---|---|---|---|
| FS0318-04 | 1/4" | Steel | Trivalent Zinc |
| FS0318-04-SS | 1/4" | Stainless Steel | - |
| FS0318-06 | 3/8" | Steel | Trivalent Zinc |
| FS0318-06-SS | 3/8" | Stainless Steel | - |
| FS0318-08 | 1/2" | Steel | Trivalent Zinc |
| FS0318-08-SS | 1/2" | Stainless Steel | - |
| FS0318-10 | 5/8" | Steel | Trivalent Zinc |
| FS0318-10-SS | 5/8" | Stainless Steel | - |
| FS0318-12 | 3/4" | Steel | Trivalent Zinc |
| FS0318-12-SS | 3/4" | Stainless Steel | - |
| FS0318-14-SS | 7/8" | Stainless Steel | - |
| FS0318-16 | 1" | Steel | Trivalent Zinc |
| FS0318-16-SS | 1" | Stainless Steel | - |
| FS0318-20 | 1-1/4" | Steel | Trivalent Zinc |
| FS0318-20-SS | 1-1/4" | Stainless Steel | - |
| FS0318-24 | 1-1/2" | Steel | Trivalent Zinc |
| FS0318-24-SS | 1-1/2" | Stainless Steel | - |
Description
SAE J1453 O-Ring Face Seal Tube Nut | ORFS Tube Nut
For assembly with ORFS tube or parflange sleeve, male ORFS fitting, and tube, to create a reliable tube connection.
Additional information
| Shape | Nut/Sleeve |
| Side 1 Connection Type | ORFS Tube Nut |
