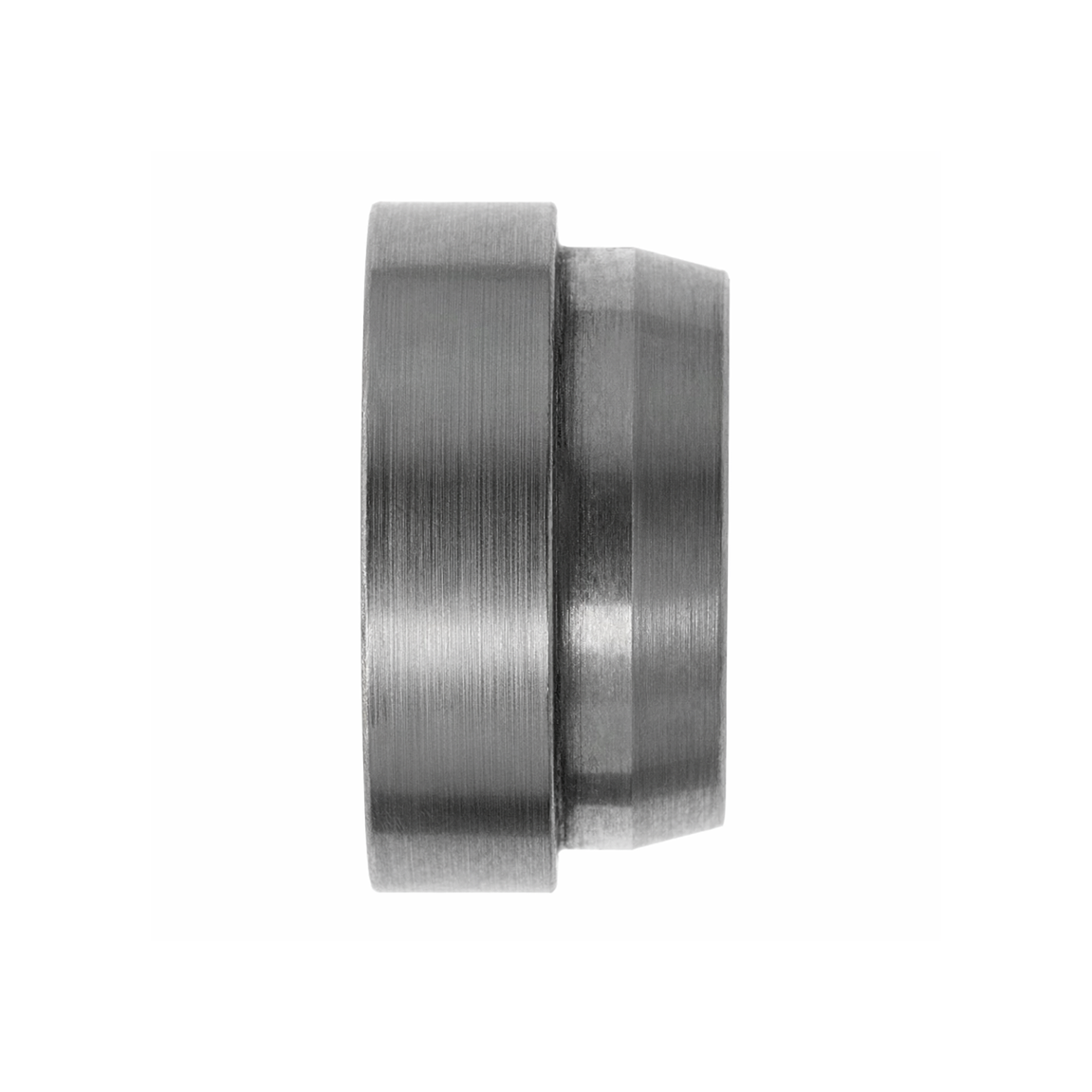

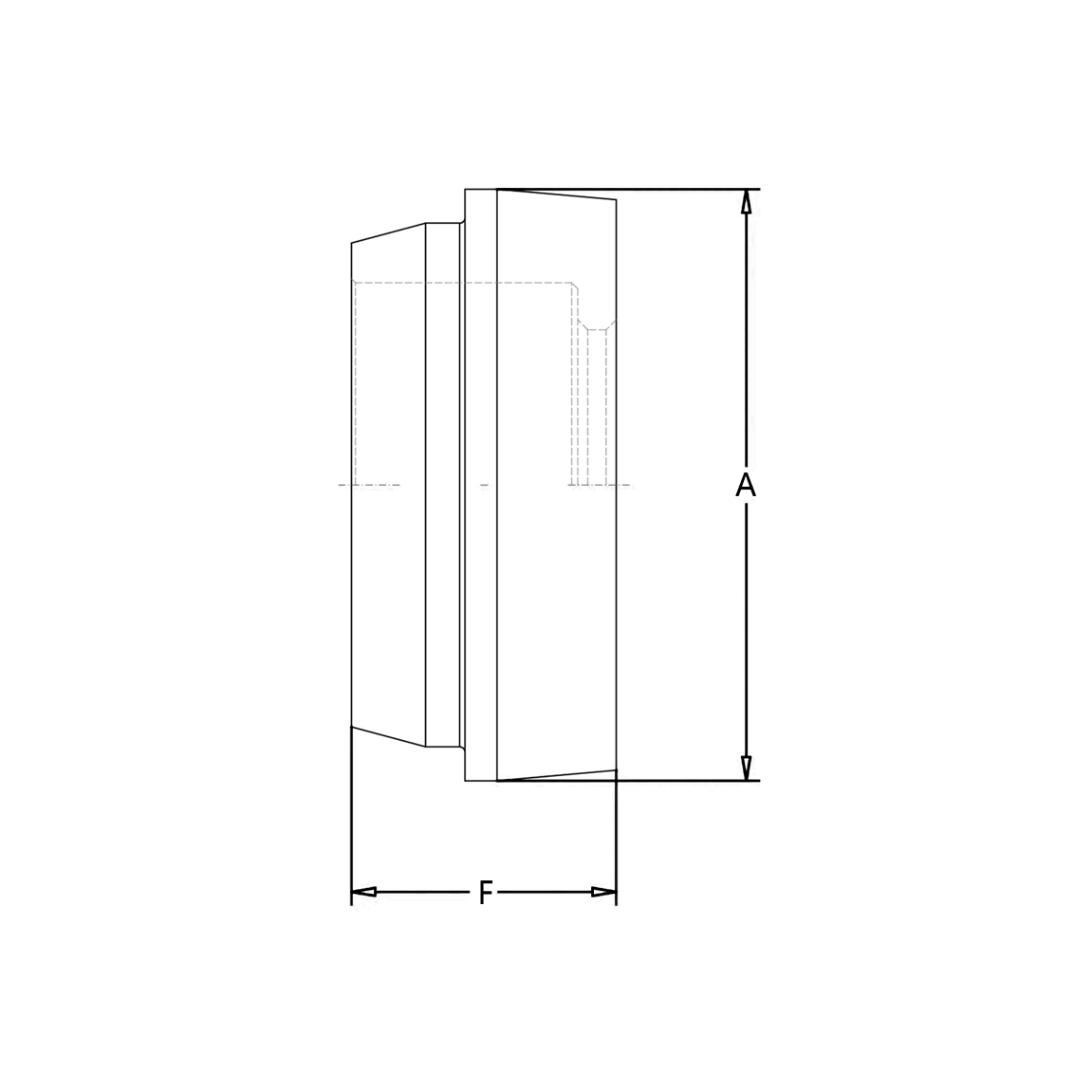

FS0319 ORFS Braze Sleeve
SAE J1453 O-Ring Face Seal Braze Sleeve | ORFS Braze Sleeve
For assembly with ORFS tube nut, male ORFS fitting, and tube, to create a reliable tube connection.
Connection Details
| PART NUMBER ↑ | TUBE OD | PRIMARY MATERIAL | PLATING |
|---|---|---|---|
| FS0319-04 | 1/4" | Steel | 2.27 |
| FS0319-04-SS | 1/4" | Stainless Steel | 9.45 |
| FS0319-06 | 3/8" | Steel | 2.51 |
| FS0319-06-SS | 3/8" | Stainless Steel | 42.63 |
| FS0319-08 | 1/2" | Steel | 3.15 |
| FS0319-08-SS | 1/2" | Stainless Steel | 24.61 |
| FS0319-10 | 5/8" | Steel | 3.5 |
| FS0319-10-SS | 5/8" | Stainless Steel | 44.45 |
| FS0319-12 | 3/4" | Steel | 4.92 |
| FS0319-12-SS | 3/4" | Stainless Steel | 72.46 |
| FS0319-16 | 1" | Steel | 15.8 |
| FS0319-16-SS | 1" | Stainless Steel | 135.61 |
| FS0319-20 | 1-1/4" | Steel | 26.48 |
| FS0319-20-SS | 1-1/4" | Stainless Steel | 295.25 |
| FS0319-24 | 1-1/2" | Steel | 62.37 |
| FS0319-24-SS | 1-1/2" | Stainless Steel | 310.51 |
Description
SAE J1453 O-Ring Face Seal Braze Sleeve | ORFS Braze Sleeve
For assembly with ORFS tube nut, male ORFS fitting, and tube, to create a reliable tube connection.
Additional information
| Shape | Nut/Sleeve |
| Side 1 Connection Type | ORFS Tube Sleeve |
