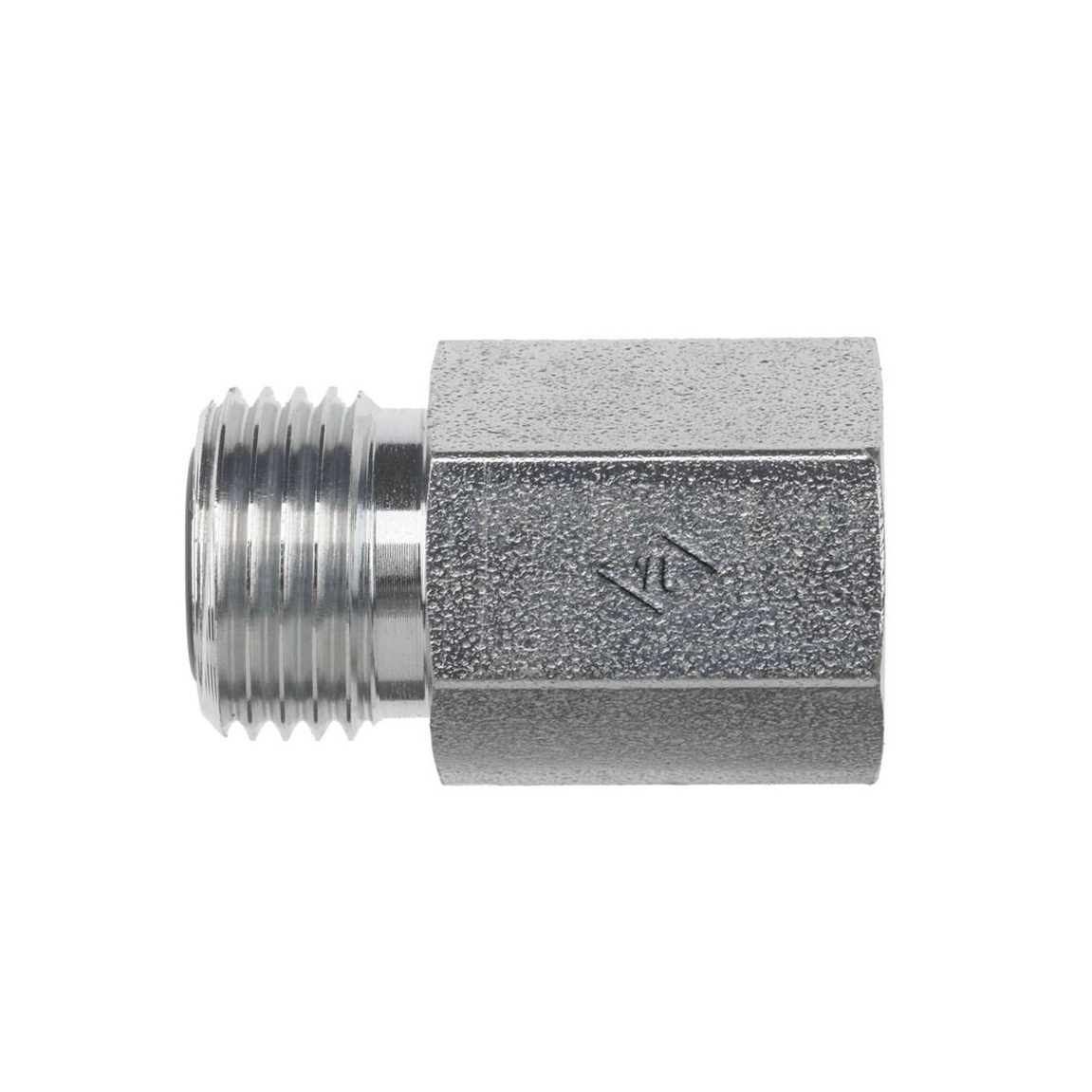

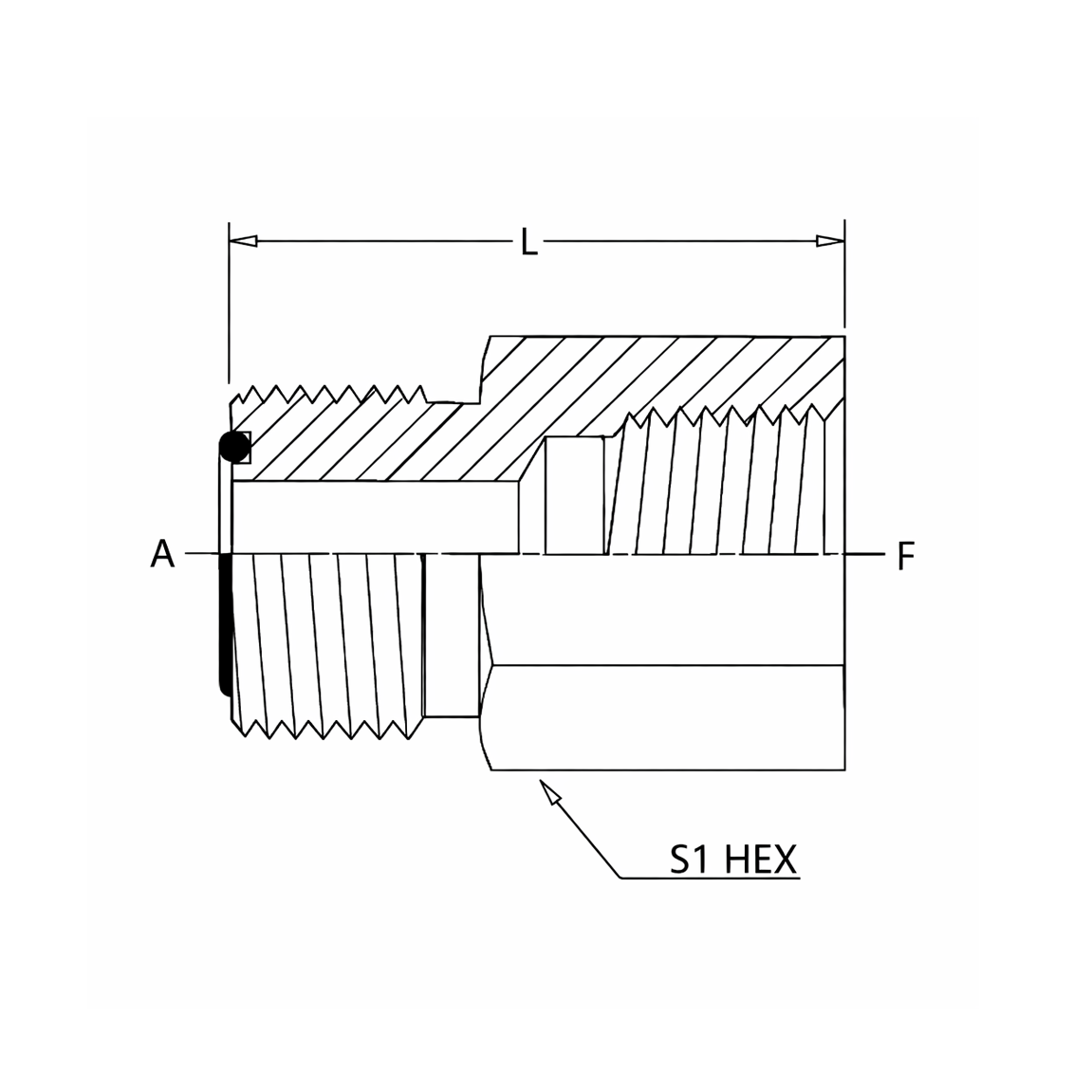

FS2405 Male ORFS x Female Pipe
SAE J1453 O-Ring Face Seal Female Connector | Male ORFS x Female Pipe
For connecting ORFS flanged tubes or lines to pipe without requiring pipe sealant.
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 PIPE SIZE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| FS2405-04-04 | 1/4" | 1/4" | Steel | Trivalent Zinc |
| FS2405-04-04-SS | 1/4" | 1/4" | Stainless Steel | - |
| FS2405-06-04 | 3/8" | 1/4" | Steel | Trivalent Zinc |
| FS2405-06-04-SS | 3/8" | 1/4" | Stainless Steel | - |
| FS2405-08-08 | 1/2" | 1/2" | Steel | Trivalent Zinc |
| FS2405-12-12-SS | 3/4" | 3/4" | Stainless Steel | - |
| FS2405-16-16-SS | 1" | 1-1/2" | Stainless Steel | - |
Description
SAE J1453 O-Ring Face Seal Female Connector | Male ORFS x Female Pipe
For connecting ORFS flanged tubes or lines to pipe without requiring pipe sealant.
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | MetaobjectDrop |
