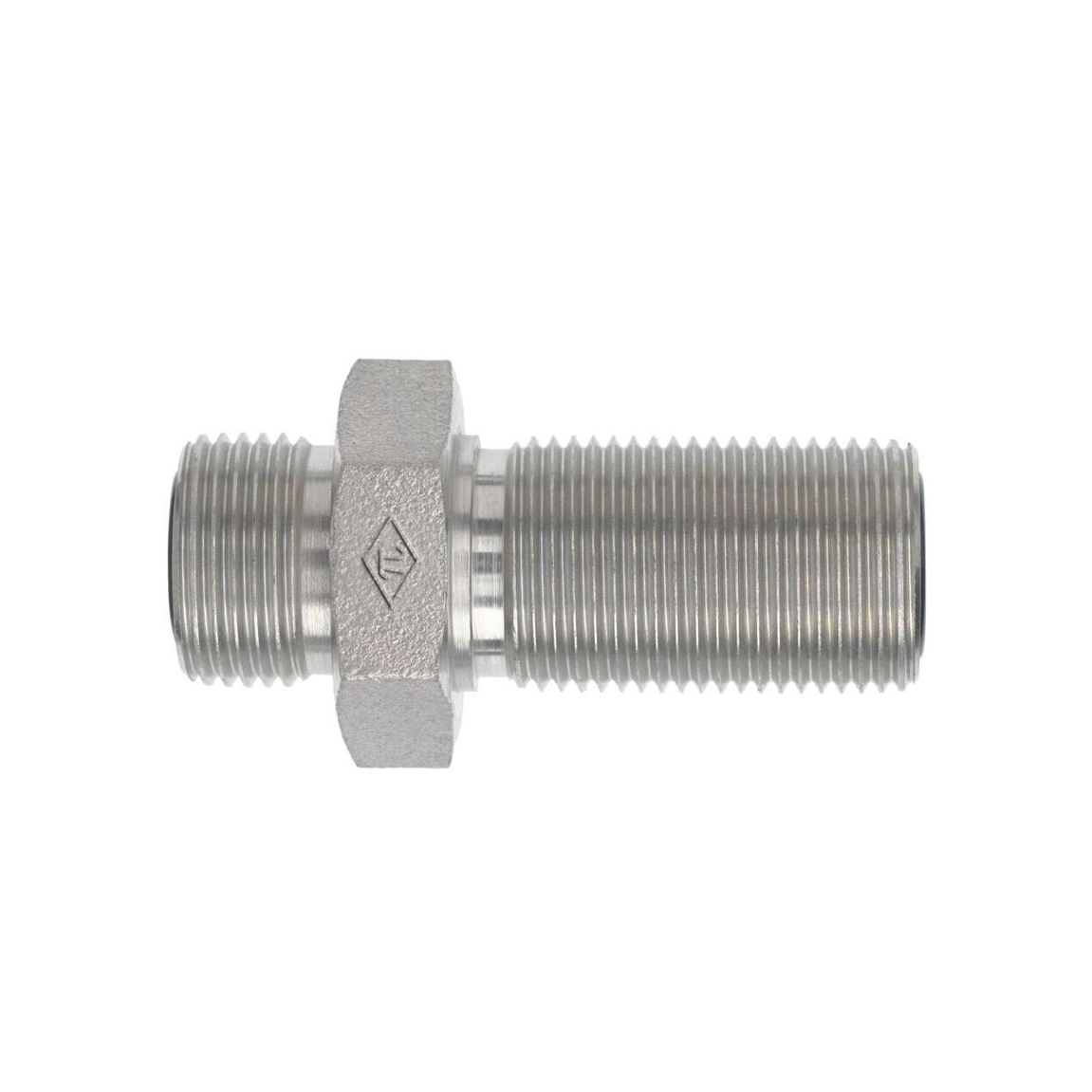

FS2700 Male ORFS x Male ORFS Bulkhead
SAE J1453 O-Ring Face Seal Bulkhead | Male ORFS x Male ORFS Bulkhead
For connecting ORFS flanged tubes or lines through a panel. Requires locknut for assembly.
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 TUBE OD | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| FS2700-04-04 | 1/4" | 1/4" | Steel | Trivalent Zinc |
| FS2700-04-04-SS | 1/4" | 1/4" | Stainless Steel | - |
| FS2700-06-06 | 3/8" | 3/8" | Steel | Trivalent Zinc |
| FS2700-06-06-SS | 3/8" | 3/8" | Stainless Steel | - |
| FS2700-06-06-VITON | 3/8" | 3/8" | Steel | Trivalent Zinc |
| FS2700-06-08 | 3/8" | 1/2" | Steel | Trivalent Zinc |
| FS2700-08-08 | 1/2" | 1/2" | Steel | Trivalent Zinc |
| FS2700-08-08-SS | 1/2" | 1/2" | Stainless Steel | - |
| FS2700-08-08-VITON | 1/2" | 1/2" | Steel | Trivalent Zinc |
| FS2700-08-10 | 1/2" | 5/8" | Steel | Trivalent Zinc |
| FS2700-10-08 | 5/8" | 1/2" | Steel | Trivalent Zinc |
| FS2700-10-10 | 5/8" | 5/8" | Steel | Trivalent Zinc |
| FS2700-10-10-SS | 5/8" | 5/8" | Stainless Steel | - |
| FS2700-10-10-VITON | 5/8" | 5/8" | Steel | Trivalent Zinc |
| FS2700-12-06 | 3/4" | 3/8" | Steel | Trivalent Zinc |
| FS2700-12-12 | 3/4" | 3/4" | Steel | Trivalent Zinc |
| FS2700-12-12-SS | 3/4" | 3/4" | Stainless Steel | - |
| FS2700-16-12 | 1" | 3/4" | Steel | Trivalent Zinc |
| FS2700-16-16 | 1" | 1" | Steel | Trivalent Zinc |
| FS2700-16-16-SS | 1" | 1" | Stainless Steel | - |
| FS2700-20-20 | 1-1/4" | 1-1/4" | Steel | Trivalent Zinc |
| FS2700-24-24 | 1-1/2" | 1-1/2" | Steel | Trivalent Zinc |
| FS2700-24-24-SS | 1-1/2" | 1-1/2" | Stainless Steel | - |
| FS2700-32-32 | 2" | 2" | Steel | Trivalent Zinc |
| FS2700-32-32-SS | 2" | 2" | Stainless Steel | - |
Description
SAE J1453 O-Ring Face Seal Bulkhead | Male ORFS x Male ORFS Bulkhead
For connecting ORFS flanged tubes or lines through a panel. Requires locknut for assembly.
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | MetaobjectDrop |
