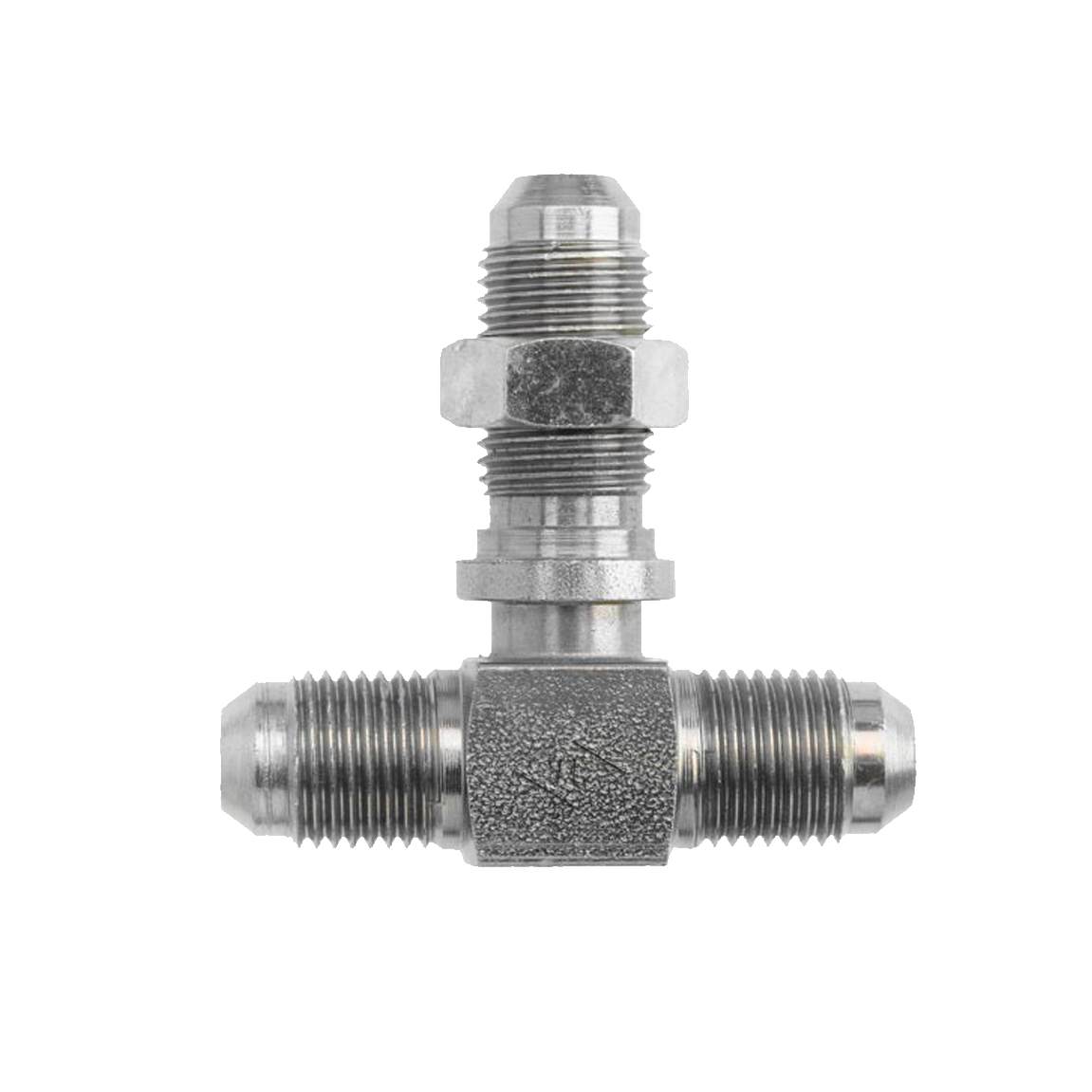

FS2703-LN-FG Male ORFS x Male ORFS x Male ORFSBulkhead, With Lock Nut
SAE J1453 O-Ring Face Seal Bulkhead Branch Tee With Lock Nut | Male ORFS x Male ORFS x Male ORFS Bulkhead, With Lock Nut
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 TUBE OD | SIDE 3 TUBE OD | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|---|
| FS2703-LN-04-04-04-FG | 1/4" | 1/4" | 1/4" | Steel | Trivalent Zinc |
| FS2703-LN-04-04-04-FG-VITON | 1/4" | 1/4" | 1/4" | Steel | Trivalent Zinc |
| FS2703-LN-04-04-04-SS | 1/4" | 1/4" | 1/4" | Stainless Steel | - |
| FS2703-LN-06-06-06-FG | 3/8" | 3/8" | 3/8" | Steel | Trivalent Zinc |
| FS2703-LN-06-06-06-SS | 3/8" | 3/8" | 3/8" | Stainless Steel | - |
| FS2703-LN-06-06-08-FG | 3/8" | 3/8" | 1/2" | Steel | Trivalent Zinc |
| FS2703-LN-08-08-08-FG | 1/2" | 1/2" | 1/2" | Steel | Trivalent Zinc |
| FS2703-LN-08-08-10-FG | 1/2" | 1/2" | 5/8" | Steel | Trivalent Zinc |
| FS2703-LN-08-08-12-FG | 1/2" | 1/2" | 3/4" | Steel | Trivalent Zinc |
| FS2703-LN-10-10-10-FG | 5/8" | 5/8" | 5/8" | Steel | Trivalent Zinc |
| FS2703-LN-12-12-12-FG | 3/4" | 3/4" | 3/4" | Steel | Trivalent Zinc |
| FS2703-LN-12-12-12-SS | 3/4" | 3/4" | 3/4" | Stainless Steel | - |
| FS2703-LN-16-16-16-FG | 1" | 1" | 1" | Steel | Trivalent Zinc |
| FS2703-LN-16-16-16-SS | 1" | 1" | 1" | Stainless Steel | - |
| FS2703-LN-20-20-20-FG | 1-1/4" | 1-1/4" | 1-1/4" | Steel | Trivalent Zinc |
| FS2703-LN-20-20-20-SS | 1-1/4" | 1-1/4" | 1-1/4" | Stainless Steel | - |
| FS2703-LN-24-24-24-FG | 1-1/2" | 1-1/2" | 1-1/2" | Steel | Trivalent Zinc |
| FS2703-LN-24-24-24-SS | 1-1/2" | 1-1/2" | 1-1/2" | Stainless Steel | - |
| FS2703-LN-32-32-32-FG | 2" | 2" | 2" | Steel | Trivalent Zinc |
| FS2703-LN-32-32-32-SS | 2" | 2" | 2" | Stainless Steel | - |
Description
SAE J1453 O-Ring Face Seal Bulkhead Branch Tee With Lock Nut | Male ORFS x Male ORFS x Male ORFS Bulkhead, With Lock Nut
Additional information
| Shape | Tee |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | MetaobjectDrop |
| Side 3 Connection Type | MetaobjectDrop |
