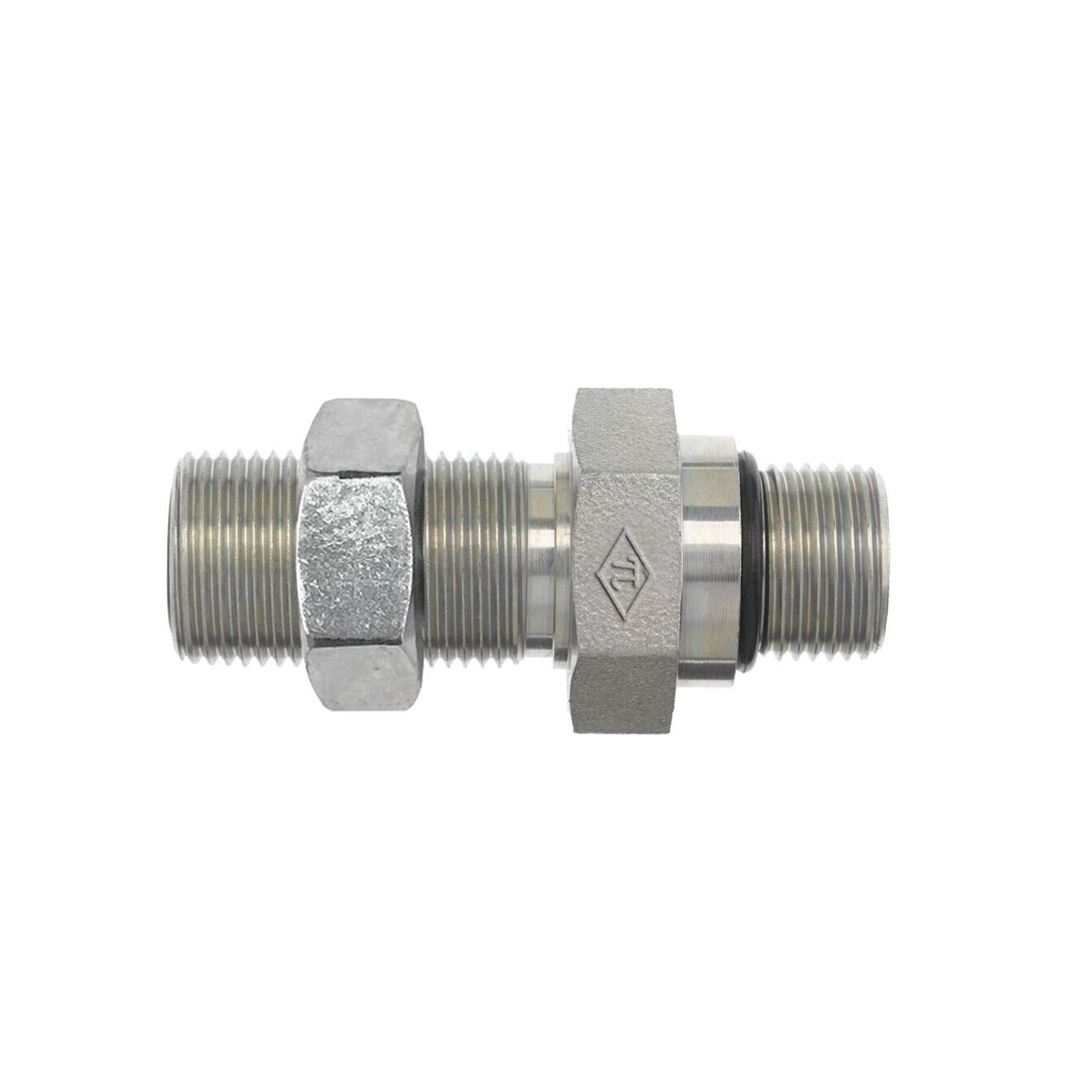

FS2764-LN Male ORB x Male ORFS Bulkhead, With Lock Nut
SAE J1453 O-Ring Face Seal Bulkhead Port Adapter With Lock Nut | Male ORB x Male ORFS Bulkhead, With Lock Nut
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| FS2764-LN-04-04-O | 1/4" | 7/16-20 UNF | Steel | Trivalent Zinc |
| FS2764-LN-04-06-O | 1/4" | 9/16-18 UNF | Steel | Trivalent Zinc |
| FS2764-LN-06-06-O | 3/8" | 9/16-18 UNF | Steel | Trivalent Zinc |
| FS2764-LN-08-08-O | 1/2" | 3/4-16 UNF | Steel | Trivalent Zinc |
| FS2764-LN-08-08-O-SS | 1/2" | 3/4-16 UNF | Stainless Steel | - |
| FS2764-LN-10-10-O | 5/8" | 7/8-14 UNF | Steel | Trivalent Zinc |
| FS2764-LN-10-12-O | 5/8" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| FS2764-LN-12-12-O | 3/4" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| FS2764-LN-16-16-O | 1" | 1-5/16-12 UN | Steel | Trivalent Zinc |
| FS2764-LN-20-20-O | 1-1/4" | 1-5/8-12 UN | Steel | Trivalent Zinc |
| FS2764-LN-20-20-O-VITON | 1-1/4" | 1-5/8-12 UN | Steel | Trivalent Zinc |
| FS2764-LN-24-24-O | 1-1/2" | 1-7/8-12 UN | Steel | Trivalent Zinc |
| FS2764-LN-32-32-O | 2" | 2-1/2-12 UN | Steel | Trivalent Zinc |
Description
SAE J1453 O-Ring Face Seal Bulkhead Port Adapter With Lock Nut | Male ORB x Male ORFS Bulkhead, With Lock Nut
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | MetaobjectDrop |
