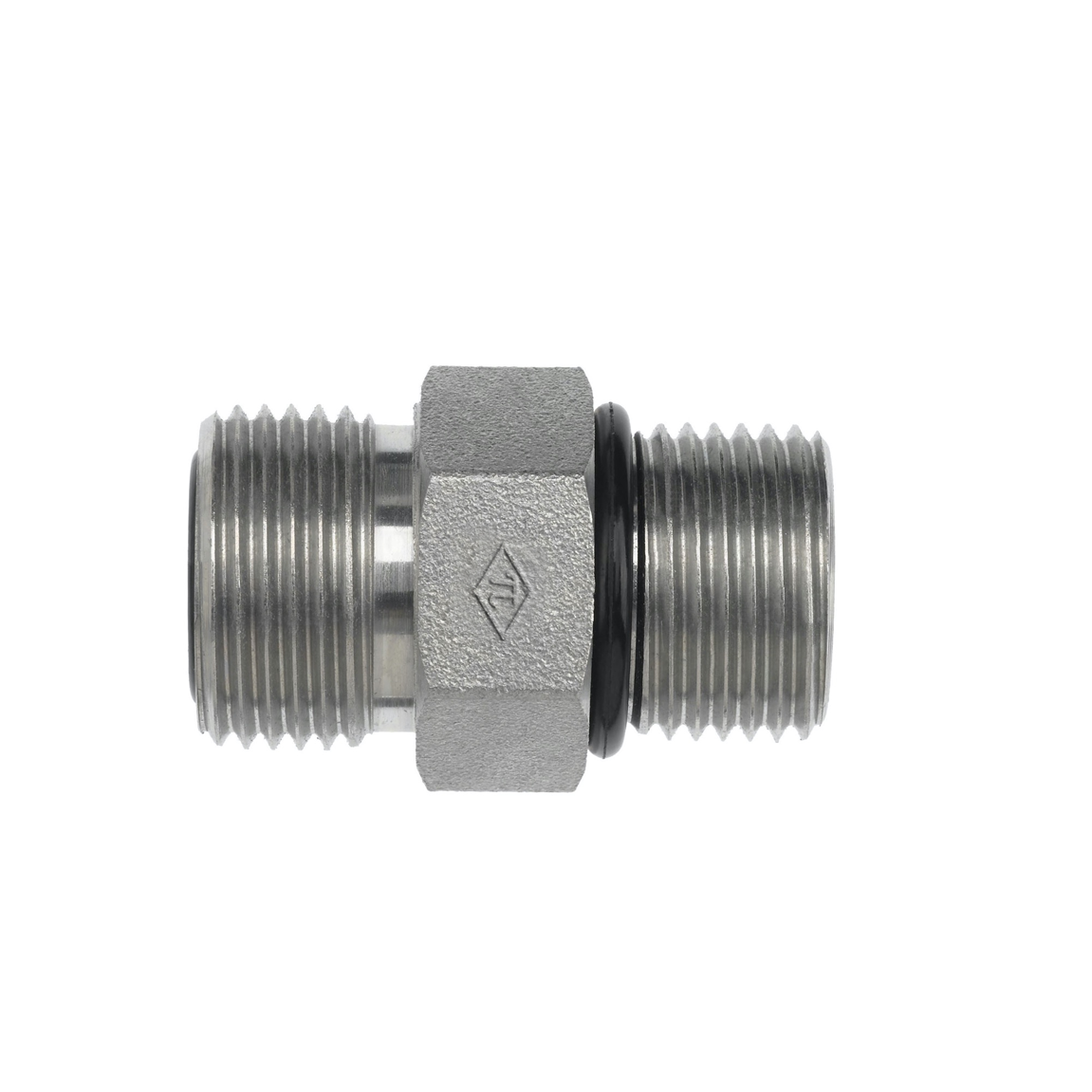

FS6400-O Male ORFS x Male ORB

SAE J1453 O-Ring Face Seal Port Connector | Male ORFS x Male ORB

For connecting ORFS flanged tubes or lines to SAE port.

Connection Details

SIDE 1

Connection Type:Male ORFS
Standard:SAE J1453 - Class 2A Thread
Role:Line/Tube Connection
SIDE 2

Connection Type:Male ORB
Standard:SAE J1926
Role:Port Connection

SIDE 1 TUBE OD:

SIDE 2 THREAD TYPE:

PRIMARY MATERIAL:

PLATING:

PART NUMBER ↑	SIDE 1 TUBE OD	SIDE 2 THREAD TYPE	PRIMARY MATERIAL	PLATING
FS6400-04-02-O	1/4"	5/16-24 UNF	Steel	Trivalent Zinc
FS6400-04-02-O $1.74 ea.
FS6400-04-03-O	1/4"	3/8-24 UNF	Steel	Trivalent Zinc
FS6400-04-03-O $3.87 ea.
FS6400-04-04-O	1/4"	7/16-20 UNF	Steel	Trivalent Zinc
FS6400-04-04-O $0.84 ea.
FS6400-04-04-O-SS	1/4"	7/16-20 UNF	Stainless Steel	-
FS6400-04-04-O-SS $16.14 ea.
FS6400-04-04-O-SS-VITON	1/4"	7/16-20 UNF	Stainless Steel	-
FS6400-04-04-O-SS-VITON $32.58 ea.
FS6400-04-04-O-VITON	1/4"	7/16-20 UNF	Steel	Trivalent Zinc
FS6400-04-04-O-VITON $1.23 ea.
FS6400-04-05-O	1/4"	1/2-20 UNF	Steel	Trivalent Zinc
FS6400-04-05-O $2.17 ea.
FS6400-04-06-O	1/4"	9/16-18 UNF	Steel	Trivalent Zinc
FS6400-04-06-O $1.07 ea.
FS6400-04-06-O-SS	1/4"	9/16-18 UNF	Stainless Steel	-
FS6400-04-06-O-SS $15.20 ea.
FS6400-04-06-O-VITON	1/4"	9/16-18 UNF	Steel	Trivalent Zinc
FS6400-04-06-O-VITON $1.40 ea.
FS6400-04-08-O	1/4"	3/4-16 UNF	Steel	Trivalent Zinc
FS6400-04-08-O $1.95 ea.
FS6400-04-08-O-SS	1/4"	3/4-16 UNF	Stainless Steel	-
FS6400-04-08-O-SS $95.93 ea.
FS6400-04-10-O	1/4"	7/8-14 UNF	Steel	Trivalent Zinc
FS6400-04-10-O $3.93 ea.
FS6400-04-12-O	1/4"	1-1/16-12 UN	Steel	Trivalent Zinc
FS6400-04-12-O $9.75 ea.
FS6400-06-03-O	3/8"	3/8-24 UNF	Steel	Trivalent Zinc
FS6400-06-03-O $4.76 ea.
FS6400-06-04	3/8"	7/16-20 UNF	Steel	Trivalent Zinc
FS6400-06-04 $1.11 ea.
FS6400-06-04-O	3/8"	7/16-20 UNF	Steel	Trivalent Zinc
FS6400-06-04-O $1.22 ea.
FS6400-06-04-O-SS	3/8"	7/16-20 UNF	Stainless Steel	-
FS6400-06-04-O-SS $21.10 ea.
FS6400-06-04-O-VITON	3/8"	7/16-20 UNF	Steel	Trivalent Zinc
FS6400-06-04-O-VITON $1.74 ea.
FS6400-06-05-O	3/8"	1/2-20 UNF	Steel	Trivalent Zinc
FS6400-06-05-O $2.90 ea.
FS6400-06-06-O	3/8"	9/16-18 UNF	Steel	Trivalent Zinc
FS6400-06-06-O $0.94 ea.
FS6400-06-06-O-SS	3/8"	9/16-18 UNF	Stainless Steel	-
FS6400-06-06-O-SS $16.51 ea.
FS6400-06-06-O-VITON	3/8"	9/16-18 UNF	Steel	Trivalent Zinc
FS6400-06-06-O-VITON $1.48 ea.
FS6400-06-08-O	3/8"	3/4-16 UNF	Steel	Trivalent Zinc
FS6400-06-08-O $1.17 ea.
FS6400-06-08-O-SS	3/8"	3/4-16 UNF	Stainless Steel	-
FS6400-06-08-O-SS $18.75 ea.
FS6400-06-08-O-VITON	3/8"	3/4-16 UNF	Steel	Trivalent Zinc
FS6400-06-08-O-VITON $1.79 ea.
FS6400-06-10-O	3/8"	7/8-14 UNF	Steel	Trivalent Zinc
FS6400-06-10-O $2.29 ea.
FS6400-06-12-O	3/8"	1-1/16-12 UN	Steel	Trivalent Zinc
FS6400-06-12-O $7.69 ea.
FS6400-06-16-O	3/8"	1-5/16-12 UN	Steel	Trivalent Zinc
FS6400-06-16-O $24.29 ea.
FS6400-08-04-O	1/2"	7/16-20 UNF	Steel	Trivalent Zinc
FS6400-08-04-O $2.26 ea.
FS6400-08-04-O-SS	1/2"	7/16-20 UNF	Stainless Steel	-
FS6400-08-04-O-SS $15.38 ea.
FS6400-08-06-O	1/2"	9/16-18 UNF	Steel	Trivalent Zinc
FS6400-08-06-O $1.21 ea.
FS6400-08-06-O-SS	1/2"	9/16-18 UNF	Stainless Steel	-
FS6400-08-06-O-SS $24.60 ea.
FS6400-08-08-O	1/2"	3/4-16 UNF	Steel	Trivalent Zinc
FS6400-08-08-O $1.30 ea.
FS6400-08-08-O-SS	1/2"	3/4-16 UNF	Stainless Steel	-
FS6400-08-08-O-SS $15.82 ea.
FS6400-08-08-O-SS-VITON	1/2"	3/4-16 UNF	Stainless Steel	-
FS6400-08-08-O-SS-VITON $20.09 ea.
FS6400-08-08-O-VITON	1/2"	3/4-16 UNF	Steel	Trivalent Zinc
FS6400-08-08-O-VITON $1.90 ea.
FS6400-08-10-O	1/2"	7/8-14 UNF	Steel	Trivalent Zinc
FS6400-08-10-O $2.20 ea.
FS6400-08-10-O-SS	1/2"	7/8-14 UNF	Stainless Steel	-
FS6400-08-10-O-SS $64.52 ea.
FS6400-08-12-O	1/2"	1-1/16-12 UN	Steel	Trivalent Zinc
FS6400-08-12-O $3.08 ea.
FS6400-08-12-O-SS	1/2"	1-1/16-12 UN	Stainless Steel	-
FS6400-08-12-O-SS $45.74 ea.
FS6400-08-12-O-SS-VITON	1/2"	1-1/16-12 UN	Stainless Steel	-
FS6400-08-12-O-SS-VITON $43.02 ea.
FS6400-08-12-O-VITON	1/2"	1-1/16-12 UN	Steel	Trivalent Zinc
FS6400-08-12-O-VITON $3.98 ea.
FS6400-08-16-O	1/2"	1-5/16-12 UN	Steel	Trivalent Zinc
FS6400-08-16-O $10.69 ea.
FS6400-08-16-O-VITON	1/2"	1-5/16-12 UN	Steel	Trivalent Zinc
FS6400-08-16-O-VITON $10.78 ea.
FS6400-10-06-O	5/8"	9/16-18 UNF	Steel	Trivalent Zinc
FS6400-10-06-O $2.02 ea.
FS6400-10-08-O	5/8"	3/4-16 UNF	Steel	Trivalent Zinc
FS6400-10-08-O $2.24 ea.
FS6400-10-08-O-SS	5/8"	3/4-16 UNF	Stainless Steel	-
FS6400-10-08-O-SS $69.06 ea.
FS6400-10-08-O-VITON	5/8"	3/4-16 UNF	Steel	Trivalent Zinc
FS6400-10-08-O-VITON $2.84 ea.
FS6400-10-10-O	5/8"	7/8-14 UNF	Steel	Trivalent Zinc
FS6400-10-10-O $2.31 ea.
FS6400-10-10-O-SS	5/8"	7/8-14 UNF	Stainless Steel	-
FS6400-10-10-O-SS $77.40 ea.
FS6400-10-10-O-VITON	5/8"	7/8-14 UNF	Steel	Trivalent Zinc
FS6400-10-10-O-VITON $3.14 ea.
FS6400-10-12-O	5/8"	1-1/16-12 UN	Steel	Trivalent Zinc
FS6400-10-12-O $3.45 ea.
FS6400-10-12-O-SS	5/8"	1-1/16-12 UN	Stainless Steel	-
FS6400-10-12-O-SS $46.93 ea.
FS6400-10-12-O-VITON	5/8"	1-1/16-12 UN	Steel	Trivalent Zinc
FS6400-10-12-O-VITON $4.44 ea.
FS6400-10-14-O	5/8"	1-3/16-12 UN	Steel	Trivalent Zinc
FS6400-10-14-O $6.04 ea.
FS6400-10-16-O	5/8"	1-5/16-12 UN	Steel	Trivalent Zinc
FS6400-10-16-O $5.90 ea.
FS6400-10-16-O-VITON	5/8"	1-5/16-12 UN	Steel	Trivalent Zinc
FS6400-10-16-O-VITON $15.67 ea.
FS6400-12-06-O	3/4"	9/16-18 UNF	Steel	Trivalent Zinc
FS6400-12-06-O $11.20 ea.
FS6400-12-08-O	3/4"	3/4-16 UNF	Steel	Trivalent Zinc
FS6400-12-08-O $3.13 ea.
FS6400-12-08-O-SS	3/4"	3/4-16 UNF	Stainless Steel	-
FS6400-12-08-O-SS $40.02 ea.
FS6400-12-08-O-SS-VITON	3/4"	3/4-16 UNF	Stainless Steel	-
FS6400-12-08-O-SS-VITON $58.86 ea.
FS6400-12-10-O	3/4"	7/8-14 UNF	Steel	Trivalent Zinc
FS6400-12-10-O $3.41 ea.
FS6400-12-10-O-SS	3/4"	7/8-14 UNF	Stainless Steel	-
FS6400-12-10-O-SS $62.06 ea.
FS6400-12-10-O-VITON	3/4"	7/8-14 UNF	Steel	Trivalent Zinc
FS6400-12-10-O-VITON $4.03 ea.
FS6400-12-12-O	3/4"	1-1/16-12 UN	Steel	Trivalent Zinc
FS6400-12-12-O $2.85 ea.
FS6400-12-12-O-SS	3/4"	1-1/16-12 UN	Stainless Steel	-
FS6400-12-12-O-SS $37.56 ea.
FS6400-12-12-O-SS-VITON	3/4"	1-1/16-12 UN	Stainless Steel	-
FS6400-12-12-O-SS-VITON $35.66 ea.
FS6400-12-12-O-VITON	3/4"	1-1/16-12 UN	Steel	Trivalent Zinc
FS6400-12-12-O-VITON $4.02 ea.
FS6400-12-16-O	3/4"	1-5/16-12 UN	Steel	Trivalent Zinc
FS6400-12-16-O $5.06 ea.
FS6400-12-16-O-SS	3/4"	1-5/16-12 UN	Stainless Steel	-
FS6400-12-16-O-SS $66.30 ea.
FS6400-12-16-O-VITON	3/4"	1-5/16-12 UN	Steel	Trivalent Zinc
FS6400-12-16-O-VITON $6.38 ea.
FS6400-12-20-O	3/4"	1-5/8-12 UN	Steel	Trivalent Zinc
FS6400-12-20-O $7.57 ea.
FS6400-16-08-O	1"	3/4-16 UNF	Steel	Trivalent Zinc
FS6400-16-08-O $4.88 ea.
FS6400-16-10-O	1"	7/8-14 UNF	Steel	Trivalent Zinc
FS6400-16-10-O $11.04 ea.
FS6400-16-10-O-VITON	1"	7/8-14 UNF	Steel	Trivalent Zinc
FS6400-16-10-O-VITON $11.43 ea.
FS6400-16-12-O	1"	1-1/16-12 UN	Steel	Trivalent Zinc
FS6400-16-12-O $4.19 ea.
FS6400-16-12-O-SS	1"	1-1/16-12 UN	Stainless Steel	-
FS6400-16-12-O-SS $140.22 ea.
FS6400-16-12-O-VITON	1"	1-1/16-12 UN	Steel	Trivalent Zinc
FS6400-16-12-O-VITON $5.68 ea.
FS6400-16-16-O	1"	1-5/16-12 UN	Steel	Trivalent Zinc
FS6400-16-16-O $4.24 ea.
FS6400-16-16-O-SS	1"	1-5/16-12 UN	Stainless Steel	-
FS6400-16-16-O-SS $59.59 ea.
FS6400-16-16-O-SS-VITON	1"	1-5/16-12 UN	Stainless Steel	-
FS6400-16-16-O-SS-VITON $55.03 ea.
FS6400-16-16-O-VITON	1"	1-5/16-12 UN	Steel	Trivalent Zinc
FS6400-16-16-O-VITON $6.09 ea.
FS6400-16-20-O	1"	1-5/8-12 UN	Steel	Trivalent Zinc
FS6400-16-20-O $5.52 ea.
FS6400-16-20-O-SS	1"	1-5/8-12 UN	Stainless Steel	-
FS6400-16-20-O-SS $61.43 ea.
FS6400-16-20-O-SS-VITON	1"	1-5/8-12 UN	Stainless Steel	-
FS6400-16-20-O-SS-VITON $66.37 ea.
FS6400-16-20-O-VITON	1"	1-5/8-12 UN	Steel	Trivalent Zinc
FS6400-16-20-O-VITON $7.38 ea.
FS6400-16-24-O	1"	1-7/8-12 UN	Steel	Trivalent Zinc
FS6400-16-24-O $51.11 ea.
FS6400-20-16-O	1-1/4"	1-5/16-12 UN	Steel	Trivalent Zinc
FS6400-20-16-O $7.75 ea.
FS6400-20-16-O-SS	1-1/4"	1-5/16-12 UN	Stainless Steel	-
FS6400-20-16-O-SS $88.73 ea.
FS6400-20-16-O-VITON	1-1/4"	1-5/16-12 UN	Steel	Trivalent Zinc
FS6400-20-16-O-VITON $9.42 ea.
FS6400-20-20-O	1-1/4"	1-5/8-12 UN	Steel	Trivalent Zinc
FS6400-20-20-O $9.07 ea.
FS6400-20-20-O-SS	1-1/4"	1-5/8-12 UN	Stainless Steel	-
FS6400-20-20-O-SS $84.03 ea.
FS6400-20-20-O-VITON	1-1/4"	1-5/8-12 UN	Steel	Trivalent Zinc
FS6400-20-20-O-VITON $10.83 ea.
FS6400-20-24-O	1-1/4"	1-7/8-12 UN	Steel	Trivalent Zinc
FS6400-20-24-O $25.29 ea.
FS6400-20-24-O-SS	1-1/4"	1-7/8-12 UN	Stainless Steel	-
FS6400-20-24-O-SS $57.11 ea.
FS6400-20-24-O-VITON	1-1/4"	1-7/8-12 UN	Steel	Trivalent Zinc
FS6400-20-24-O-VITON $25.87 ea.
FS6400-24-16-O	1-1/2"	1-5/16-12 UN	Steel	Trivalent Zinc
FS6400-24-16-O $28.15 ea.
FS6400-24-20-O	1-1/2"	1-5/8-12 UN	Steel	Trivalent Zinc
FS6400-24-20-O $22.88 ea.
FS6400-24-20-O-SS	1-1/2"	1-5/8-12 UN	Stainless Steel	-
FS6400-24-20-O-SS $86.38 ea.
FS6400-24-24-O	1-1/2"	1-7/8-12 UN	Steel	Trivalent Zinc
FS6400-24-24-O $12.84 ea.
FS6400-24-24-O-SS	1-1/2"	1-7/8-12 UN	Stainless Steel	-
FS6400-24-24-O-SS $162.94 ea.
FS6400-24-24-O-VITON	1-1/2"	1-7/8-12 UN	Steel	Trivalent Zinc
FS6400-24-24-O-VITON $13.54 ea.
FS6400-32-32-O	2"	2-1/2-12 UN	Steel	Trivalent Zinc
FS6400-32-32-O $34.61 ea.

Description

SAE J1453 O-Ring Face Seal Port Connector | Male ORFS x Male ORB

For connecting ORFS flanged tubes or lines to SAE port.

Additional information

Shape	Straight
Side 1 Connection Type	Male ORFS
Side 2 Connection Type	MetaobjectDrop
