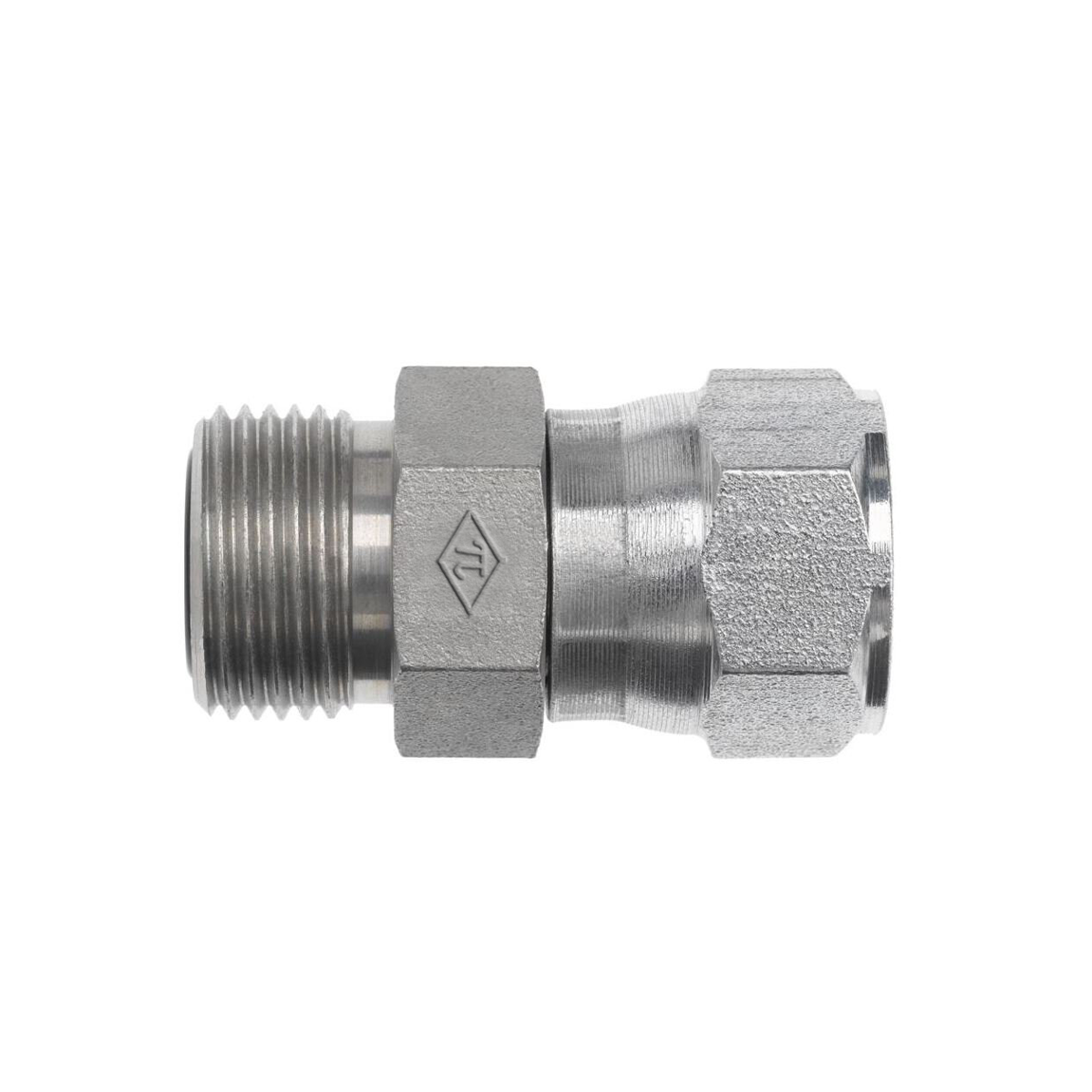

FS6402 Male ORFS x Female JIC Swivel
SAE J1453 O-Ring Face Seal 37° Flare Swivel Adapter | Male ORFS x Female JIC Swivel
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 TUBE OD | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| FS6402-04-04 | 1/4" | 1/4" | Steel | Trivalent Zinc |
| FS6402-06-06 | 3/8" | 3/8" | Steel | Trivalent Zinc |
| FS6402-06-06-SS | 3/8" | 3/8" | Stainless Steel | - |
| FS6402-08-08 | 1/2" | 1/2" | Steel | Trivalent Zinc |
| FS6402-10-10 | 5/8" | 5/8" | Steel | Trivalent Zinc |
| FS6402-12-12 | 3/4" | 3/4" | Steel | Trivalent Zinc |
| FS6402-16-16 | 1" | 1" | Steel | Trivalent Zinc |
| FS6402-20-20 | 1-1/4" | 1-1/4" | Steel | Trivalent Zinc |
| FS6402-24-24 | 1-1/2" | 1-1/2" | Steel | Trivalent Zinc |
Description
SAE J1453 O-Ring Face Seal 37° Flare Swivel Adapter | Male ORFS x Female JIC Swivel
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | MetaobjectDrop |
