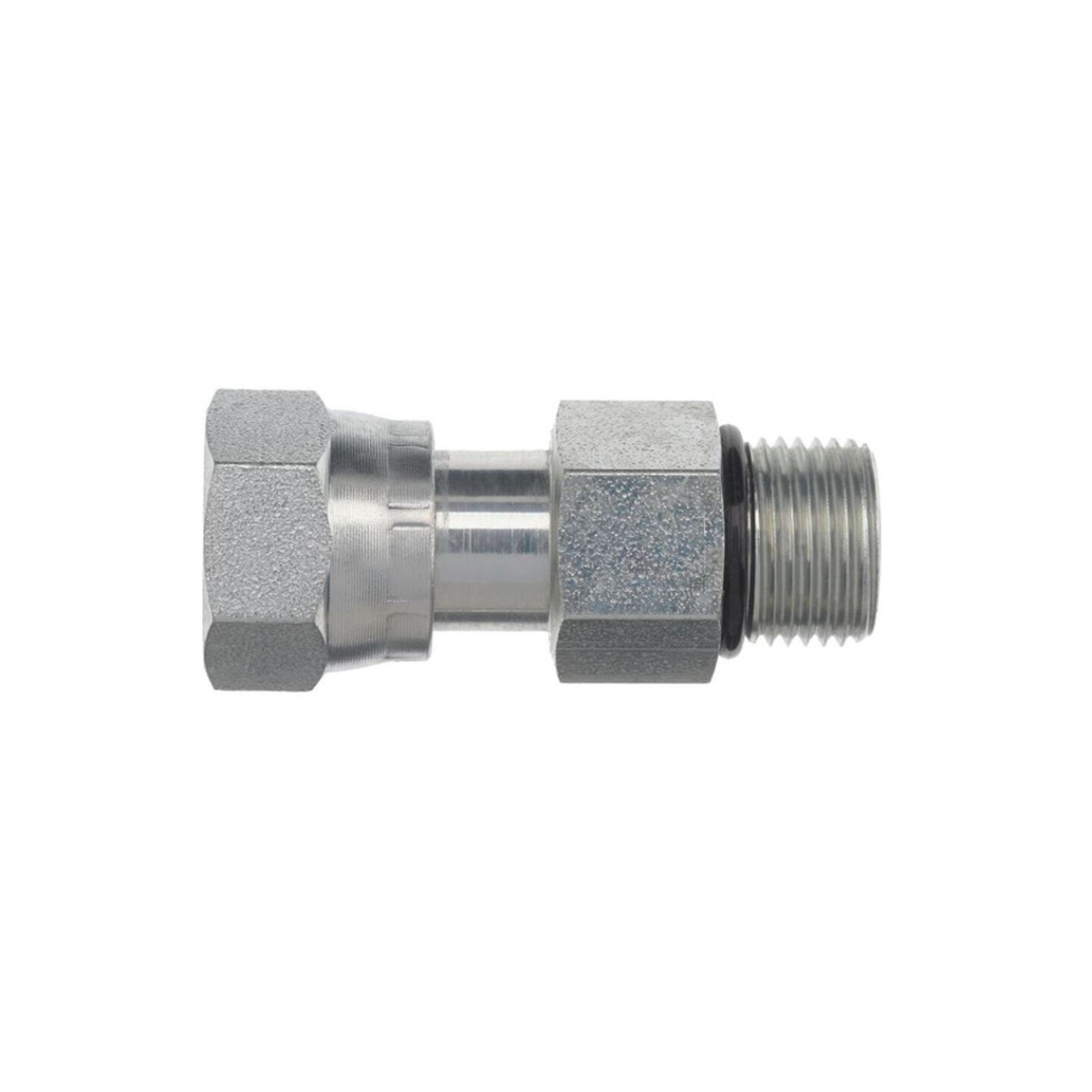

FS6540-O Female ORFS Swivel x Male ORB
SAE J1453 O-Ring Face Seal Swivel Port Connector | Female ORFS Swivel x Male ORB
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| FS6540-04-04-O | 1/4" | 7/16-20 UNF | Steel | Trivalent Zinc |
| FS6540-06-06-O | 3/8" | 9/16-18 UNF | Steel | Trivalent Zinc |
| FS6540-06-06-O-SS | 3/8" | 9/16-18 UNF | Stainless Steel | - |
| FS6540-06-08-O | 3/8" | 3/4-16 UNF | Steel | Trivalent Zinc |
| FS6540-08-06-O | 1/2" | 9/16-18 UNF | Steel | Trivalent Zinc |
| FS6540-08-08-O | 1/2" | 3/4-16 UNF | Steel | Trivalent Zinc |
| FS6540-08-08-O-SS | 1/2" | 3/4-16 UNF | Stainless Steel | - |
| FS6540-08-08-O-VITON | 1/2" | 3/4-16 UNF | Steel | Trivalent Zinc |
| FS6540-10-10-O | 5/8" | 7/8-14 UNF | Steel | Trivalent Zinc |
| FS6540-10-12-O | 5/8" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| FS6540-12-12-O | 3/4" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| FS6540-16-16-O | 1" | 1-5/16-12 UN | Steel | Trivalent Zinc |
| FS6540-16-16-O-SS | 1" | 1-5/16-12 UN | Stainless Steel | - |
| FS6540-20-20-O | 1-1/4" | 1-5/8-12 UN | Steel | Trivalent Zinc |
| FS6540-20-20-O-SS | 1-1/4" | 1-5/8-12 UN | Stainless Steel | - |
| FS6540-24-24-O | 1-1/2" | 1-7/8-12 UN | Steel | Trivalent Zinc |
Description
SAE J1453 O-Ring Face Seal Swivel Port Connector | Female ORFS Swivel x Male ORB
Additional information
| Shape | Straight |
| Side 1 Connection Type | Female ORFS Swivel |
| Side 2 Connection Type | MetaobjectDrop |
