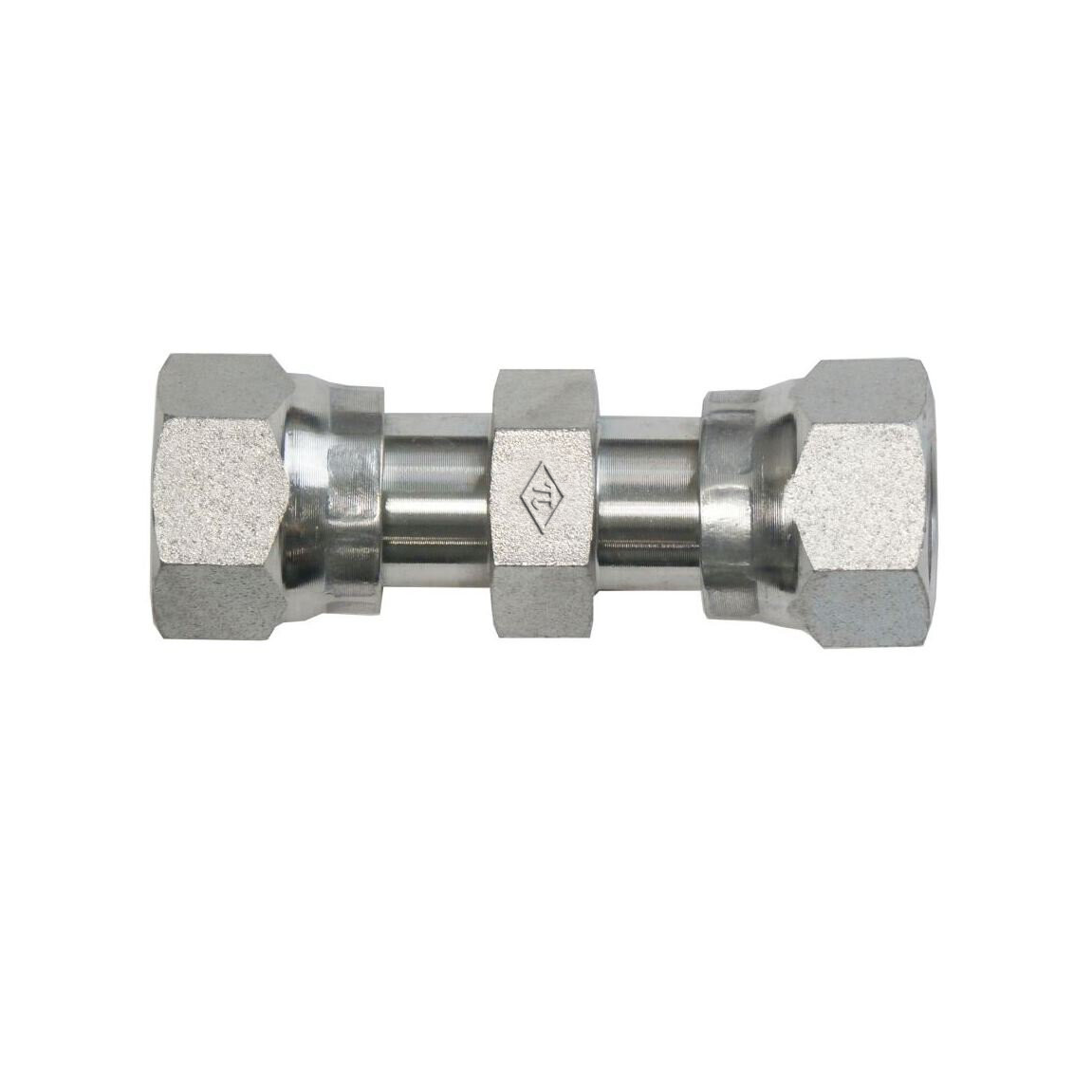

FS6565 Female ORFS Swivel x Female ORFS Swivel
SAE J1453 O-Ring Face Seal Swivel Union | Female ORFS Swivel x Female ORFS Swivel
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 TUBE OD | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| FS6565-04-04 | 1/4" | 1/4" | Steel | Trivalent Zinc |
| FS6565-06-06 | 3/8" | 3/8" | Steel | Trivalent Zinc |
| FS6565-08-08 | 1/2" | 1/2" | Steel | Trivalent Zinc |
| FS6565-10-10 | 5/8" | 5/8" | Steel | Trivalent Zinc |
| FS6565-12-12 | 3/4" | 3/4" | Steel | Trivalent Zinc |
| FS6565-16-16 | 1" | 1" | Steel | Trivalent Zinc |
| FS6565-20-20 | 1-1/4" | 1-1/4" | Steel | Trivalent Zinc |
| FS6565-24-24 | 1-1/2" | 1-1/2" | Steel | Trivalent Zinc |
Description
SAE J1453 O-Ring Face Seal Swivel Union | Female ORFS Swivel x Female ORFS Swivel
Additional information
| Shape | Straight |
| Side 1 Connection Type | Female ORFS Swivel |
| Side 2 Connection Type | MetaobjectDrop |
