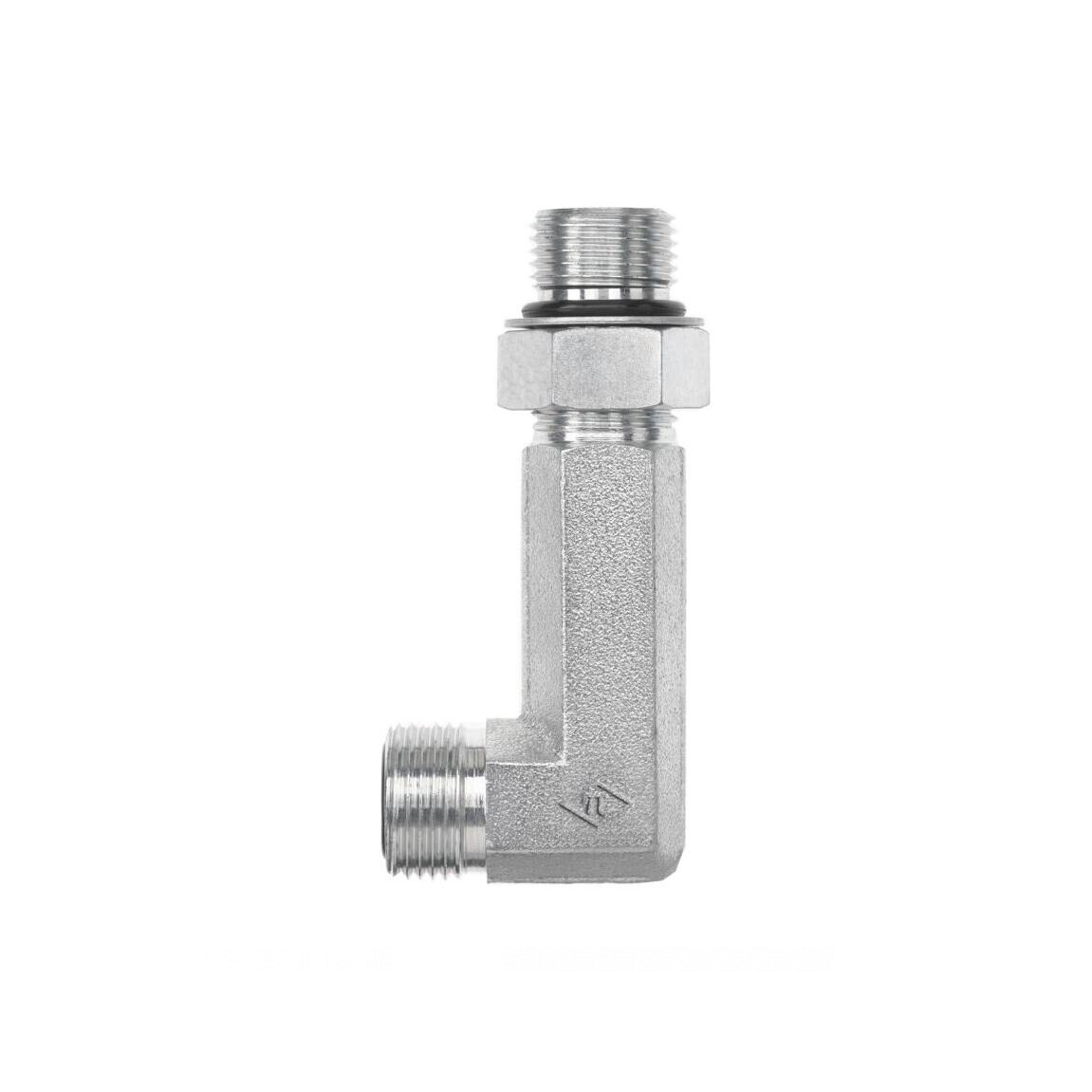

FS6801-LL-NWO-FG Male ORFS x Male Adjustable ORB
SAE J1453 O-Ring Face Seal 90° Extra Long Adjustable Port Elbow | Male ORFS x Male Adjustable ORB
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| FS6801-LL-06-06-NWO-FG | 3/8" | 9/16-18 UNF | Steel | Trivalent Zinc |
| FS6801-LL-08-08-NWO-FG | 1/2" | 3/4-16 UNF | Steel | Trivalent Zinc |
| FS6801-LL-12-12-NWO-FG | 3/4" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| FS6801-LL-16-16-NWO-FG | 1" | 1-5/16-12 UN | Steel | Trivalent Zinc |
Description
SAE J1453 O-Ring Face Seal 90° Extra Long Adjustable Port Elbow | Male ORFS x Male Adjustable ORB
Additional information
| Shape | 90°Elbow |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | MetaobjectDrop |
