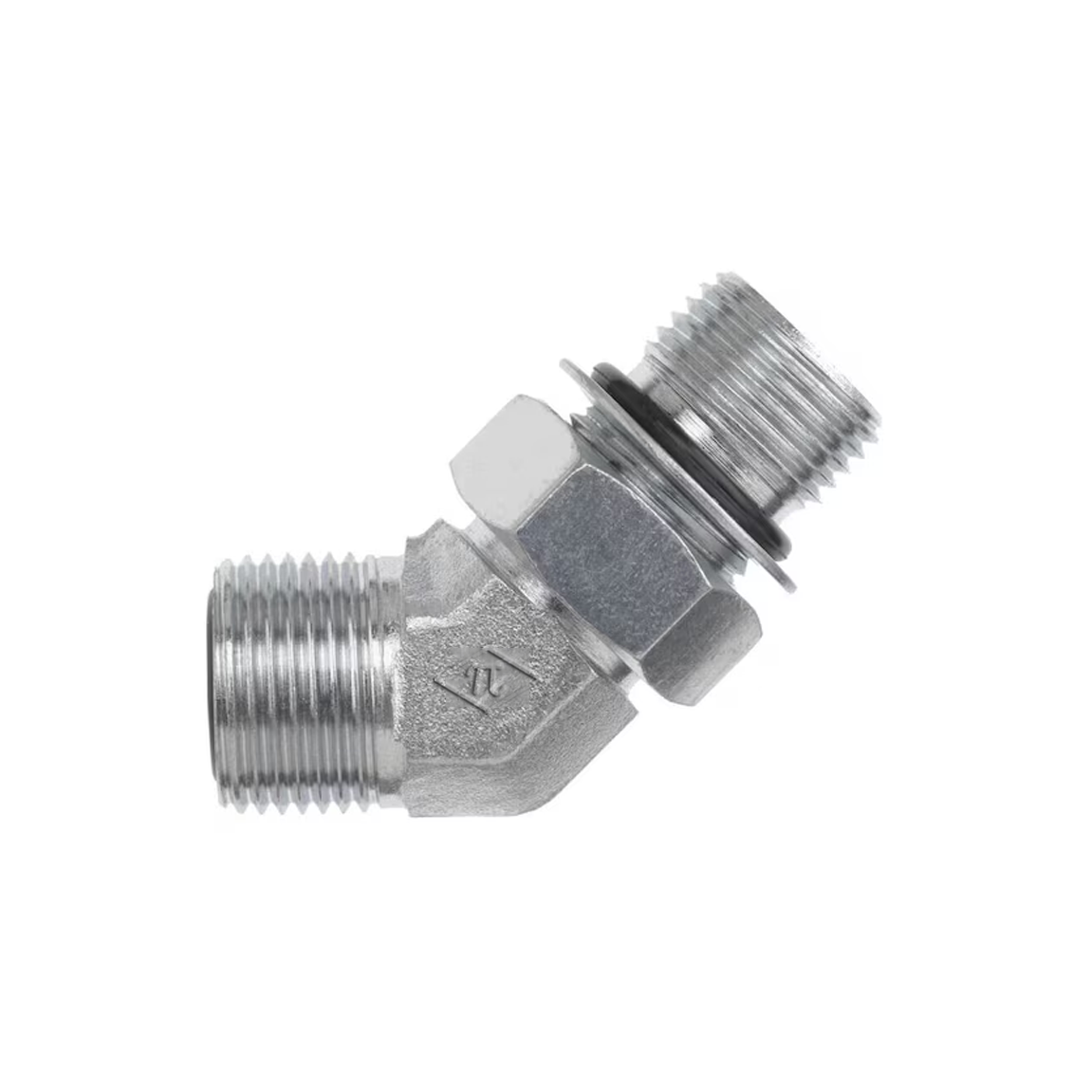

FS6802-NWO-FG Male ORFS x Male Adjustable ORB
SAE J1453 O-Ring Face Seal 45° Adjustable Port Elbow | Male ORFS x Male Adjustable ORB
For connecting ORFS flanged tubes or lines to SAE port at a 45° angle using an adjustable nut for alignment.
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| FS6802-04-04-NWO-FG | 1/4" | 7/16-20 UNF | Steel | Trivalent Zinc |
| FS6802-04-06-NWO-FG | 1/4" | 9/16-18 UNF | Steel | Trivalent Zinc |
| FS6802-04-08-NWO-FG | 1/4" | 3/4-16 UNF | Steel | Trivalent Zinc |
| FS6802-06-04-NWO-FG | 3/8" | 7/16-20 UNF | Steel | Trivalent Zinc |
| FS6802-06-06-NWO-FG | 3/8" | 9/16-18 UNF | Steel | Trivalent Zinc |
| FS6802-06-06-NWO-FG-VITON | 3/8" | 9/16-18 UNF | Steel | Trivalent Zinc |
| FS6802-06-06-NWO-SS | 3/8" | 9/16-18 UNF | Stainless Steel | - |
| FS6802-06-08-NWO-FG | 3/8" | 3/4-16 UNF | Steel | Trivalent Zinc |
| FS6802-06-08-NWO-SS | 3/8" | 3/4-16 UNF | Stainless Steel | - |
| FS6802-06-10-NWO-FG | 3/8" | 7/8-14 UNF | Steel | Trivalent Zinc |
| FS6802-06-12-NWO-FG | 3/8" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| FS6802-08-06-NWO-FG | 1/2" | 9/16-18 UNF | Steel | Trivalent Zinc |
| FS6802-08-08-NWO-FG | 1/2" | 3/4-16 UNF | Steel | Trivalent Zinc |
| FS6802-08-08-NWO-FG-VITON | 1/2" | 3/4-16 UNF | Steel | Trivalent Zinc |
| FS6802-08-10-NWO-FG | 1/2" | 7/8-14 UNF | Steel | Trivalent Zinc |
| FS6802-08-10-NWO-FG-VITON | 1/2" | 7/8-14 UNF | Steel | Trivalent Zinc |
| FS6802-08-12-NWO-FG | 1/2" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| FS6802-08-16-NWO-FG | 1/2" | 1-5/16-12 UN | Steel | Trivalent Zinc |
| FS6802-10-08-NWO-FG | 5/8" | 3/4-16 UNF | Steel | Trivalent Zinc |
| FS6802-10-08-NWO-FG-VITON | 5/8" | 3/4-16 UNF | Steel | Trivalent Zinc |
| FS6802-10-10-NWO-FG | 5/8" | 7/8-14 UNF | Steel | Trivalent Zinc |
| FS6802-10-10-NWO-FG-VITON | 5/8" | 7/8-14 UNF | Steel | Trivalent Zinc |
| FS6802-10-12-NWO-FG | 5/8" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| FS6802-12-08-NWO-FG | 3/4" | 3/4-16 UNF | Steel | Trivalent Zinc |
| FS6802-12-10-NWO-FG | 3/4" | 7/8-14 UNF | Steel | Trivalent Zinc |
| FS6802-12-12-NWO-FG | 3/4" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| FS6802-12-12-NWO-FG-VITON | 3/4" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| FS6802-12-12-NWO-SS | 3/4" | 1-1/16-12 UN | Stainless Steel | - |
| FS6802-12-16-NWO-FG | 3/4" | 1-5/16-12 UN | Steel | Trivalent Zinc |
| FS6802-12-16-NWO-FG-VITON | 3/4" | 1-5/16-12 UN | Steel | Trivalent Zinc |
| FS6802-16-12-NWO-FG | 1" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| FS6802-16-16-NWO-FG | 1" | 1-5/16-12 UN | Steel | Trivalent Zinc |
| FS6802-16-16-NWO-FG-VITON | 1" | 1-5/16-12 UN | Steel | Trivalent Zinc |
| FS6802-16-16-NWO-SS | 1" | 1-5/16-12 UN | Stainless Steel | - |
| FS6802-16-20-NWO-FG | 1" | 1-5/8-12 UN | Steel | Trivalent Zinc |
| FS6802-16-20-NWO-FG-VITON | 1" | 1-5/8-12 UN | Steel | Trivalent Zinc |
| FS6802-20-16-NWO-FG | 1-1/4" | 1-5/16-12 UN | Steel | Trivalent Zinc |
| FS6802-20-20-NWO-FG | 1-1/4" | 1-5/8-12 UN | Steel | Trivalent Zinc |
| FS6802-20-20-NWO-FG-VITON | 1-1/4" | 1-5/8-12 UN | Steel | Trivalent Zinc |
| FS6802-24-20-NWO-FG | 1-1/2" | 1-5/8-12 UN | Steel | Trivalent Zinc |
| FS6802-24-24-NWO-FG | 1-1/2" | 1-7/8-12 UN | Steel | Trivalent Zinc |
| FS6802-24-24-NWO-FG-VITON | 1-1/2" | 1-7/8-12 UN | Steel | Trivalent Zinc |
Description
SAE J1453 O-Ring Face Seal 45° Adjustable Port Elbow | Male ORFS x Male Adjustable ORB
For connecting ORFS flanged tubes or lines to SAE port at a 45° angle using an adjustable nut for alignment.
Additional information
| Shape | 45° Elbow |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | MetaobjectDrop |
