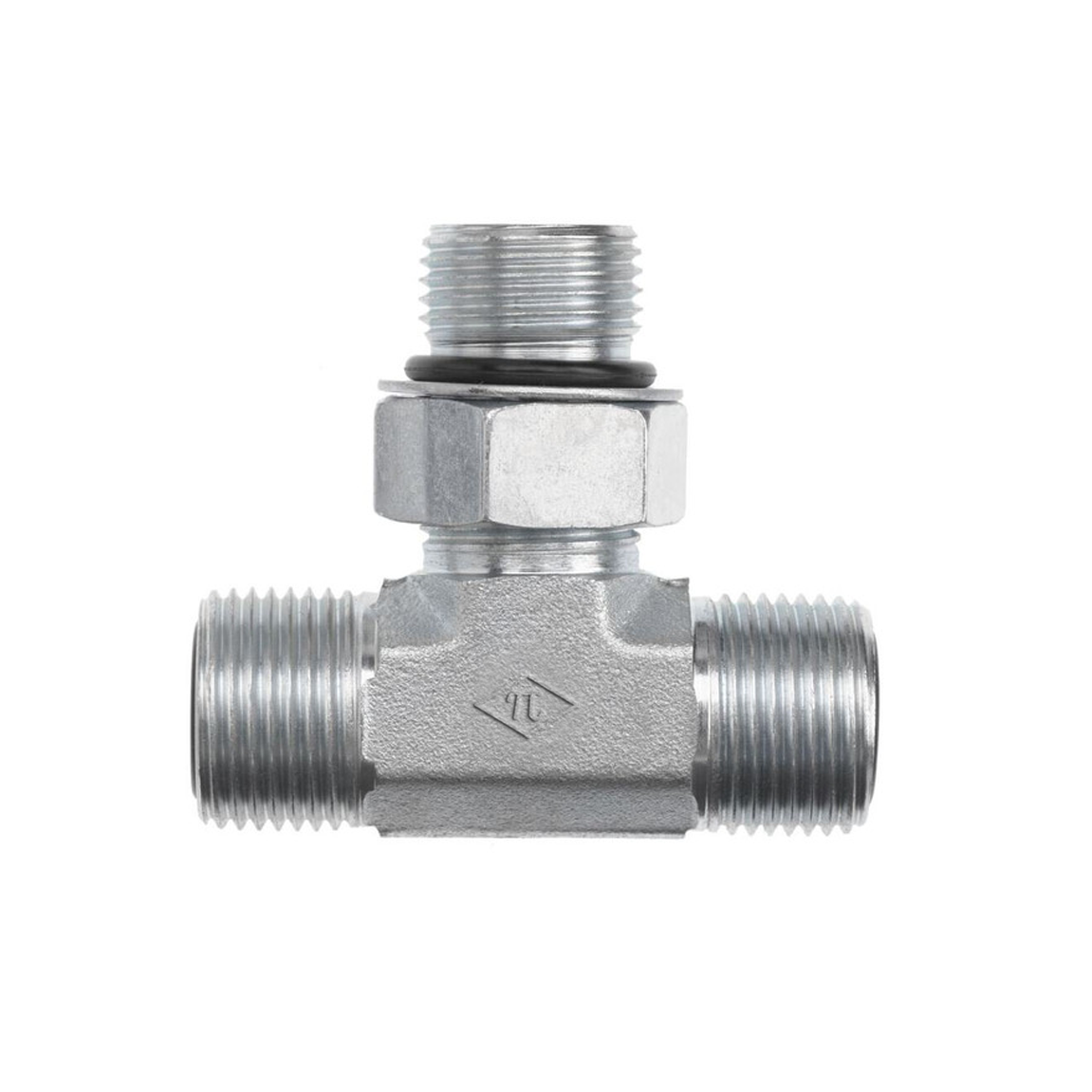

FS6803-NWO-FG Male ORFS x Male ORFS x MaleAdjustable ORB
SAE J1453 O-Ring Face Seal Adjustable Port Branch Tee | Male ORFS x Male ORFS x Male Adjustable ORB
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 TUBE OD | SIDE 3 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|---|
| FS6803-04-04-04-NWO-FG | 1/4" | 1/4" | 7/16-20 UNF | Steel | Trivalent Zinc |
| FS6803-04-04-06-NWO-FG | 1/4" | 1/4" | 9/16-18 UNF | Steel | Trivalent Zinc |
| FS6803-06-06-04-NWO-FG | 3/8" | 3/8" | 7/16-20 UNF | Steel | Trivalent Zinc |
| FS6803-06-06-06-NWO-FG | 3/8" | 3/8" | 9/16-18 UNF | Steel | Trivalent Zinc |
| FS6803-06-06-08-NWO-FG | 3/8" | 3/8" | 3/4-16 UNF | Steel | Trivalent Zinc |
| FS6803-08-08-06-NWO-FG | 1/2" | 1/2" | 9/16-18 UNF | Steel | Trivalent Zinc |
| FS6803-08-08-08-NWO-FG | 1/2" | 1/2" | 3/4-16 UNF | Steel | Trivalent Zinc |
| FS6803-08-08-08-NWO-FG-VITON | 1/2" | 1/2" | 3/4-16 UNF | Steel | Trivalent Zinc |
| FS6803-08-08-10-NWO-FG | 1/2" | 1/2" | 7/8-14 UNF | Steel | Trivalent Zinc |
| FS6803-08-08-12-NWO-FG | 1/2" | 1/2" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| FS6803-10-10-10-NWO-FG | 5/8" | 5/8" | 7/8-14 UNF | Steel | Trivalent Zinc |
| FS6803-10-16-10-NWO-FG | 5/8" | 1" | 7/8-14 UNF | Steel | Trivalent Zinc |
| FS6803-12-12-10-NWO-FG | 3/4" | 3/4" | 7/8-14 UNF | Steel | Trivalent Zinc |
| FS6803-12-12-12-NWO-FG | 3/4" | 3/4" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| FS6803-12-12-12-NWO-FG-VITON | 3/4" | 3/4" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| FS6803-12-12-16-NWO-FG | 3/4" | 3/4" | 1-5/16-12 UN | Steel | Trivalent Zinc |
| FS6803-16-16-16-NWO-FG | 1" | 1" | 1-5/16-12 UN | Steel | Trivalent Zinc |
| FS6803-16-16-16-NWO-FG-VITON | 1" | 1" | 1-5/16-12 UN | Steel | Trivalent Zinc |
| FS6803-16-16-16-NWO-SS | 1" | 1" | 1-5/16-12 UN | Stainless Steel | - |
| FS6803-20-20-20-NWO-FG | 1-1/4" | 1-1/4" | 1-5/8-12 UN | Steel | Trivalent Zinc |
| FS6803-24-24-24-NWO-FG | - | - | - | Steel | Trivalent Zinc |
Description
SAE J1453 O-Ring Face Seal Adjustable Port Branch Tee | Male ORFS x Male ORFS x Male Adjustable ORB
Additional information
| Shape | Tee |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | MetaobjectDrop |
| Side 3 Connection Type | MetaobjectDrop |
