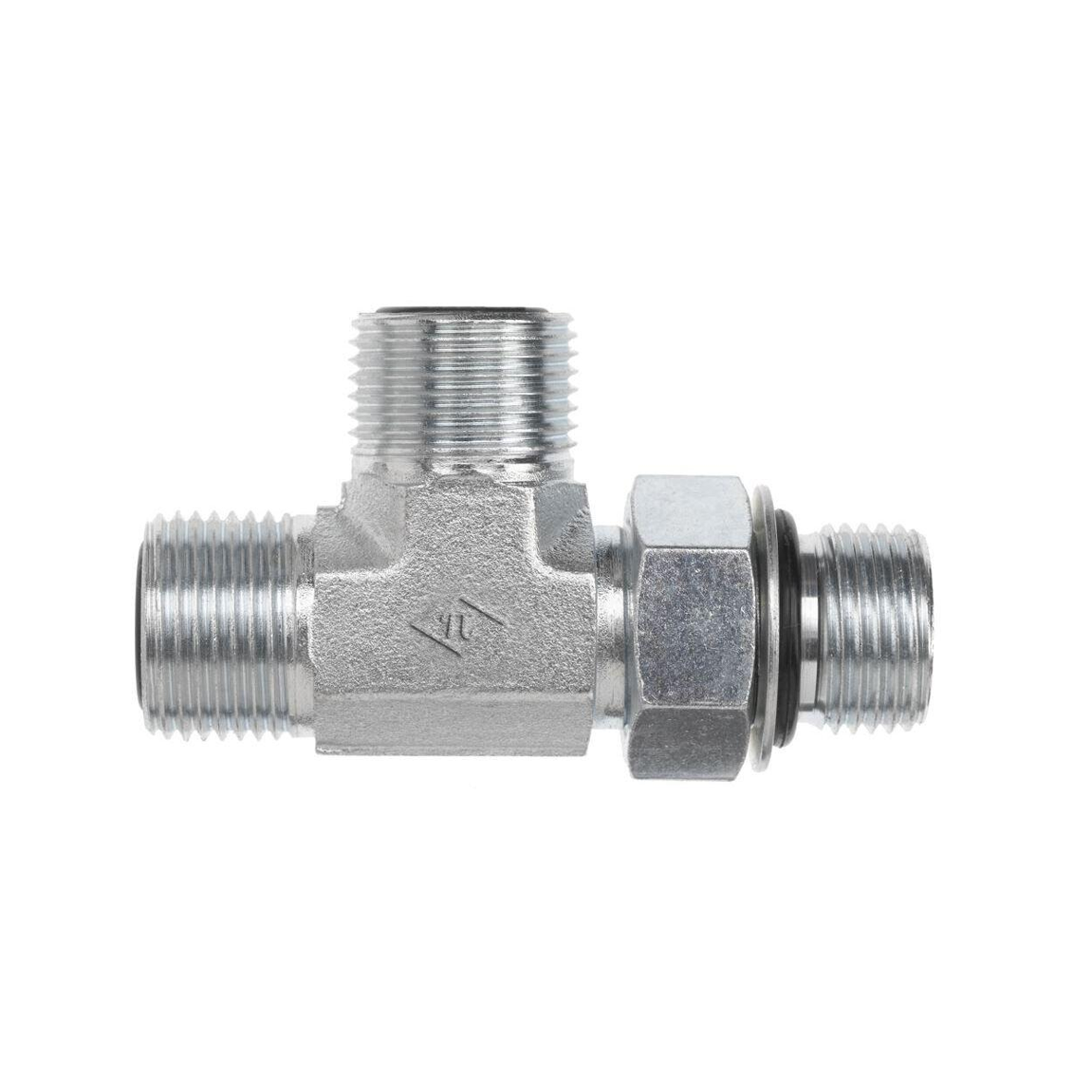

FS6804-NWO-FG Male ORFS x Male Adjustable ORB x Male ORFS
SAE J1453 O-Ring Face Seal Adjustable Port Run Tee | Male ORFS x Male Adjustable ORB x Male ORFS
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 THREAD TYPE | SIDE 3 TUBE OD | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|---|
| FS6804-04-04-04-NWO-FG | 1/4" | 7/16-20 UNF | 1/4" | Steel | Trivalent Zinc |
| FS6804-04-04-04-NWO-SS | 1/4" | 7/16-20 UNF | 1/4" | Stainless Steel | - |
| FS6804-04-06-04-NWO-FG | 1/4" | 9/16-18 UNF | 1/4" | Steel | Trivalent Zinc |
| FS6804-04-08-04-NWO-FG | 1/4" | 3/4-16 UNF | 1/4" | Steel | Trivalent Zinc |
| FS6804-06-04-06-NWO-FG | 3/8" | 7/16-20 UNF | 3/8" | Steel | Trivalent Zinc |
| FS6804-06-06-06-NWO-FG | 3/8" | 9/16-18 UNF | 3/8" | Steel | Trivalent Zinc |
| FS6804-06-06-06-NWO-SS | 3/8" | 9/16-18 UNF | 3/8" | Stainless Steel | - |
| FS6804-06-08-06-NWO-FG | 3/8" | 3/4-16 UNF | 3/8" | Steel | Trivalent Zinc |
| FS6804-08-06-08-NWO-FG | 1/2" | 9/16-18 UNF | 1/2" | Steel | Trivalent Zinc |
| FS6804-08-08-04-NWO-FG | 1/2" | 3/4-16 UNF | 1/4" | Steel | Trivalent Zinc |
| FS6804-08-08-08-NWO-FG | 1/2" | 3/4-16 UNF | 1/2" | Steel | Trivalent Zinc |
| FS6804-08-08-08-NWO-FG-VITON | 1/2" | 3/4-16 UNF | 1/2" | Steel | Trivalent Zinc |
| FS6804-08-08-08-NWO-SS | 1/2" | 3/4-16 UNF | 1/2" | Stainless Steel | - |
| FS6804-08-10-08-NWO-FG | 1/2" | 7/8-14 UNF | 1/2" | Steel | Trivalent Zinc |
| FS6804-08-12-04-NWO-FG | 1/2" | 1-1/16-12 UN | 1/4" | Steel | Trivalent Zinc |
| FS6804-08-12-08-NWO-FG | 1/2" | 1-1/16-12 UN | 1/2" | Steel | Trivalent Zinc |
| FS6804-10-10-06-NWO-FG | 5/8" | 7/8-14 UNF | 3/8" | Steel | Trivalent Zinc |
| FS6804-10-10-10-NWO-FG | 5/8" | 7/8-14 UNF | 5/8" | Steel | Trivalent Zinc |
| FS6804-10-10-10-NWO-FG-VITON | 5/8" | 7/8-14 UNF | 5/8" | Steel | Trivalent Zinc |
| FS6804-10-12-10-NWO-FG | 5/8" | 1-1/16-12 UN | 5/8" | Steel | Trivalent Zinc |
| FS6804-10-12-10-NWO-FG-VITON | 5/8" | 7/8-14 UNF | 5/8" | Steel | Trivalent Zinc |
| FS6804-10-12-12-NWO-FG | 5/8" | 1-1/16-12 UN | 3/4" | Steel | Trivalent Zinc |
| FS6804-12-08-12-NWO-FG | 3/4" | 3/4-16 UNF | 3/4" | Steel | Trivalent Zinc |
| FS6804-12-10-12-NWO-FG | 3/4" | 7/8-14 UNF | 3/4" | Steel | Trivalent Zinc |
| FS6804-12-12-08-NWO-FG | 3/4" | 1-1/16-12 UN | 1/2" | Steel | Trivalent Zinc |
| FS6804-12-12-12-NWO-FG | 3/4" | 1-1/16-12 UN | 3/4" | Steel | Trivalent Zinc |
| FS6804-12-12-12-NWO-FG-VITON | 3/4" | 1-1/16-12 UN | 3/4" | Steel | Trivalent Zinc |
| FS6804-12-16-12-NWO-FG | 3/4" | 1-5/16-12 UN | 3/4" | Steel | Trivalent Zinc |
| FS6804-12-16-12-NWO-FG-VITON | 3/4" | 1-5/16-12 UN | 3/4" | Steel | Trivalent Zinc |
| FS6804-16-12-12-NWO-FG | 1" | 1-1/16-12 UN | 3/4" | Steel | Trivalent Zinc |
| FS6804-16-12-16-NWO-FG | 1" | 1-1/16-12 UN | 1" | Steel | Trivalent Zinc |
| FS6804-16-16-16-NWO-FG | 1" | 1-5/16-12 UN | 1" | Steel | Trivalent Zinc |
| FS6804-16-16-16-NWO-FG-VITON | 1" | 1-5/16-12 UN | 1" | Steel | Trivalent Zinc |
| FS6804-16-20-12-NWO-FG | 1" | 1-5/8-12 UN | 3/4" | Steel | Trivalent Zinc |
| FS6804-16-20-16-NWO-FG | 1" | 1-5/8-12 UN | 1" | Steel | Trivalent Zinc |
| FS6804-20-20-20-NWO-FG | 1-1/4" | 1-5/8-12 UN | 1-1/4" | Steel | Trivalent Zinc |
| FS6804-24-24-24-NWO-FG | 1-1/2" | 1-7/8-12 UN | 1-1/2" | Steel | Trivalent Zinc |
| FS6804-24-24-24-NWO-FG-VITON | 1-1/2" | 1-7/8-12 UN | 1-1/2" | Steel | Trivalent Zinc |
Description
SAE J1453 O-Ring Face Seal Adjustable Port Run Tee | Male ORFS x Male Adjustable ORB x Male ORFS
Additional information
| Shape | Tee |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | MetaobjectDrop |
| Side 3 Connection Type | MetaobjectDrop |
