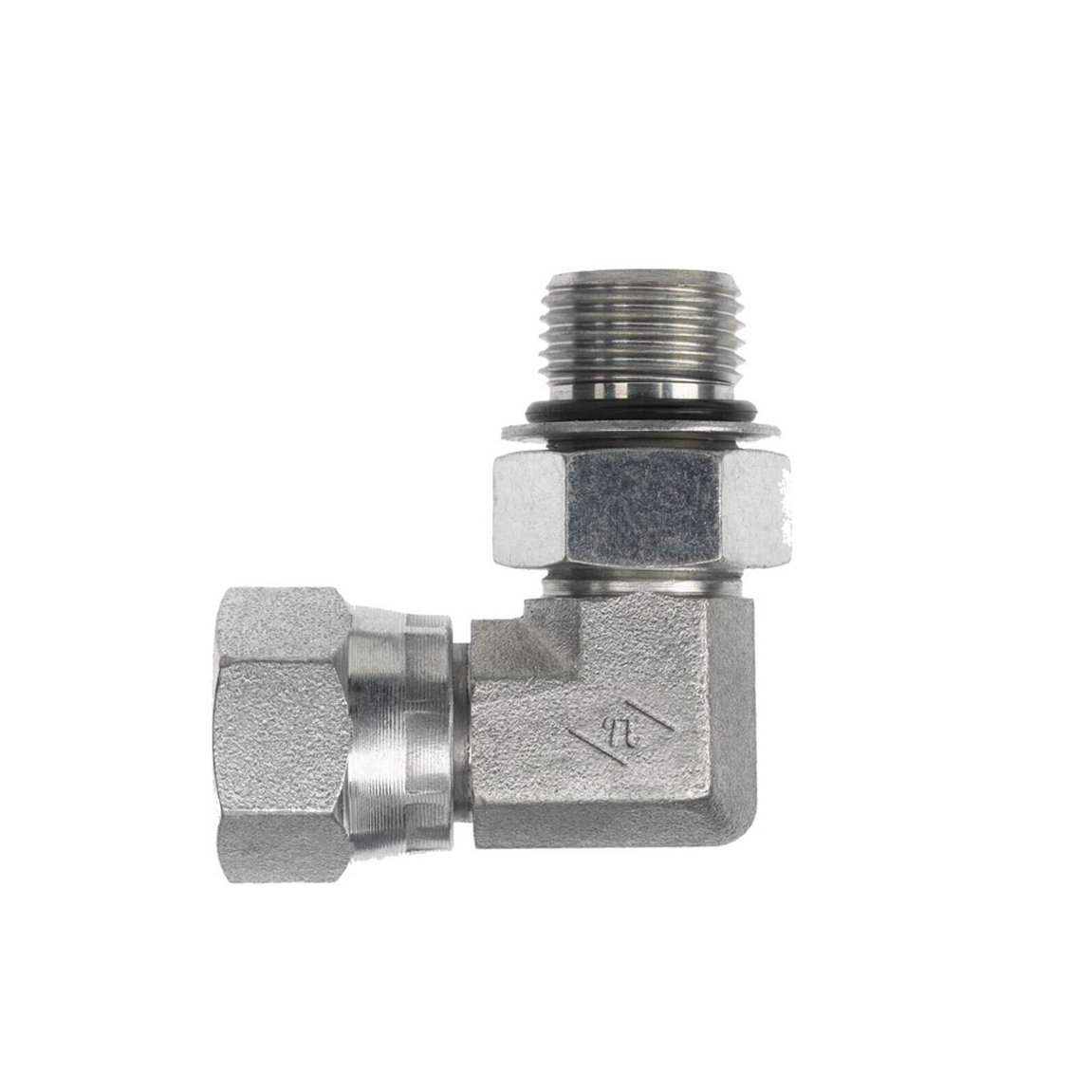

FS6809-NWO-FG Male Adjustable ORB x Female ORFS Swivel
SAE J1453 O-Ring Face Seal Swivel 90° Adjustable Port Elbow | Male Adjustable ORB x Female ORFS Swivel
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| FS6809-04-04-NWO-FG | 1/4" | 7/16-20 UNF | Steel | Trivalent Zinc |
| FS6809-06-06-NWO-FG | 3/8" | 9/16-18 UNF | Steel | Trivalent Zinc |
| FS6809-06-06-NWO-SS | 3/8" | 9/16-18 UNF | Stainless Steel | - |
| FS6809-08-08-NWO-FG | 1/2" | 3/4-16 UNF | Steel | Trivalent Zinc |
| FS6809-10-10-NWO-FG | 5/8" | 7/8-14 UNF | Steel | Trivalent Zinc |
| FS6809-12-12-NWO-FG | 3/4" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| FS6809-12-12-NWO-FG-VITON | 3/4" | 1-1/16-12 UN | Steel | Trivalent Zinc |
| FS6809-16-16-NWO-FG | 1" | 1-5/16-12 UN | Steel | Trivalent Zinc |
| FS6809-16-16-NWO-FG-VITON | 1" | 1-5/16-12 UN | Steel | Trivalent Zinc |
| FS6809-16-16-NWO-SS | 1" | 1-5/16-12 UN | Stainless Steel | - |
| FS6809-20-20-NWO-FG | 1-1/4" | 1-5/8-12 UN | Steel | Trivalent Zinc |
| FS6809-24-24-NWO-FG | 1-1/2" | 1-7/8-12 UN | Steel | Trivalent Zinc |
Description
SAE J1453 O-Ring Face Seal Swivel 90° Adjustable Port Elbow | Male Adjustable ORB x Female ORFS Swivel
Additional information
| Shape | 90°Elbow |
| Side 1 Connection Type | Female ORFS Swivel |
| Side 2 Connection Type | MetaobjectDrop |
