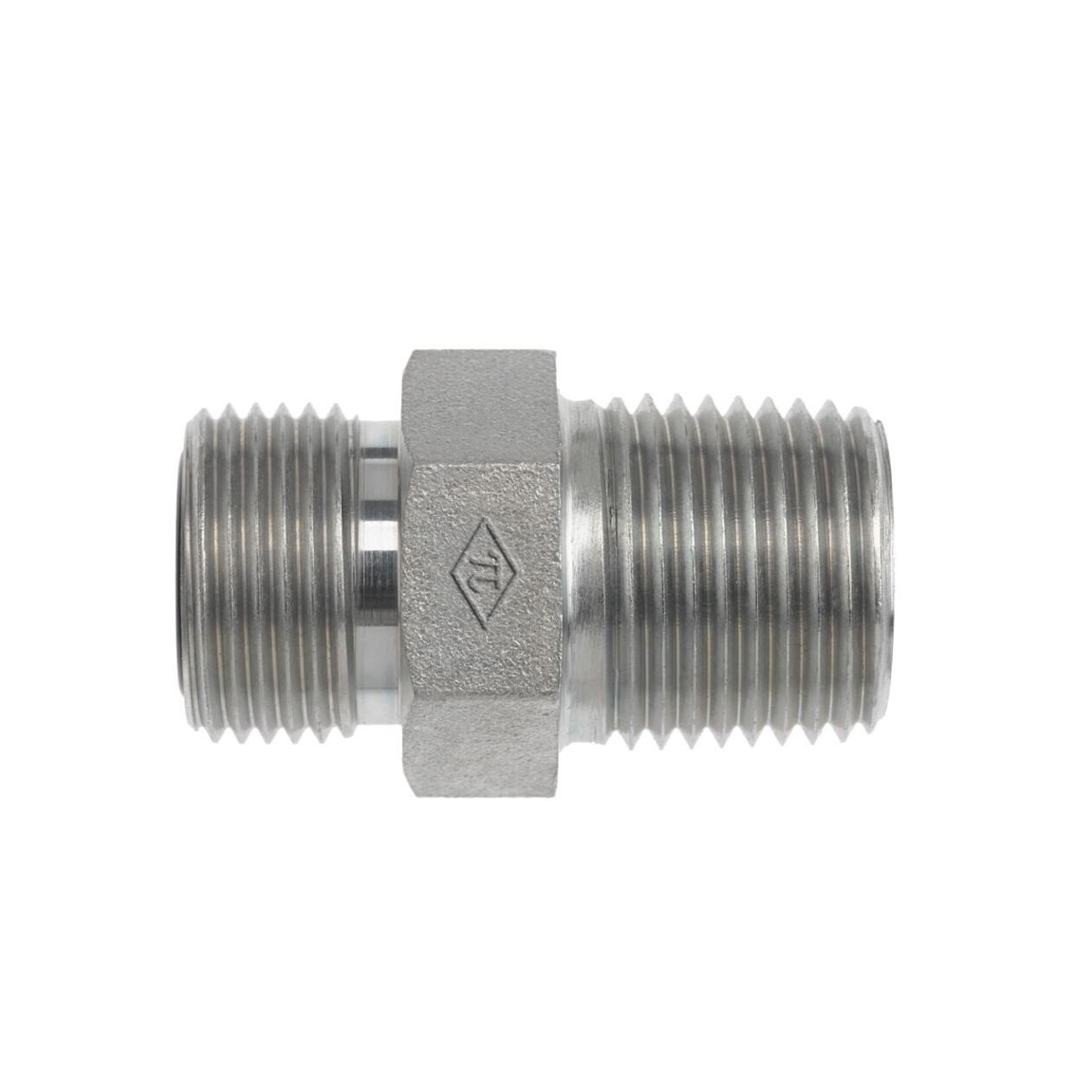

FS7000 Male ORFS x Male BSPT
SAE J1453 O-Ring Face Seal Male BSPT Connector | Male ORFS x Male BSPT
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 PIPE SIZE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| FS7000-04-04 | 1/4" | 1/4" | Steel | Trivalent Zinc |
| FS7000-04-04-SS | 1/4" | 1/4" | Stainless Steel | - |
| FS7000-06-02 | 3/8" | 1/8" | Steel | Trivalent Zinc |
| FS7000-06-06 | 3/8" | 3/8" | Steel | Trivalent Zinc |
| FS7000-08-08 | 1/2" | 1/2" | Steel | Trivalent Zinc |
| FS7000-12-12 | 3/4" | 3/4" | Steel | Trivalent Zinc |
| FS7000-16-16 | 1" | 1" | Steel | Trivalent Zinc |
| FS7000-20-20 | 1-1/4" | 1-1/4" | Steel | Trivalent Zinc |
| FS7000-24-24 | 1-1/2" | 1-1/2" | Steel | Trivalent Zinc |
Description
SAE J1453 O-Ring Face Seal Male BSPT Connector | Male ORFS x Male BSPT
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | MetaobjectDrop |
