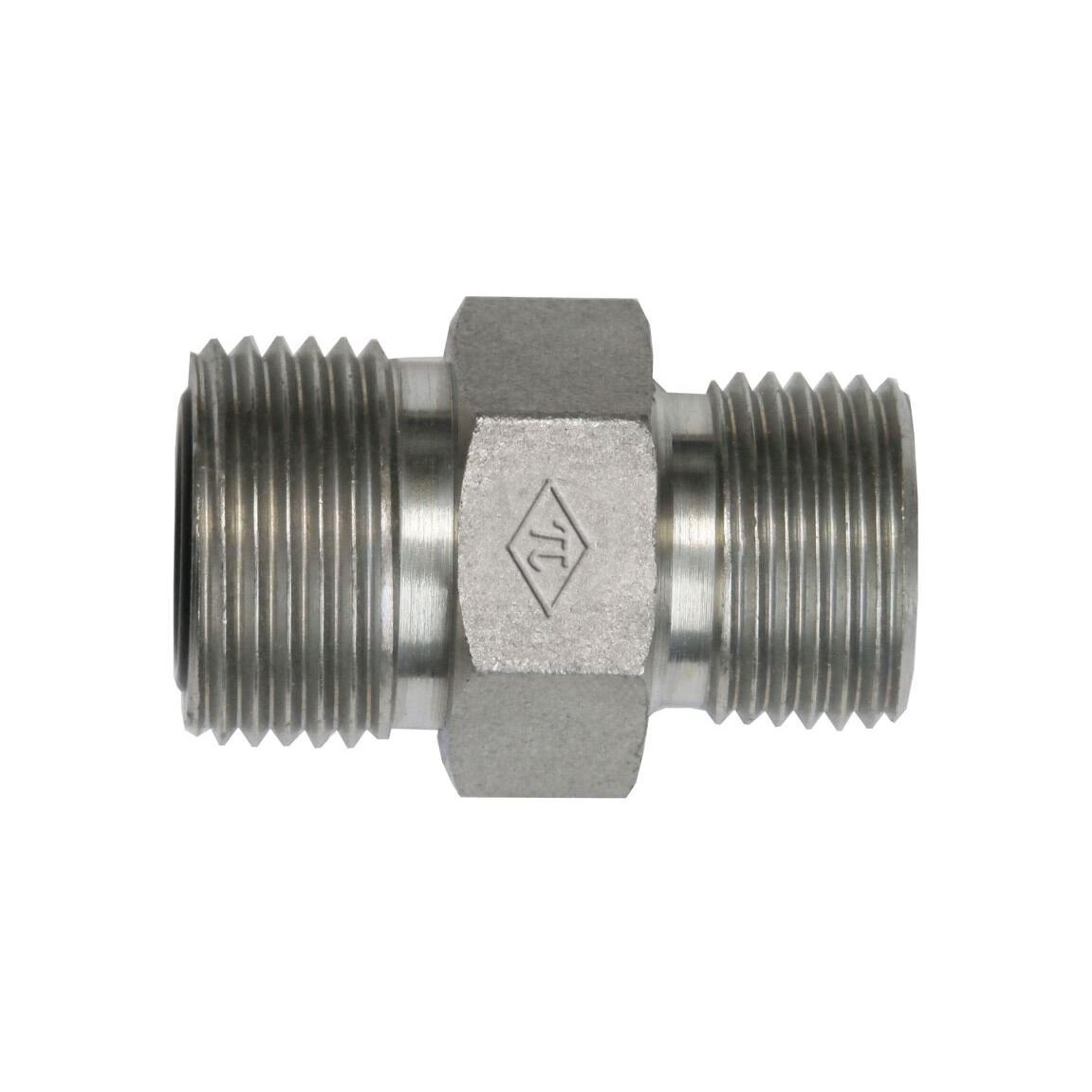

FS7005 Male ORFS x Male Metric
SAE J1453 O-Ring Face Seal Male Metric Port/Line Connector | Male ORFS x Male Metric
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| FS7005-04-10 | 1/4" | M10X1.0 | Steel | Trivalent Zinc |
| FS7005-04-12 | 1/4" | M12X1.5 | Steel | Trivalent Zinc |
| FS7005-04-14 | 1/4" | M14X1.5 | Steel | Trivalent Zinc |
| FS7005-06-14 | 3/8" | M14X1.5 | Steel | Trivalent Zinc |
| FS7005-06-14-SS | 3/8" | M14X1.5 | Stainless Steel | - |
| FS7005-06-16 | 3/8" | M16X1.5 | Steel | Trivalent Zinc |
| FS7005-06-22 | 3/8" | M22X1.5 | Steel | Trivalent Zinc |
| FS7005-08-14-SS | 1/2" | M14X1.5 | Stainless Steel | - |
| FS7005-08-18 | 1/2" | M18X1.5 | Steel | Trivalent Zinc |
| FS7005-10-22 | 5/8" | M22X1.5 | Steel | Trivalent Zinc |
| FS7005-12-24 | 3/4" | M24X1.5 | Steel | Trivalent Zinc |
| FS7005-12-26 | 3/4" | M26X1.5 | Steel | Trivalent Zinc |
| FS7005-12-27 | 3/4" | M27X2.0 | Steel | Trivalent Zinc |
| FS7005-16-33 | 1" | M33X2.0 | Steel | Trivalent Zinc |
Description
SAE J1453 O-Ring Face Seal Male Metric Port/Line Connector | Male ORFS x Male Metric
Additional information
| Shape | Straight |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | MetaobjectDrop |
