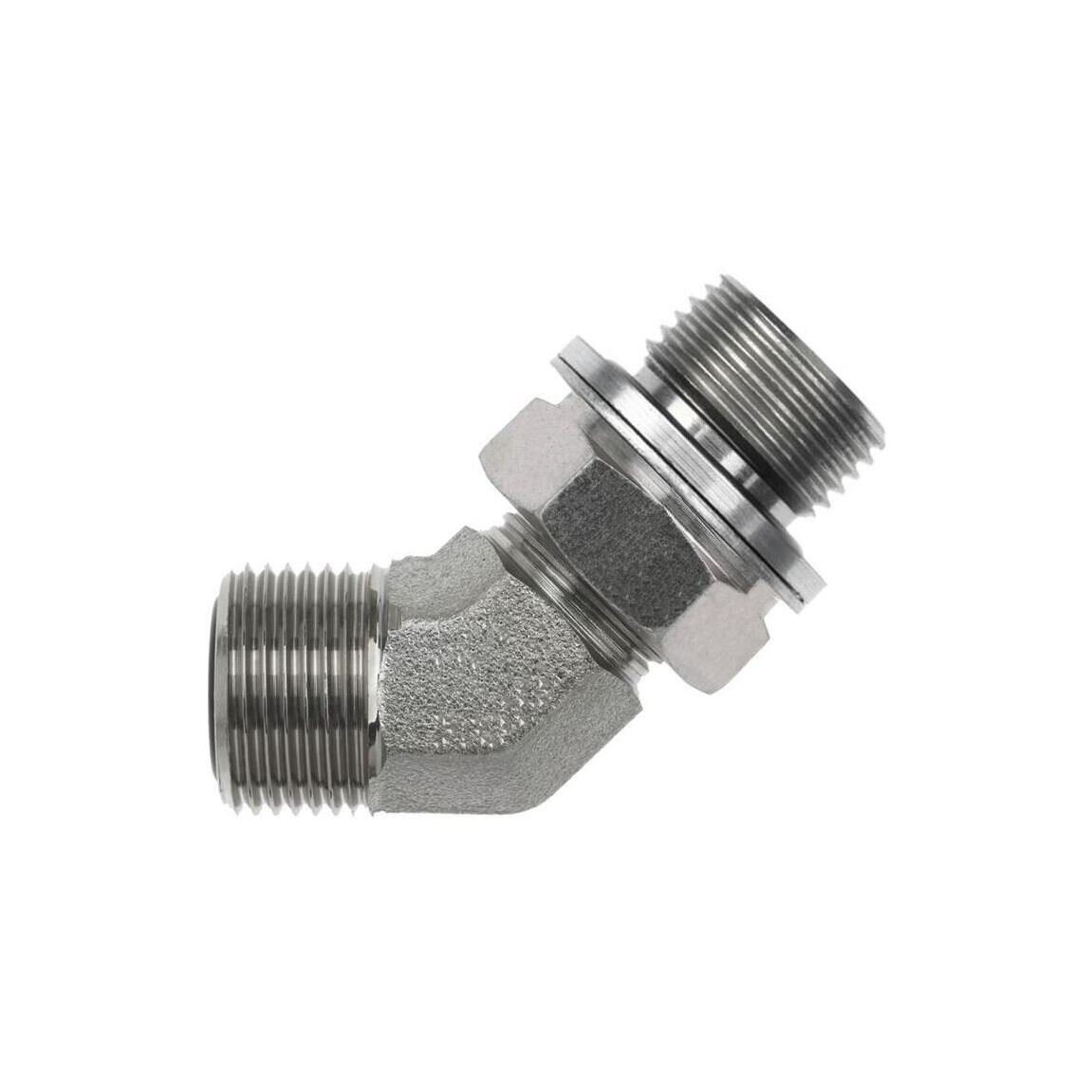

FS7102-NWO-FG-ORR Male ORFS x Male BSPPAdjustable ORR
SAE J1453 O-Ring Face Seal Male BSPP Adjustable (Type H) Port 45° Elbow | Male ORFS x Male BSPP Adjustable ORR
Connection Details
| PART NUMBER ↑ | SIDE 1 TUBE OD | SIDE 2 THREAD TYPE | PRIMARY MATERIAL | PLATING |
|---|---|---|---|---|
| FS7102-04-02-NWO-FG | 1/4" | G - 1/8-28 | Steel | Trivalent Zinc |
| FS7102-04-04-NWO-FG | 1/4" | G - 1/4-19 | Steel | Trivalent Zinc |
| FS7102-06-04-NWO-FG | 3/8" | G - 1/4-19 | Steel | Trivalent Zinc |
| FS7102-06-06-NWO-FG | 3/8" | G - 3/8-19 | Steel | Trivalent Zinc |
| FS7102-06-08-NWO-FG | 3/8" | G - 1/2-14 | Steel | Trivalent Zinc |
| FS7102-08-06-NWO-FG | 1/2" | G - 3/8-19 | Steel | Trivalent Zinc |
| FS7102-08-08-NWO-FG | 1/2" | G - 1/2-14 | Steel | Trivalent Zinc |
| FS7102-10-08-NWO-FG | 5/8" | G - 1/2-14 | Steel | Trivalent Zinc |
| FS7102-10-10-NWO-FG | 5/8" | G - 5/8-14 | Steel | Trivalent Zinc |
| FS7102-10-12-NWO-FG | 5/8" | G - 3/4-14 | Steel | Trivalent Zinc |
| FS7102-12-12-NWO-FG | 3/4" | G - 3/4-14 | Steel | Trivalent Zinc |
| FS7102-12-16-NWO-FG | 3/4" | G - 1-11 | Steel | Trivalent Zinc |
| FS7102-16-12-NWO-FG | 1" | G - 3/4-14 | Steel | Trivalent Zinc |
| FS7102-16-16-NWO-FG | 1" | G - 1-11 | Steel | Trivalent Zinc |
| FS7102-20-20-NWO-FG | 1-1/4" | G - 1-1/4-11 | Steel | Trivalent Zinc |
Description
SAE J1453 O-Ring Face Seal Male BSPP Adjustable (Type H) Port 45° Elbow | Male ORFS x Male BSPP Adjustable ORR
Additional information
| Shape | 45° Elbow |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | MetaobjectDrop |
